Oil Pressure Switch: Removal

1. Remove generator from bracket. GENERATOR .
2. Disconnect terminal from oil pressure switch.

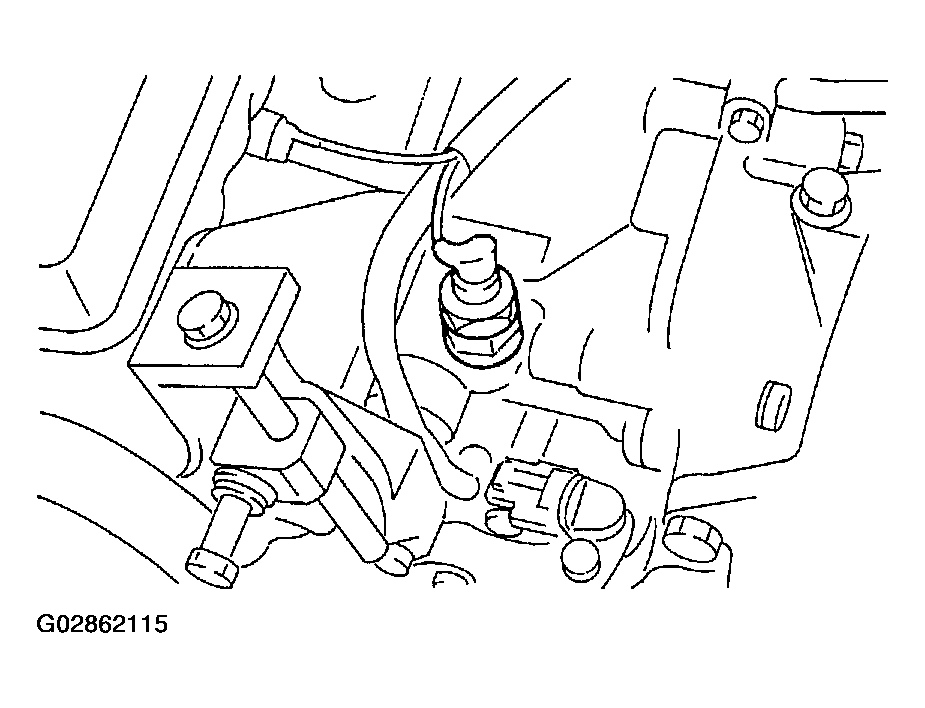

   Fig 1: Disconnecting Terminal From Oil Pressure Switch

   Courtesy of SUBARU OF AMERICA, INC.
3. Remove oil pressure switch.

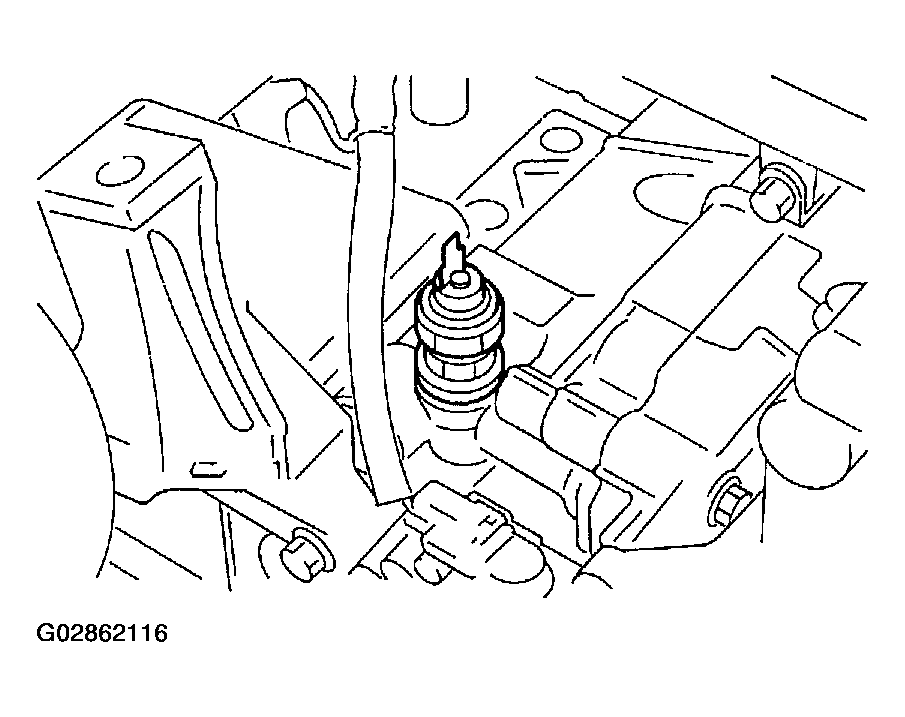

Fig 2: Removing Oil Pressure Switch

Courtesy of SUBARU OF AMERICA, INC.
