Air Cleaner: Removal

  1. Remove bolts (A) which secure air cleaner case to stays.

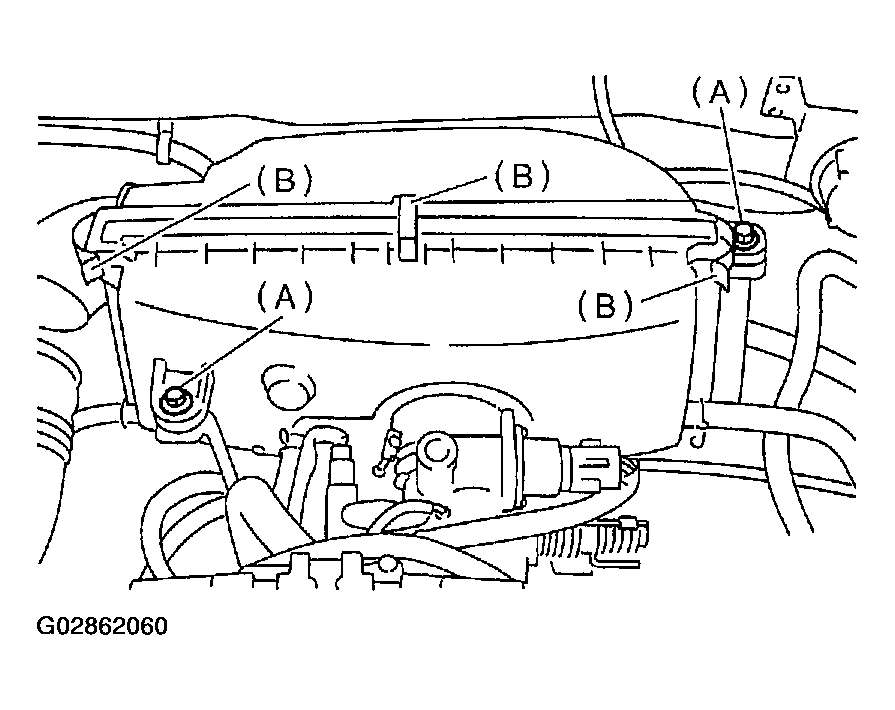

    Fig 1: Removing Air Cleaner Case Bolts
    G02862060Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the clips (B) above the air cleaner case.
  3. Remove air cleaner element.
