Air Intake Duct: Removal

  1. Remove bolts which secure air intake duct on the front side of body.

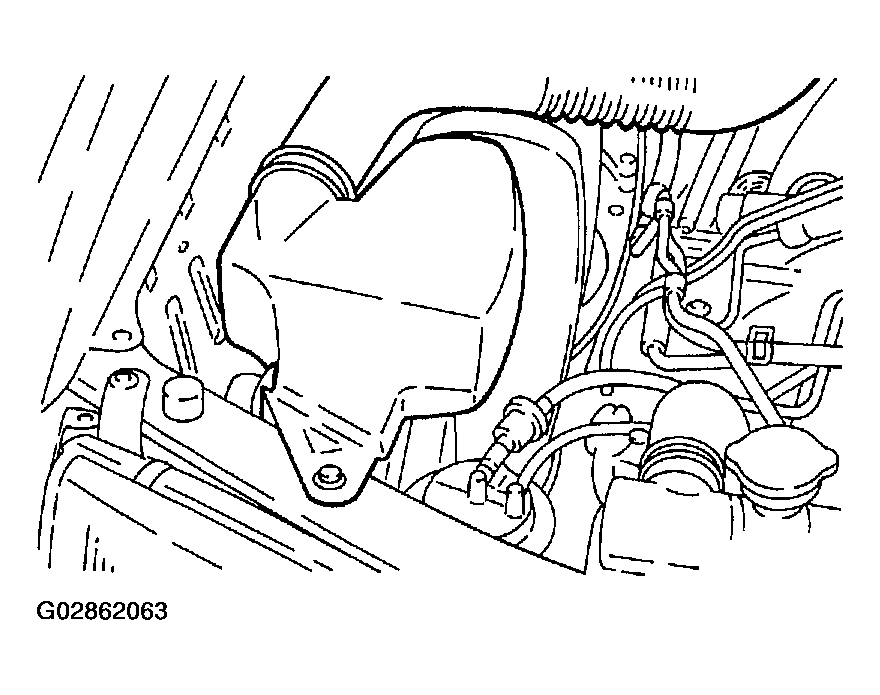

    Fig 1: Removing Air Intake Duct Bolts
    G02862063Courtesy of SUBARU OF AMERICA, INC.
  2. Remove bolt which secures air intake duct on body.

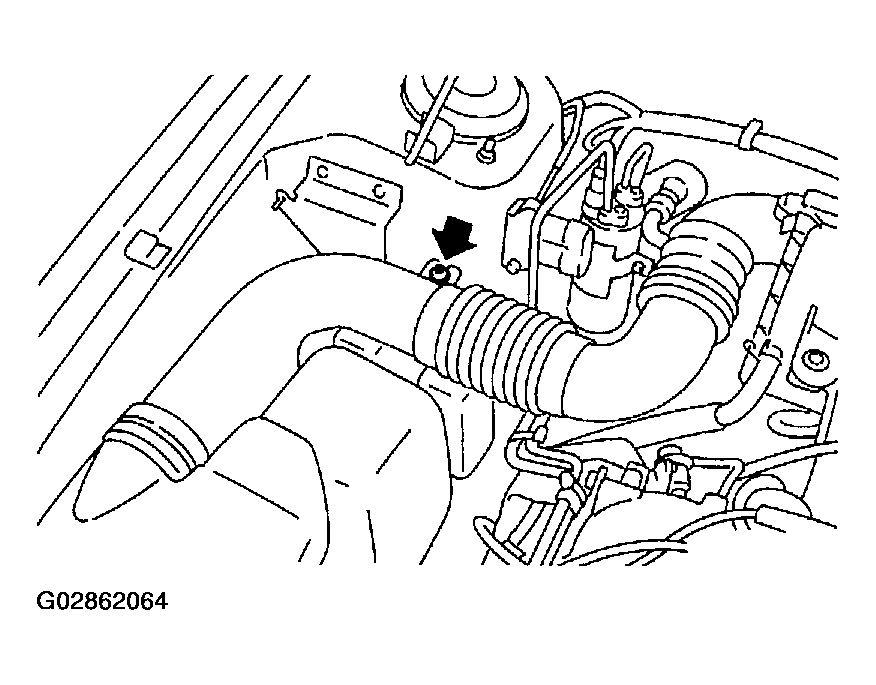

    Fig 2: Removing Air Intake Duct Bolt
    G02862064Courtesy of SUBARU OF AMERICA, INC.
  3. Remove air intake ducts as a unit.

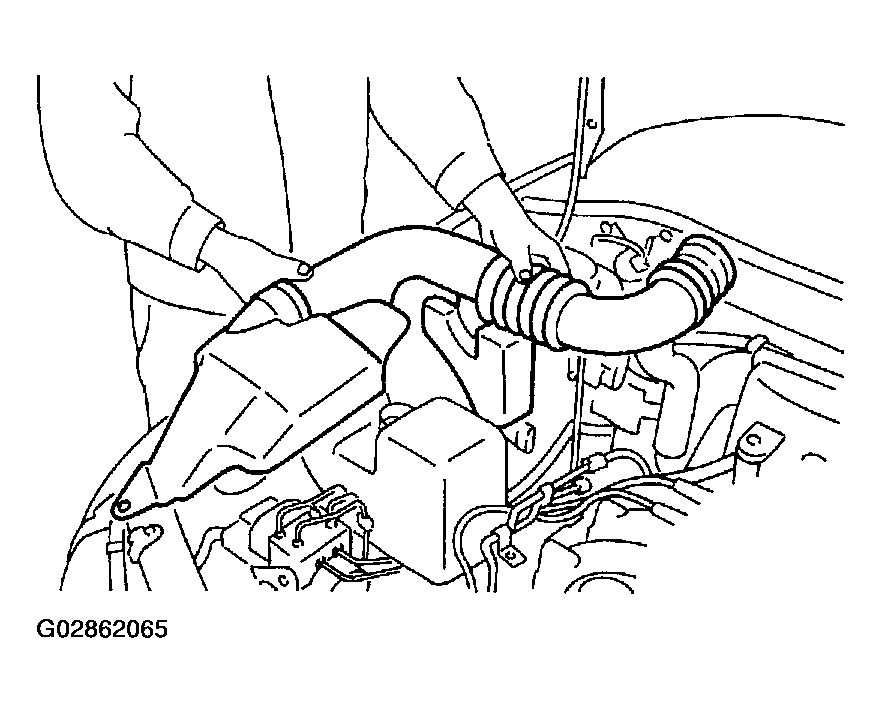

    Fig 3: Removing Air Intake Ducts
    G02862065Courtesy of SUBARU OF AMERICA, INC.
