Engine Controls - System & Component Testing
›
Component Locations
›
Component Locations (Legacy & Outback 2.5L)
Component Locations (Legacy & Outback 2.5L)

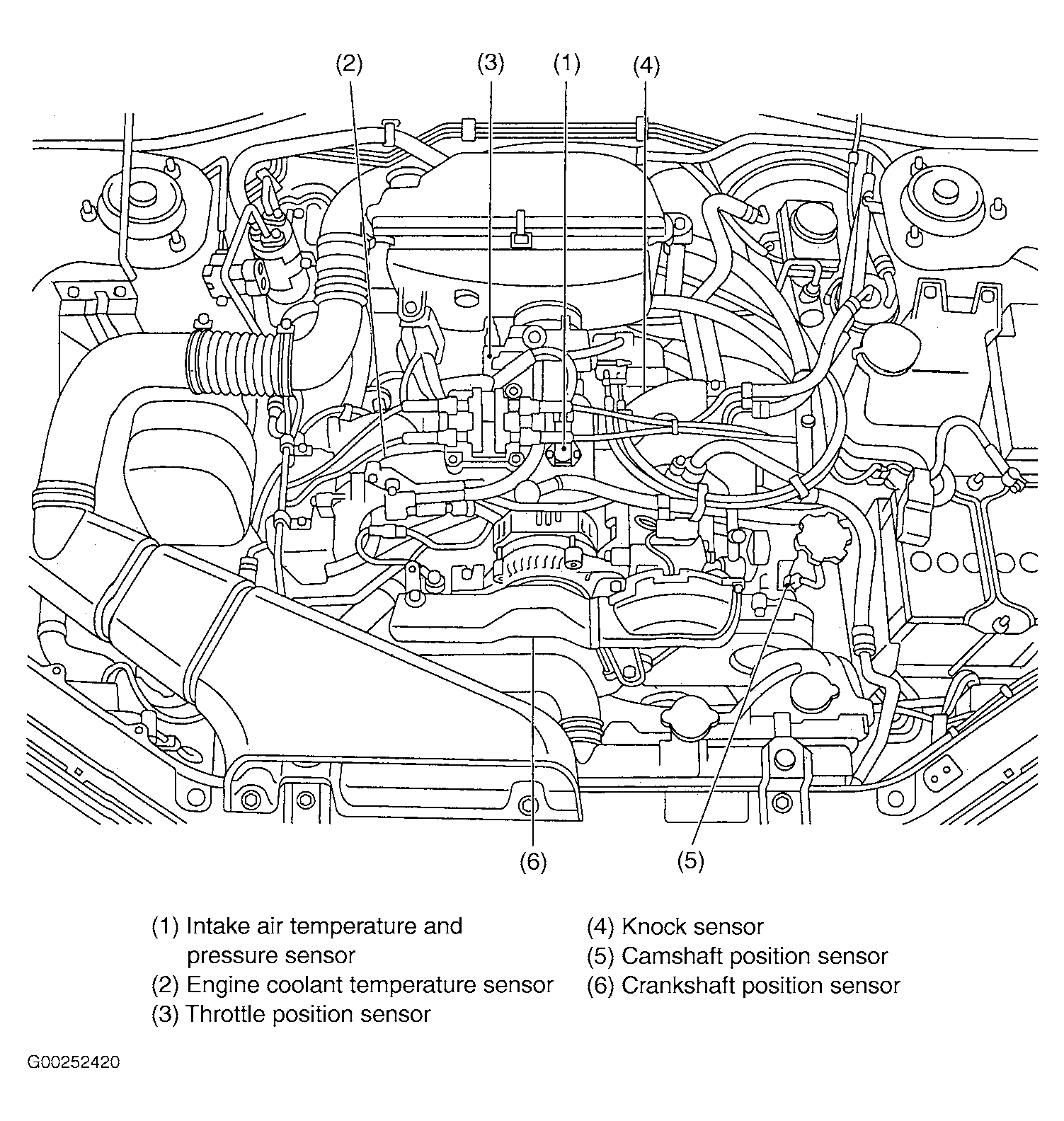

Fig 1: Component Locations (Legacy & Outback 2.5L)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
