Basic Inspection

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Perform the following inspection procedures and repair or replace defective parts.

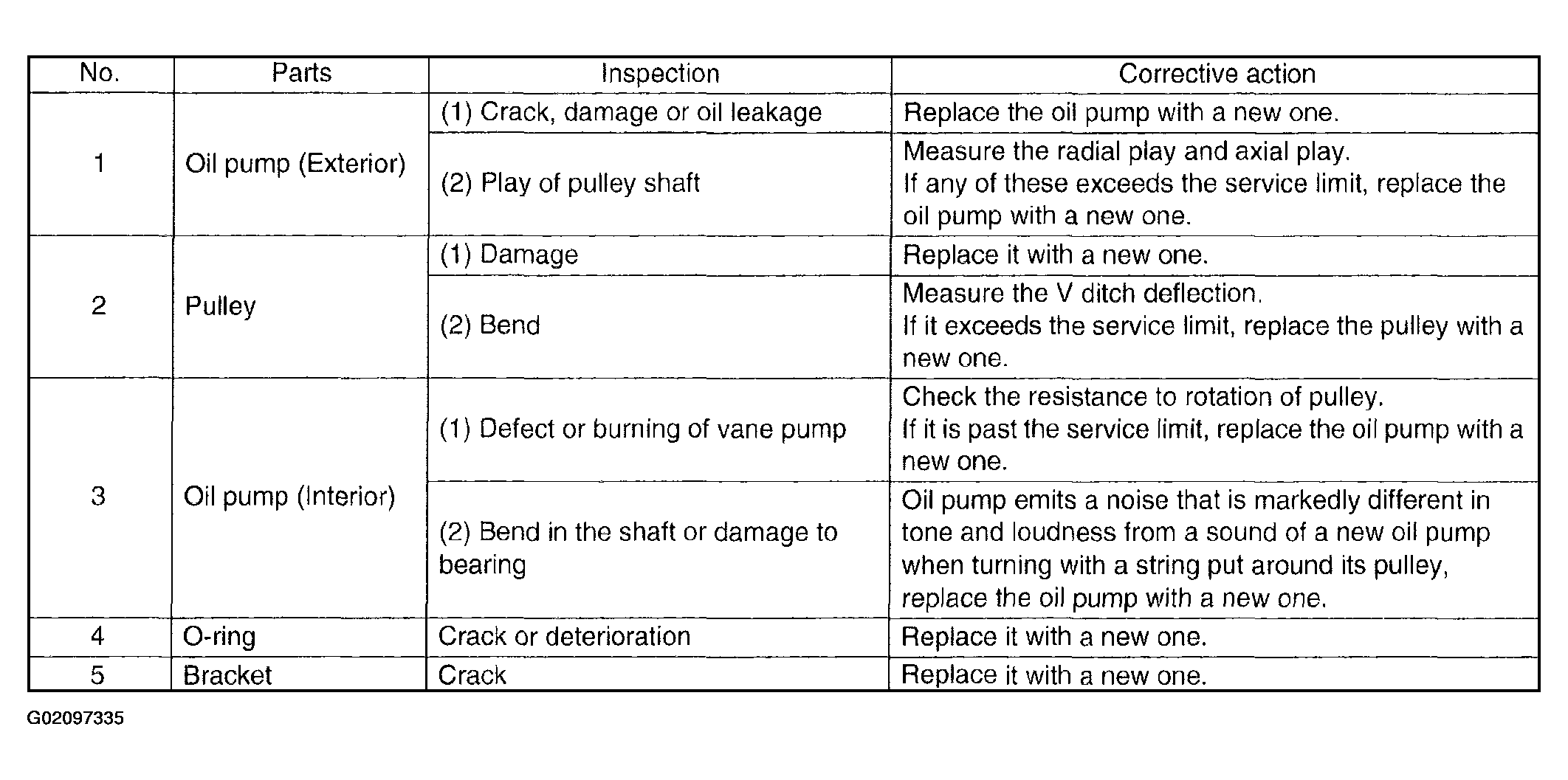

Fig 1: Oil Pump Basic Inspection Chart

Courtesy of SUBARU OF AMERICA, INC.
