Universal Joint: Removal

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering wheel. Refer to REMOVAL , Steering Wheel.
Make matching mark on the universal joint.
Remove the universal joint bolts, and then remove the universal joint.

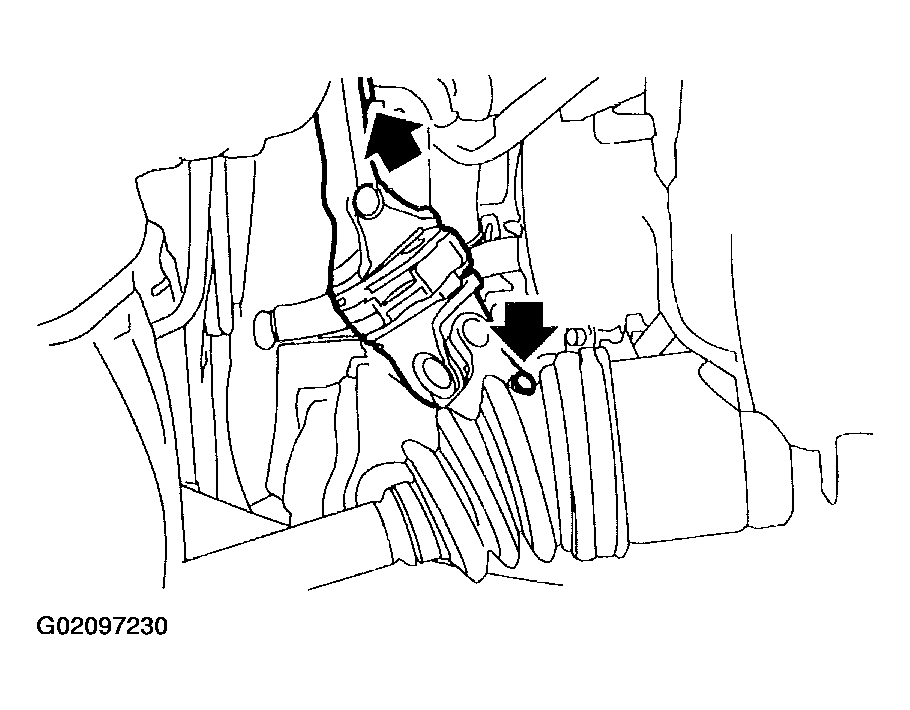

Fig 1: Removing Universal Joint Bolts
Courtesy of SUBARU OF AMERICA, INC.
