Blower Motor Unit Assembly: Removal

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.
Remove the glove box. Refer to REMOVAL , Glove Box.

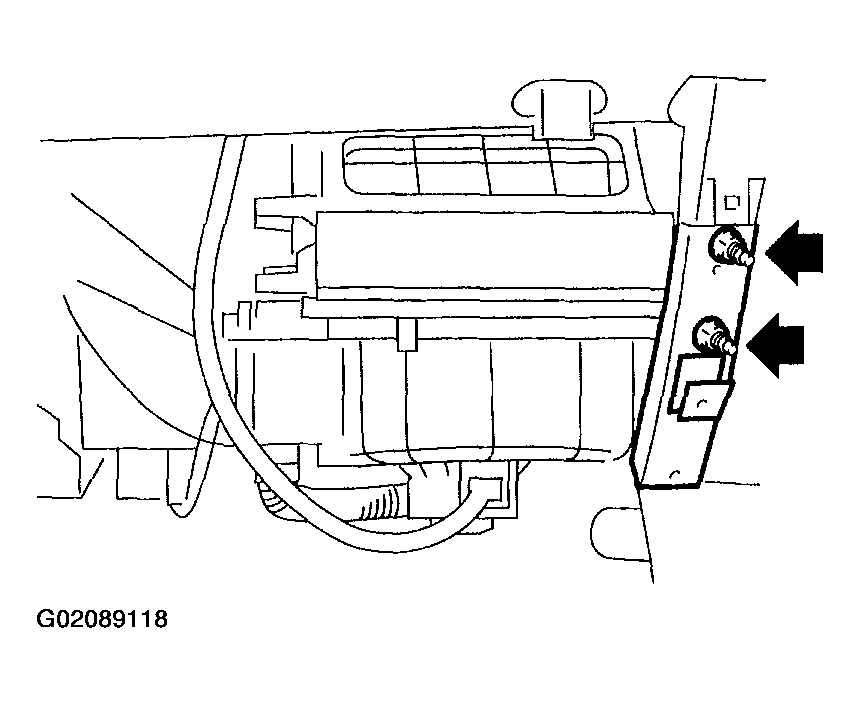

Loosen the nut to remove the support beam stay.

Fig 1: Removing Support Beam Stay
Courtesy of SUBARU OF AMERICA, INC.

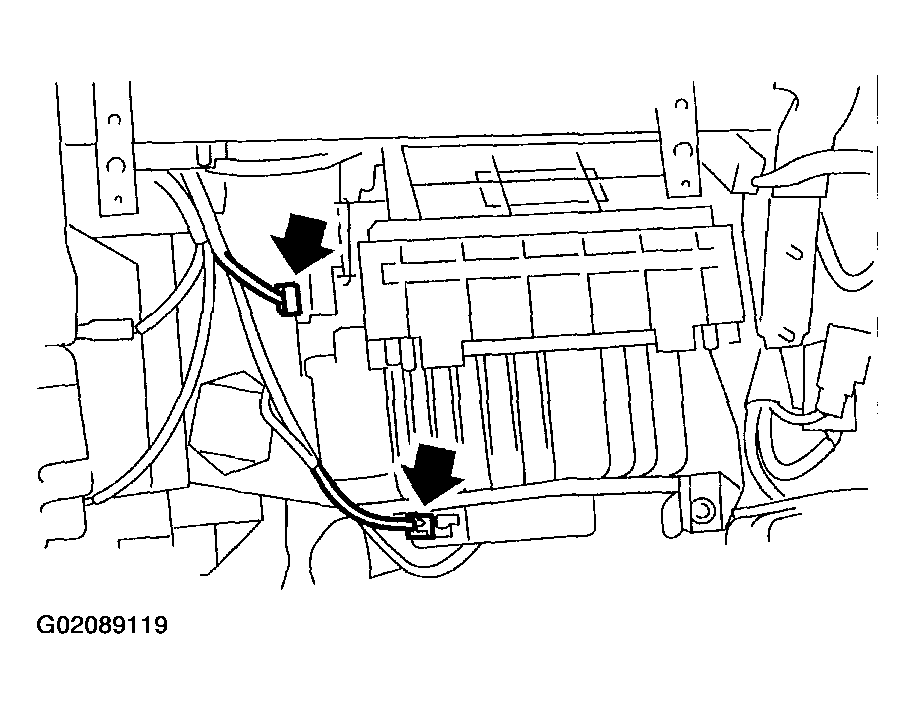

Disconnect the connectors of blower motor and intake actuator resistor.

Fig 2: Disconnecting Connectors Of Blower Motor & Intake Actuator Resistor
Courtesy of SUBARU OF AMERICA, INC.

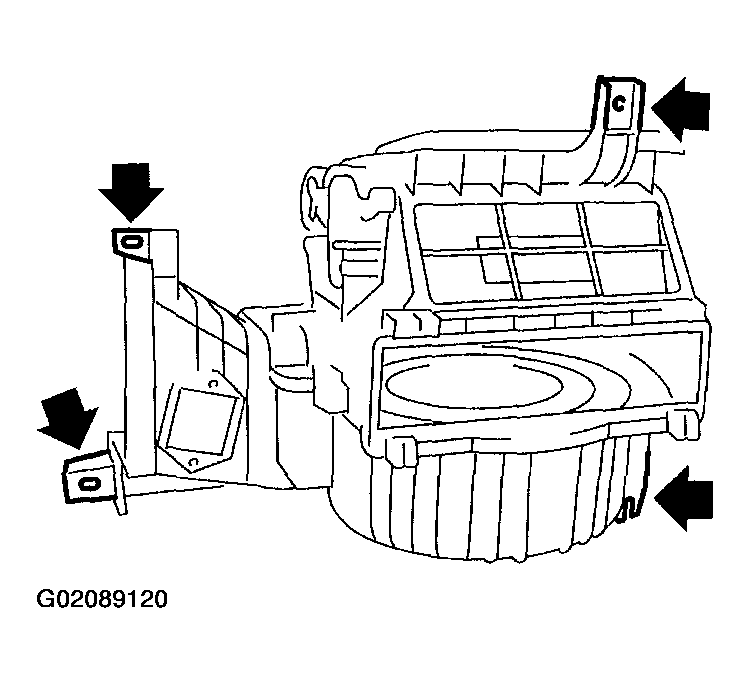

Loosen the bolt and nut to remove blower motor unit assembly.

Fig 3: Removing Blower Motor Unit Assembly
Courtesy of SUBARU OF AMERICA, INC.
