Section 104 (HVAC): Compressor: Removal

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Perform the compressor oil return operation. Refer to OPERATION , Compressor Oil.
Turn the A/C switch OFF and stop the engine.
Using the refrigerant recovery system, discharge refrigerant. Refer to OPERATION , Refrigerant Recovery Procedure.
Disconnect the ground cable from battery.
Remove the V-belt. Refer to REMOVAL , V-belt.
Remove the generator. Refer to REMOVAL , Generator.
Remove the low-pressure hose and high-pressure hose.

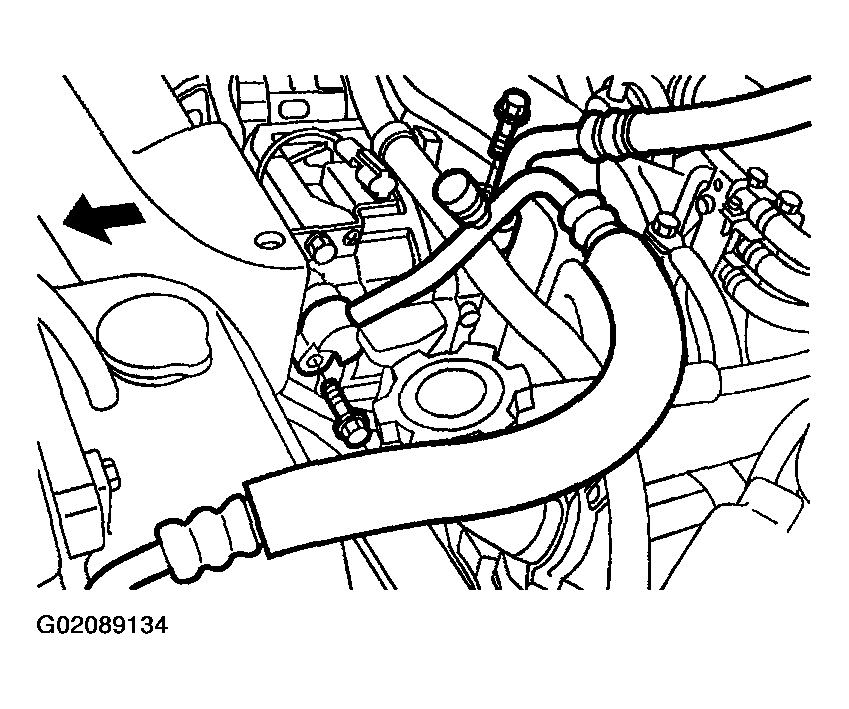

Fig 1: Removing Low/High Pressure Hose
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the compressor harness from body harness.
Loosen the bolts to remove compressor bracket.

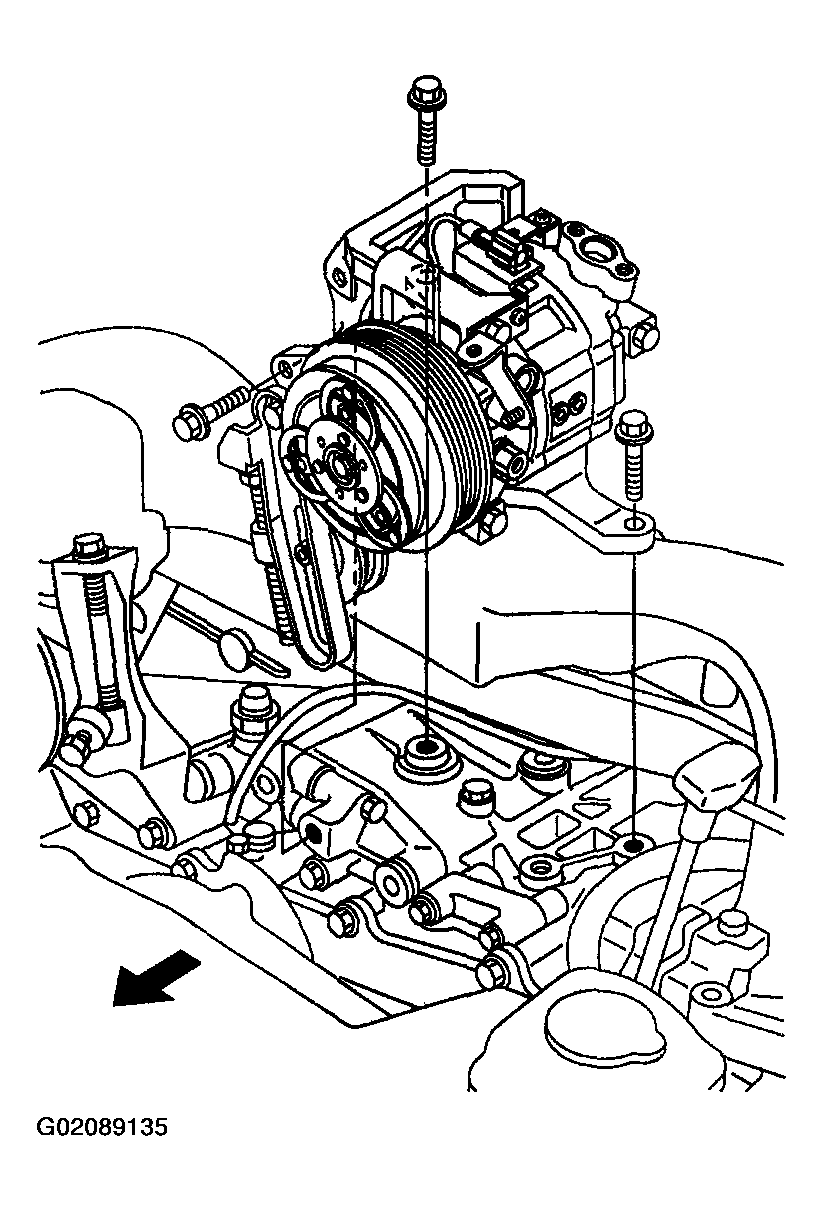

Fig 2: Loosening Bolts To Remove Compressor Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts and then separate compressor and bracket.

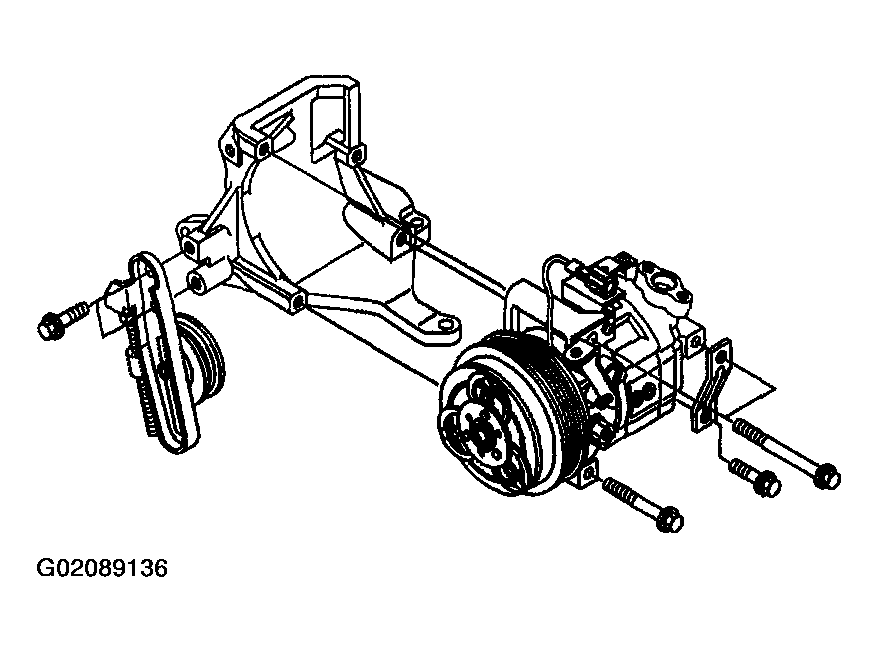

Fig 3: Separating Compressor & Bracket
