Section 104 (HVAC): Condenser: Removal

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Using the refrigerant recovery system, discharge refrigerant. Refer to OPERATION , Refrigerant Recovery Procedure.
Disconnect the ground cable from battery.
Disconnect the pressure hose and pipe from condenser.

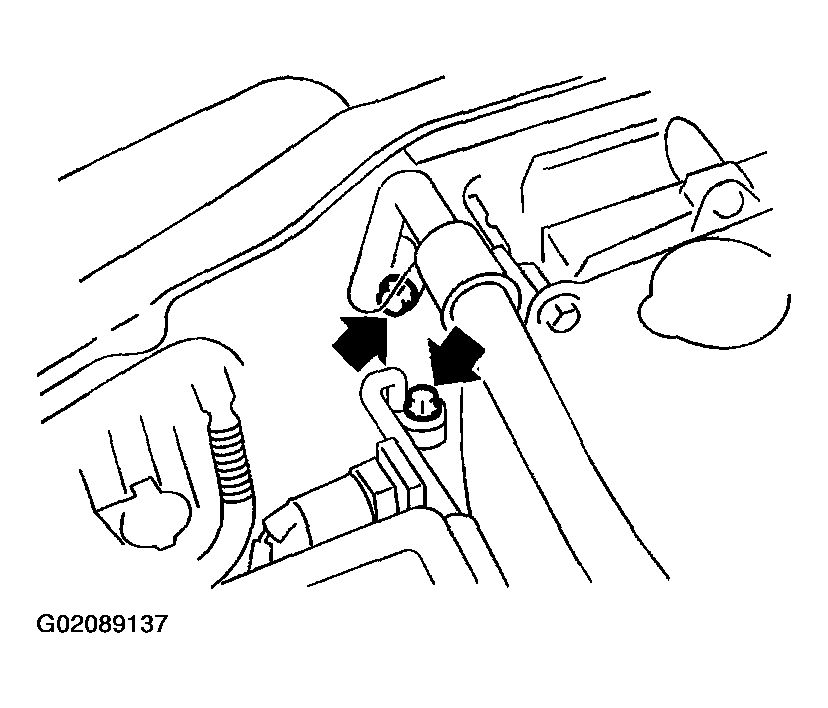

Fig 1: Disconnecting Pressure Hose & Pipe From Condenser
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator bracket (A).

Fig 2: Removing Radiator Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the two bolts. While lifting the condenser, pull it out through the space between radiator and radiator panel.

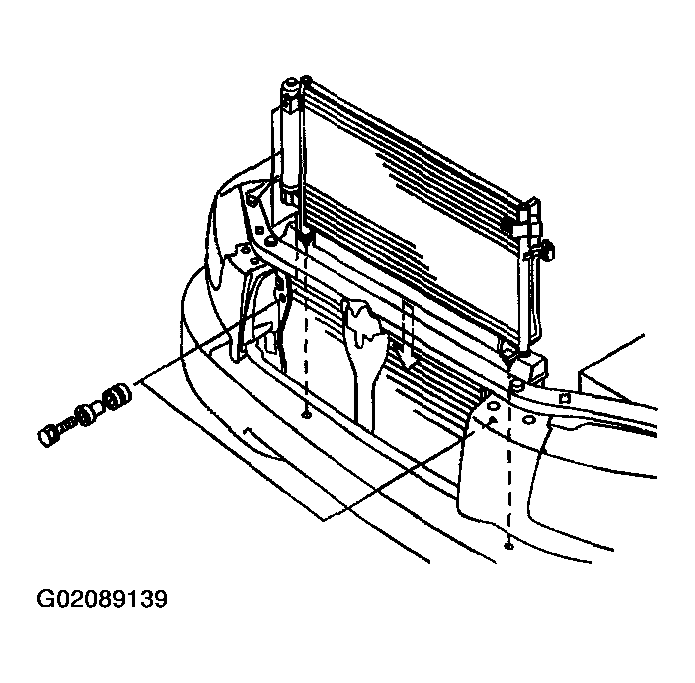

Fig 3: Removing Condenser
Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Be careful not to damage the radiator fins and condenser fins. If a damaged fin is found, repair it using a thin screwdriver.
If the condenser is replaced, add appropriate amount of compressor oil to the compressor. Refer to REPLACEMENT , Compressor Oil.
