Combination Switch (Light): Removal

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover. Refer to REMOVAL , Instrument Panel Assembly.
  3. Remove the screws which secure upper column cover to lower column cover.
    Fig 1: Removing Screws Securing Upper Column Cover To Lower Column Cover
    G02089376Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector from combination switch.
  5. Remove the screws which secure switch, and then remove the switch.

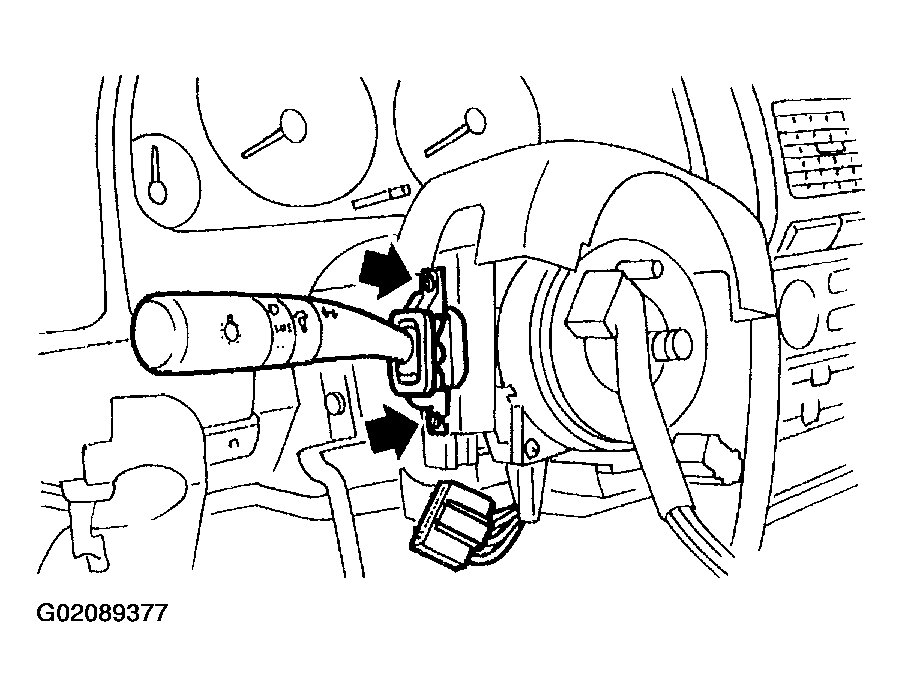

    Fig 2: Removing Combination Switch (Light)
    G02089377Courtesy of SUBARU OF AMERICA, INC.
