Cigarette Lighter: Removal

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.
Remove the front cover. Refer to REMOVAL , Console Box.
Disconnect the harness connectors and remove cigarette lighter.

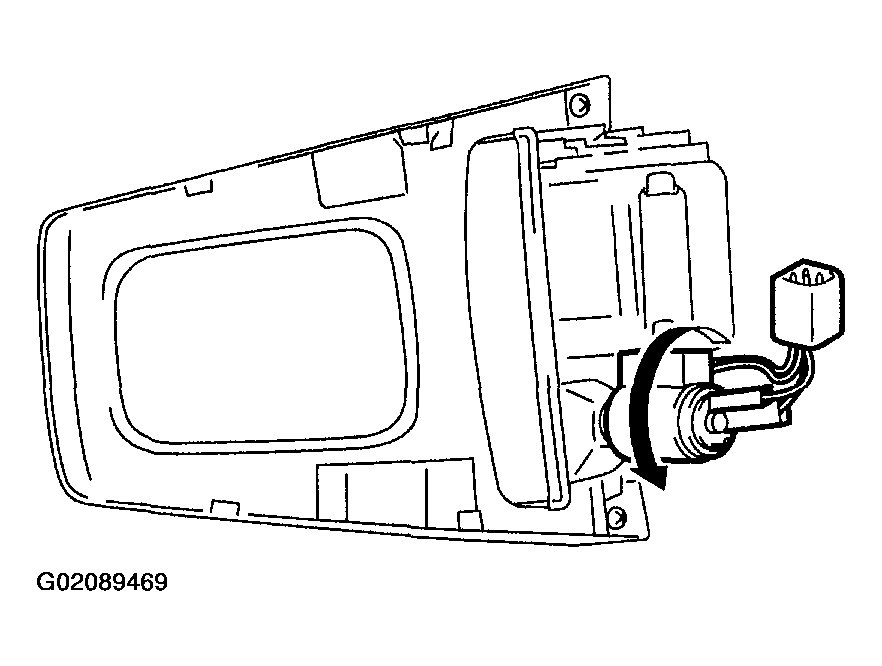

Fig 1: Disconnecting Harness Connectors & Removing Cigarette Lighter
Courtesy of SUBARU OF AMERICA, INC.
