Front Hood Lock Assembly: Removal

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the front grille.
  3. Remove the bolt. Remove the hood lock assembly.
  4. Remove the release cable from lock assembly.

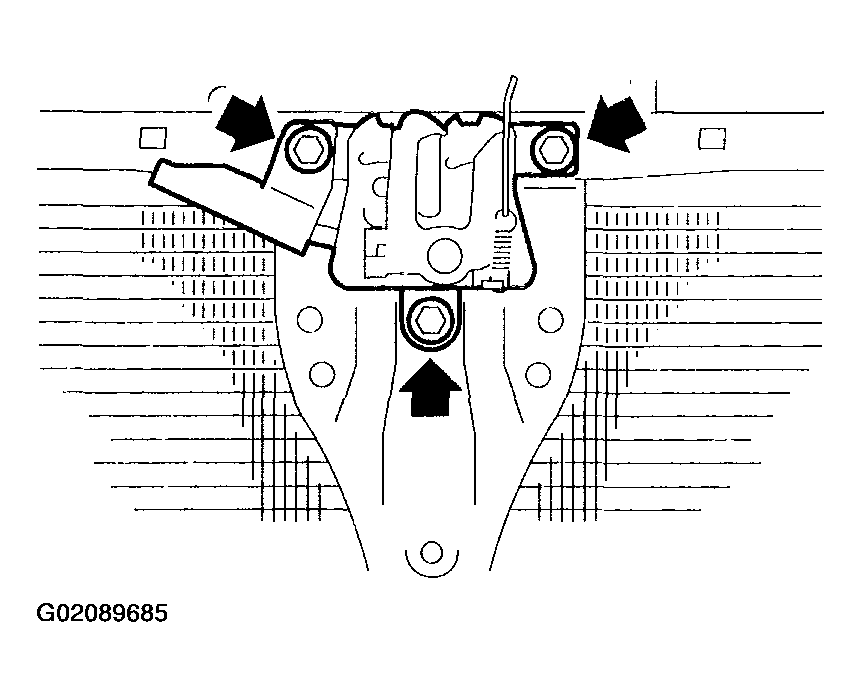

    Fig 1: Removing Release Cable From Lock Assembly
    G02089685Courtesy of SUBARU OF AMERICA, INC.
