Ignition Key Lock: Inspection
WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the instrument panel lower cover.
- Remove the lower column cover.
- Unfasten the hold down clip which secures harness and disconnect the connector of ignition switch from body harness.

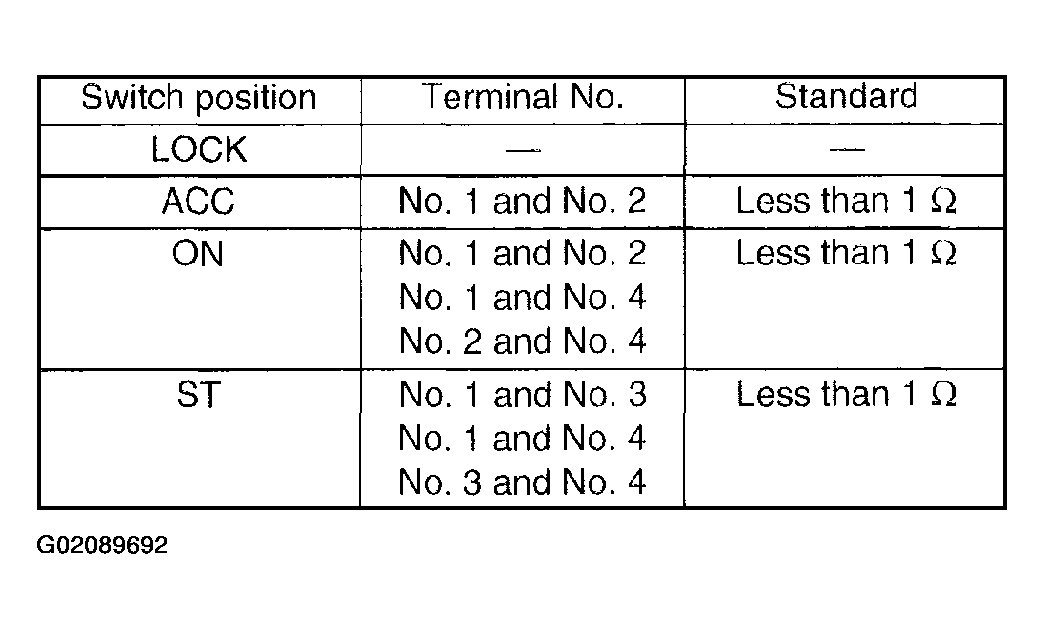

- Turn the ignition key plate to each position and check the continuity between terminals of ignition connector.
Courtesy of SUBARU OF AMERICA, INC.
If NG, replace the ignition switch.
