Ignition Key Lock: Replacement

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove the ground cable from battery.
Remove the steering column. Refer to REMOVAL , Tilt Steering Column.
Secure the steering column in a vise. Remove the bolt with a drill.

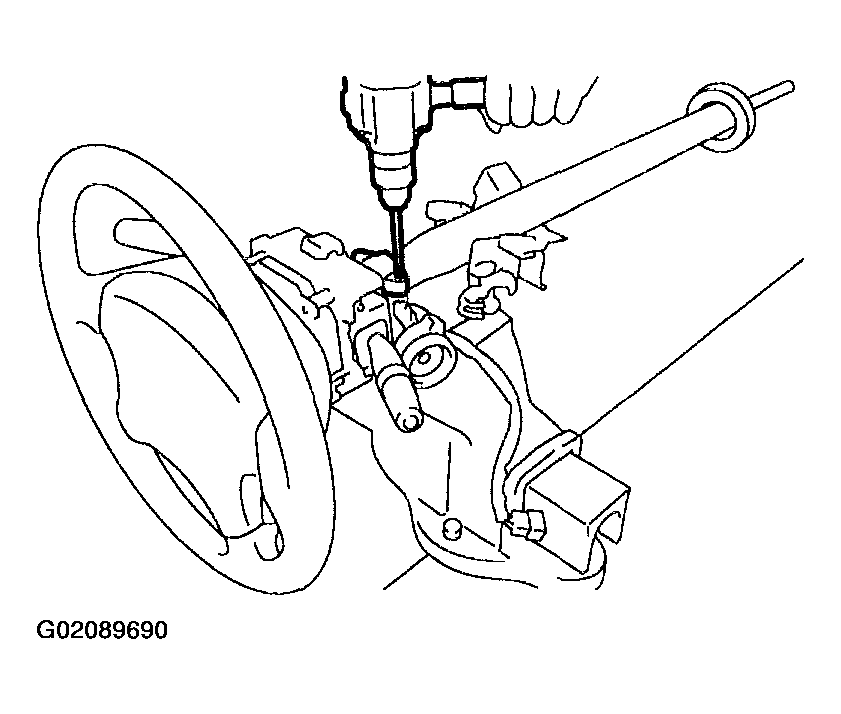

Fig 1: Securing Steering Column In Vise
Courtesy of SUBARU OF AMERICA, INC.
Remove the ignition key lock.
Use a new torn bolt. Tighten the torn bolt to end of thread.

Fig 2: Tightening Torn Bolt To End Of Thread
Courtesy of SUBARU OF AMERICA, INC.
