Interrupt Relay: Removal

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the mounting nuts and detach the interrupt relay (near the fuse box).

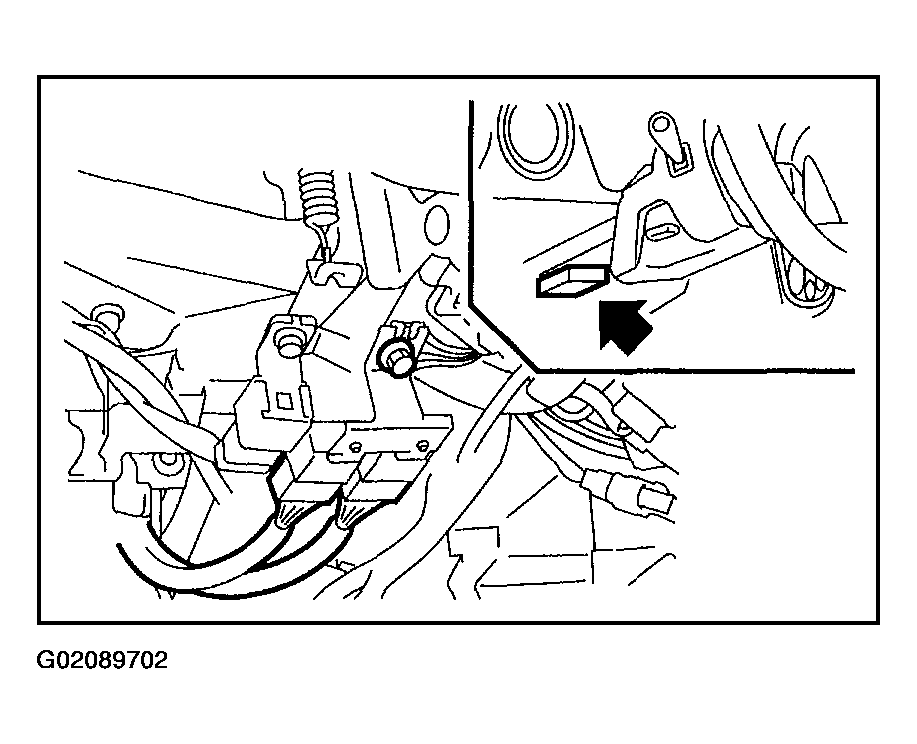

    Fig 1: Removing Mounting Nuts & Interrupt Relay (Near Fuse Box)
    G02089702Courtesy of SUBARU OF AMERICA, INC.
