Check Output Signal To Integrated Module

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

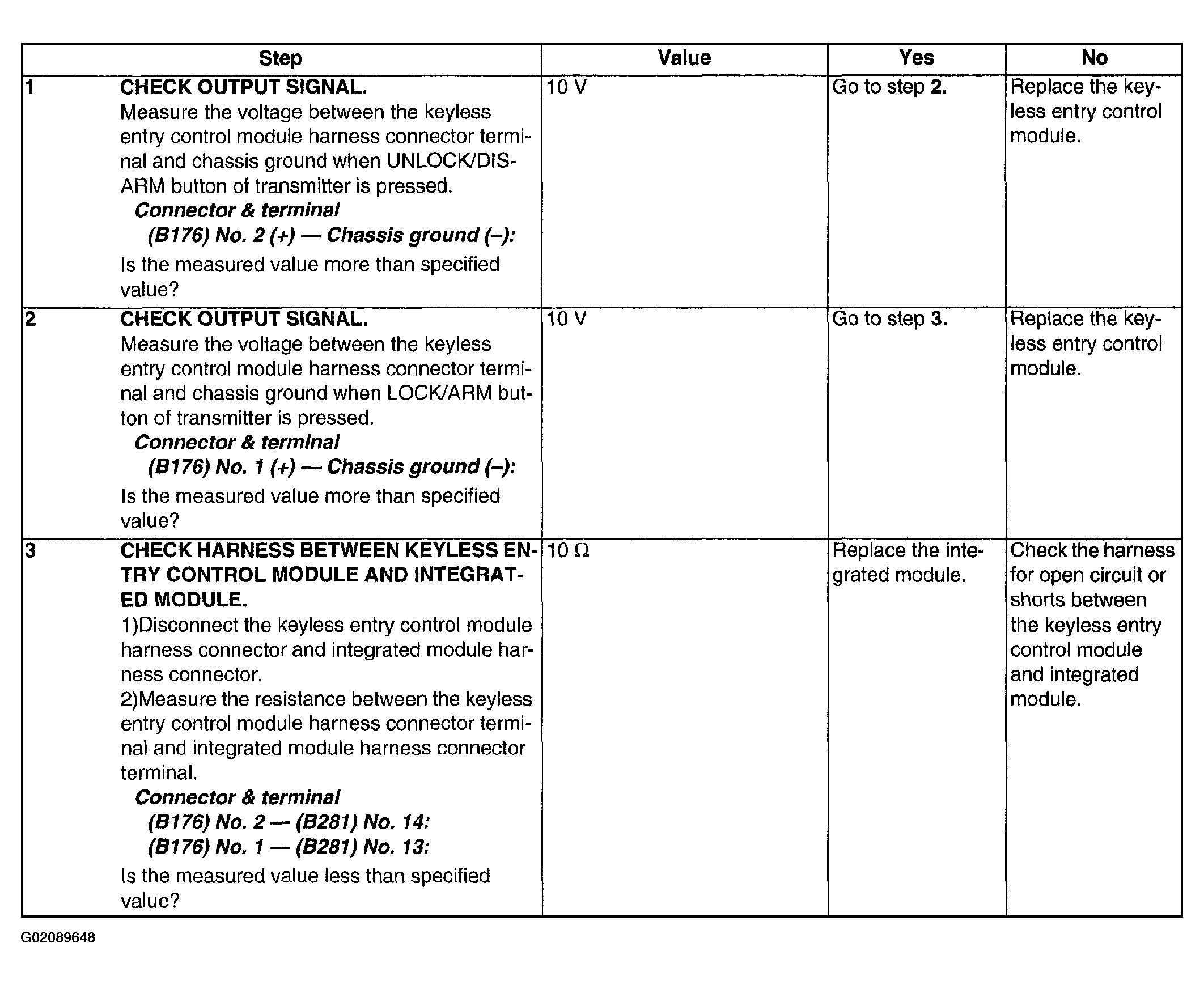

Fig 1: Checking Output Signal To Integrated Module

Courtesy of SUBARU OF AMERICA, INC.
