Component Locations

WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS

Component Location
Main Fuse Box Under hood, driver-side. See Fig 1 .
Door Lock Actuators Inside door. See Fig 1 .
Door Lock Switch Inside compartment door panels
Keyless Entry Control Module Under right-side of hood. See Fig 1 .
Horn Relay In main fuse box under hood. See Fig 1 .
Interrupt Relay Near main fuse box under hood. See Fig 6 .
Fig 1: Locating Keyless Entry System Components
G00050143Courtesy of SUBARU OF AMERICA, INC.

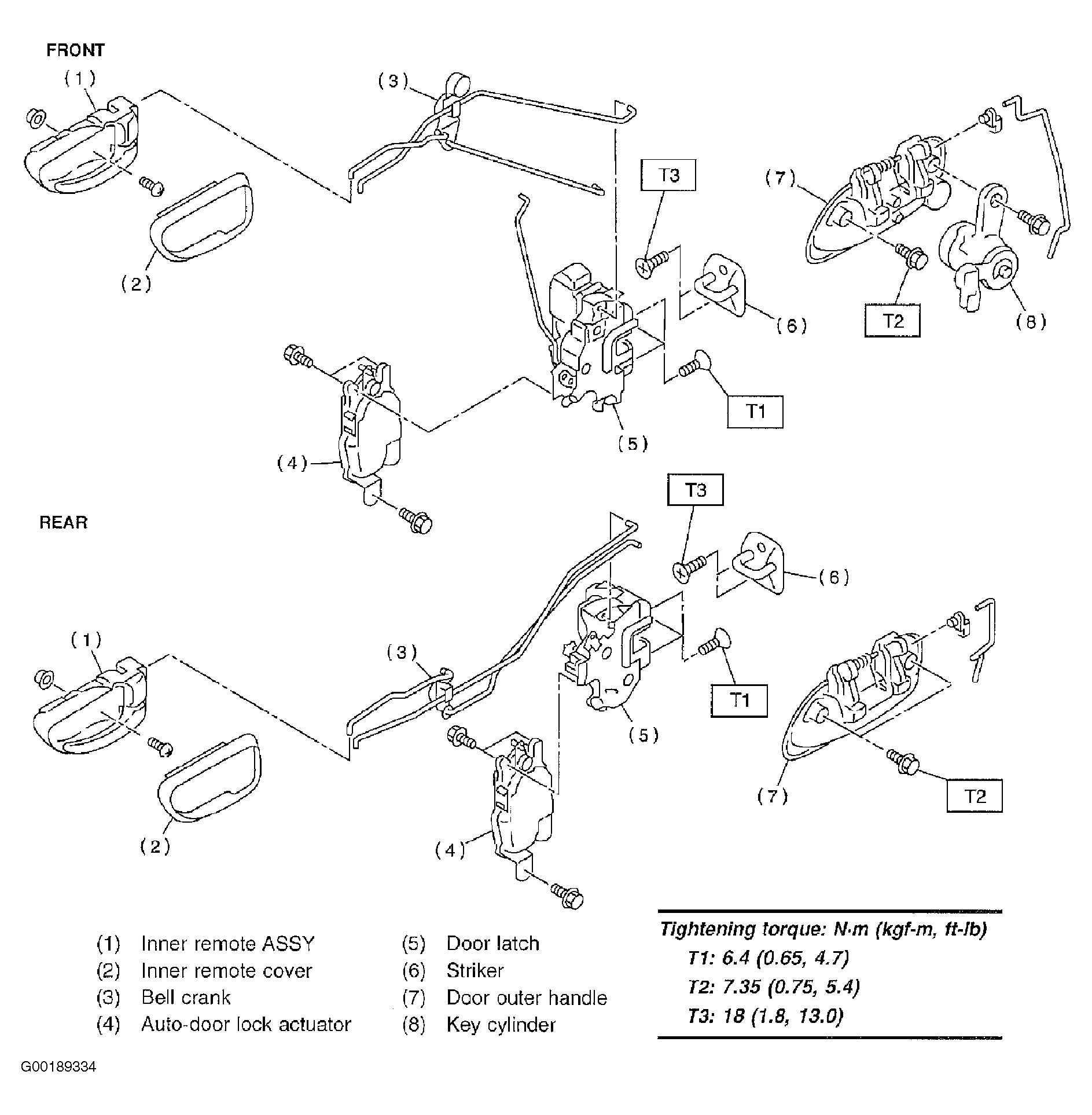

Fig 2: Locating Door Lock Assembly Components
G00189334Courtesy of SUBARU OF AMERICA, INC.

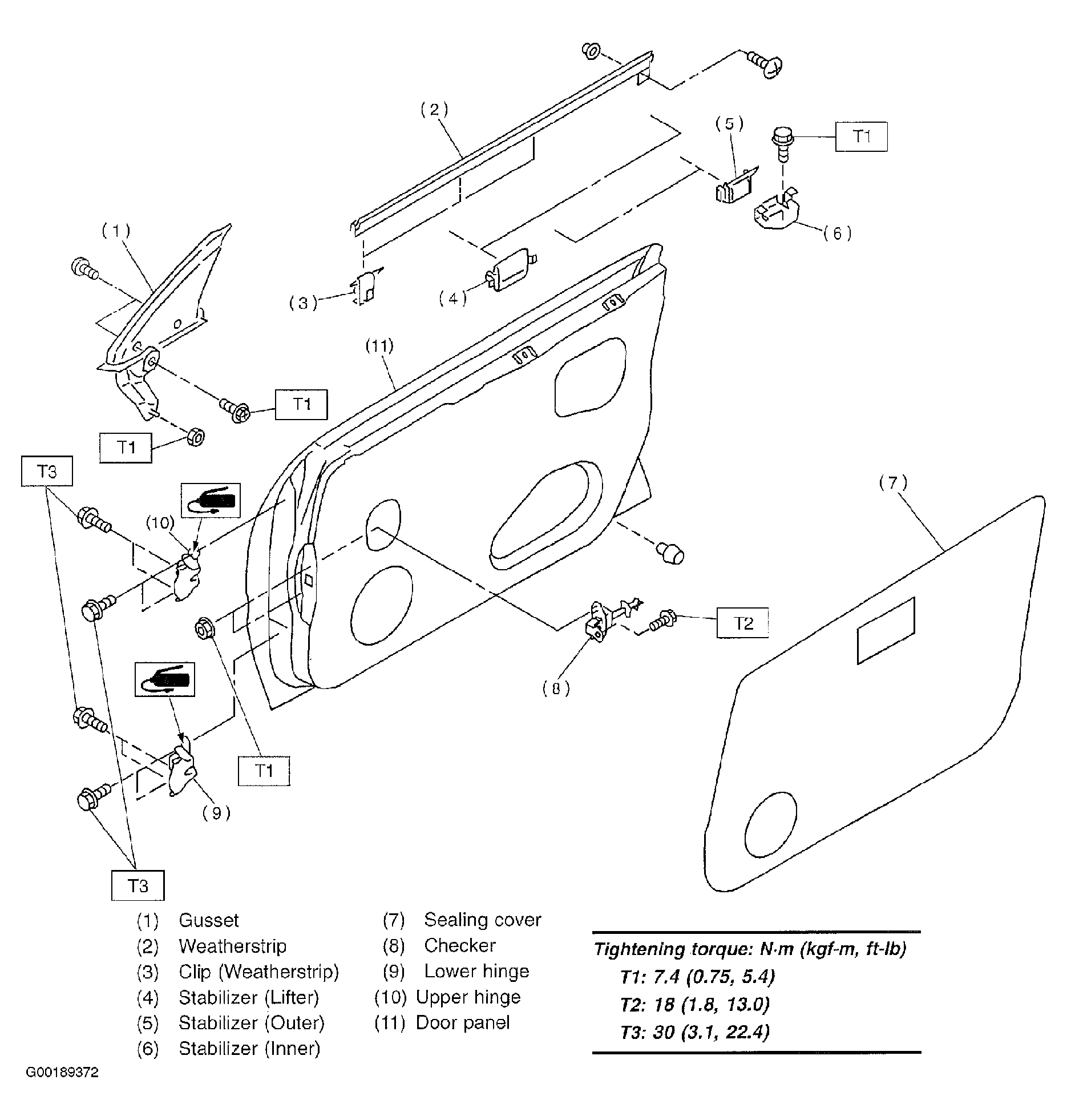

Fig 3: Locating Front Door Panel Components
G00189372Courtesy of SUBARU OF AMERICA, INC.

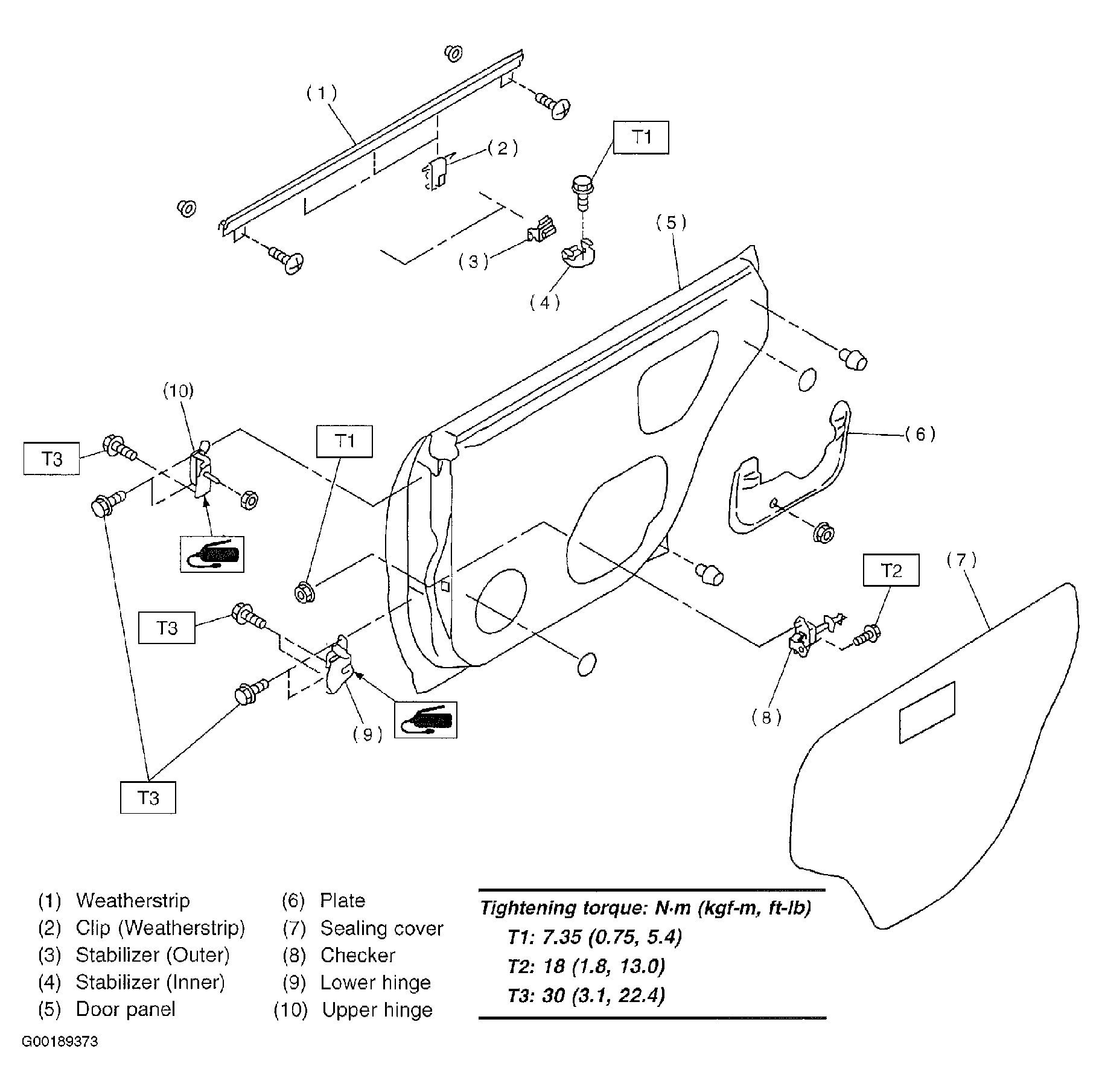

Fig 4: Locating Rear Door Panel Components
G00189373Courtesy of SUBARU OF AMERICA, INC.

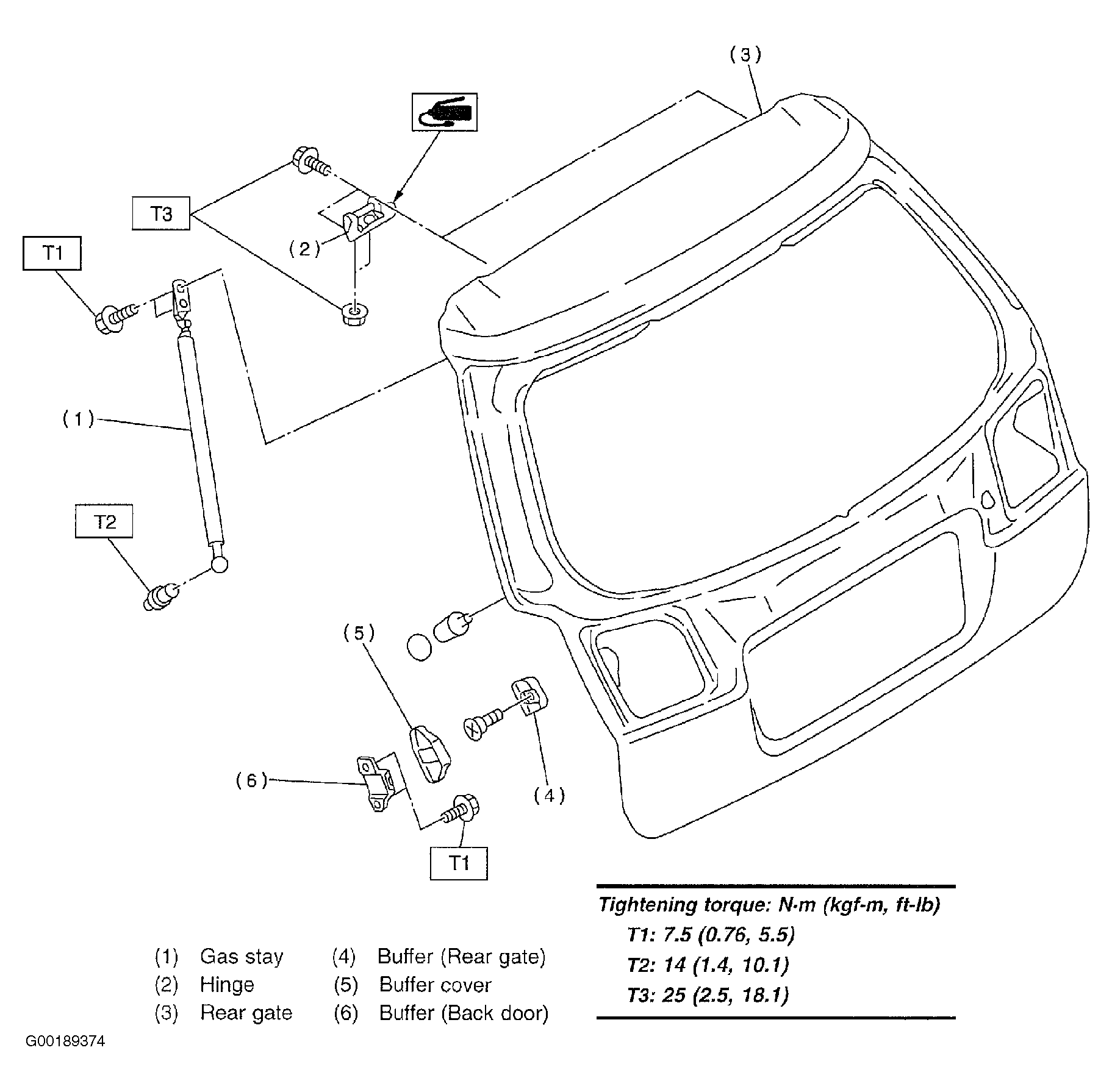

Fig 5: Locating Rear Gate Panel Components
G00189374Courtesy of SUBARU OF AMERICA, INC.
Fig 6: Locating Security System Components
G99B54727Courtesy of SUBARU OF AMERICA, INC.

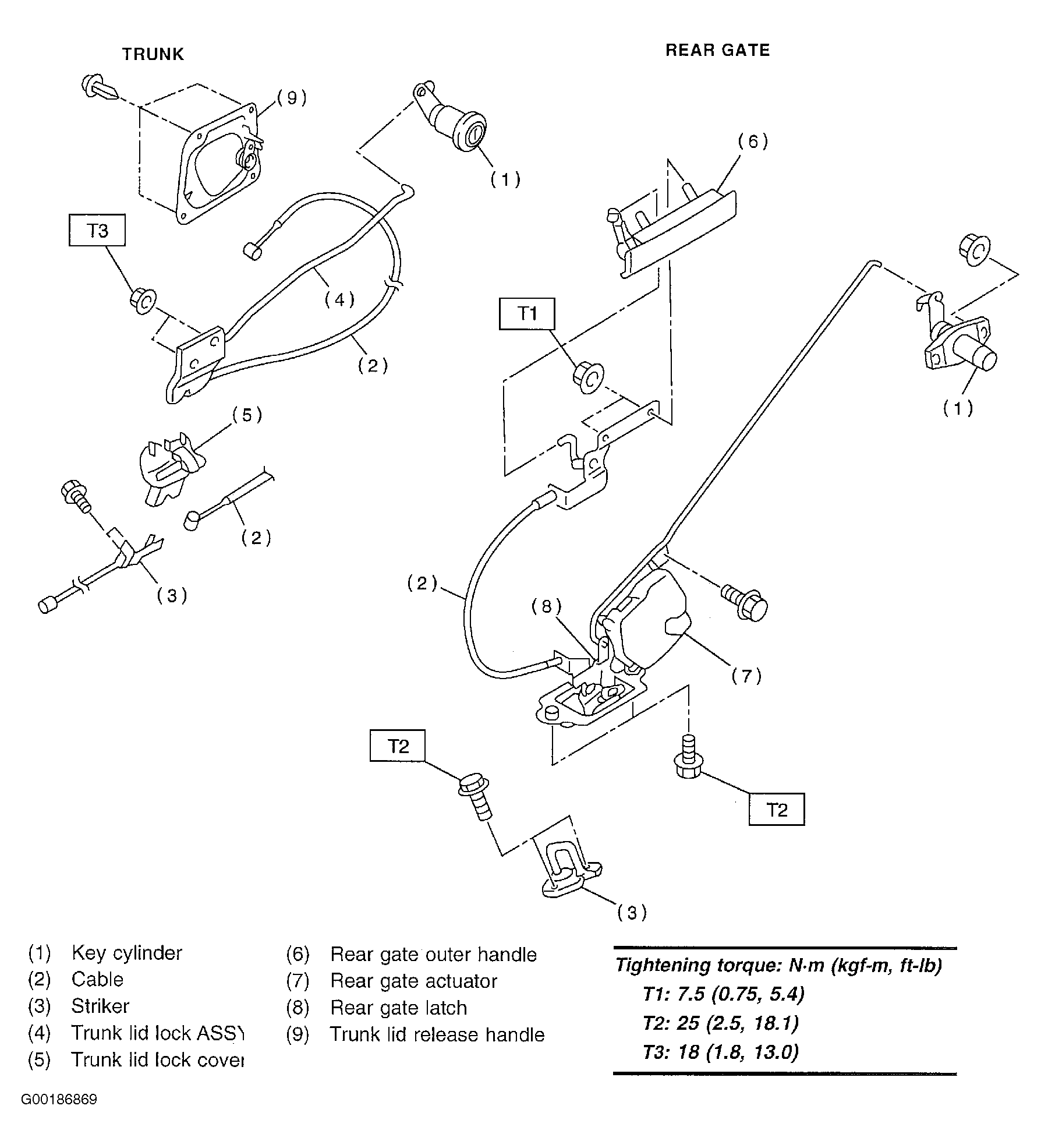

Fig 7: Locating Trunk Lid & Rear Gate Lock Components
G00186869Courtesy of SUBARU OF AMERICA, INC.
