Symptom Chart (Keyless Entry System)

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Use chart in Fig 1 and Fig 2 .

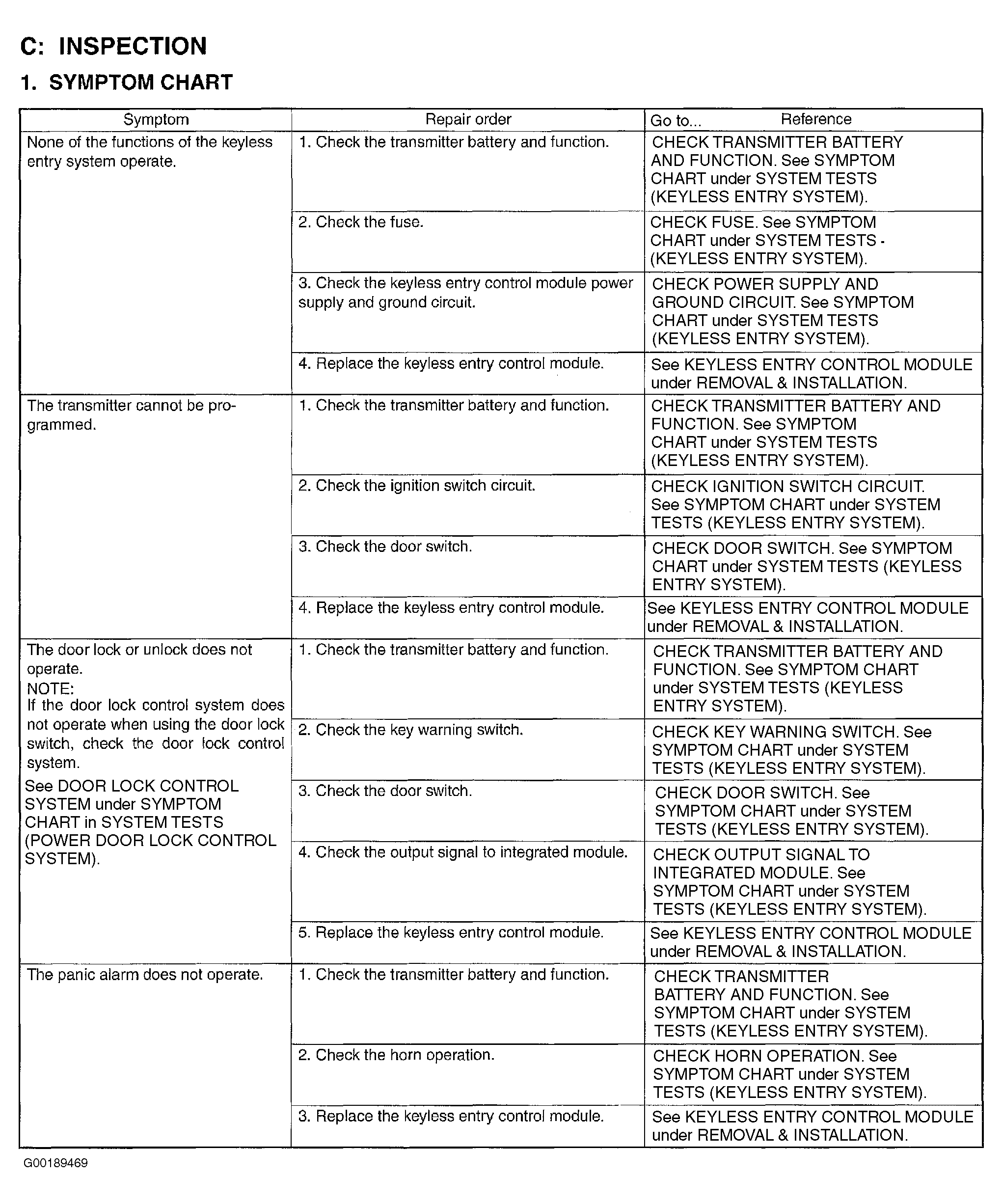

Fig 1: Keyless Entry System Symptom Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

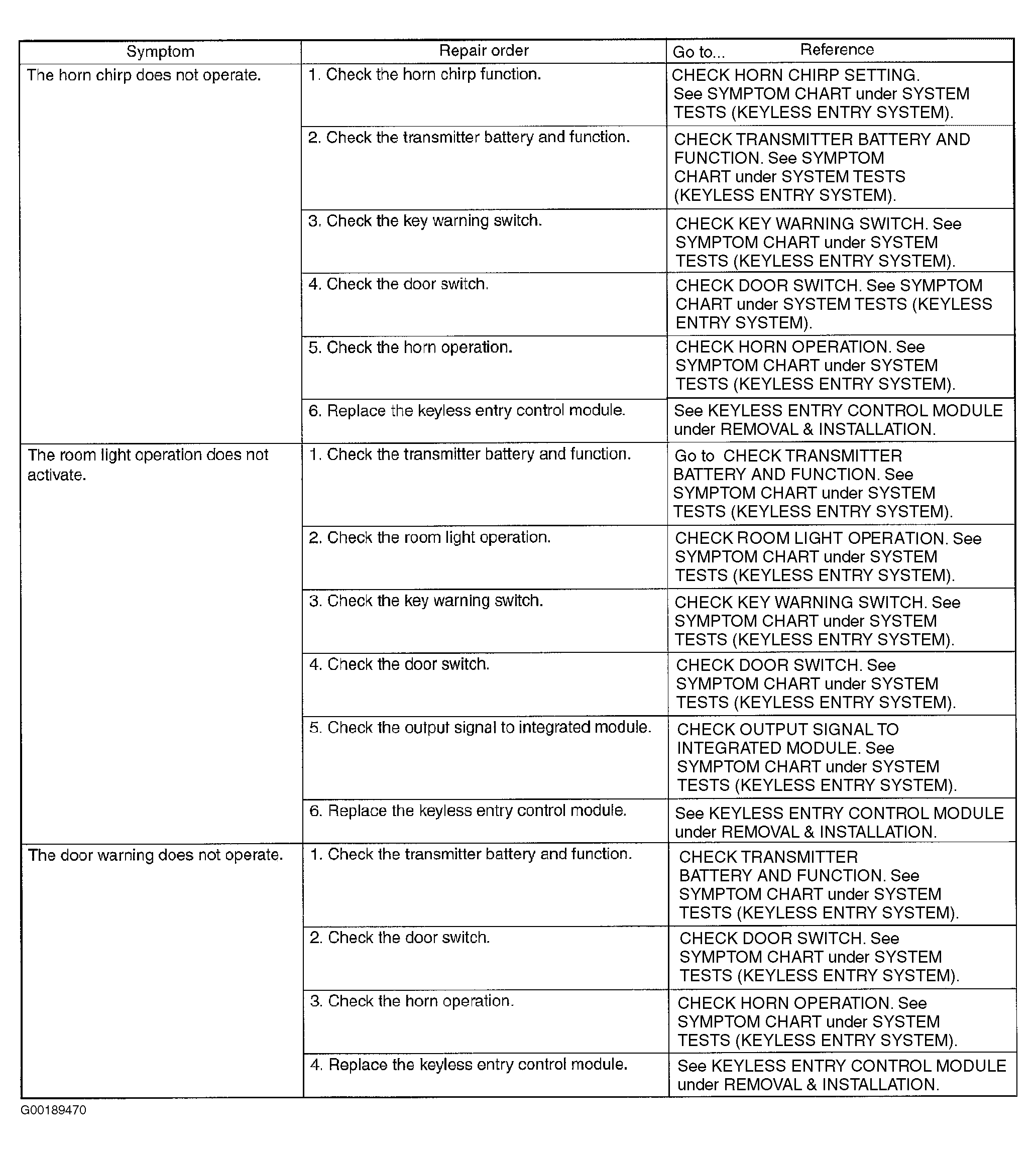

Fig 2: Keyless Entry System Symptom Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
