Check Security Indicator Light Circuit

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

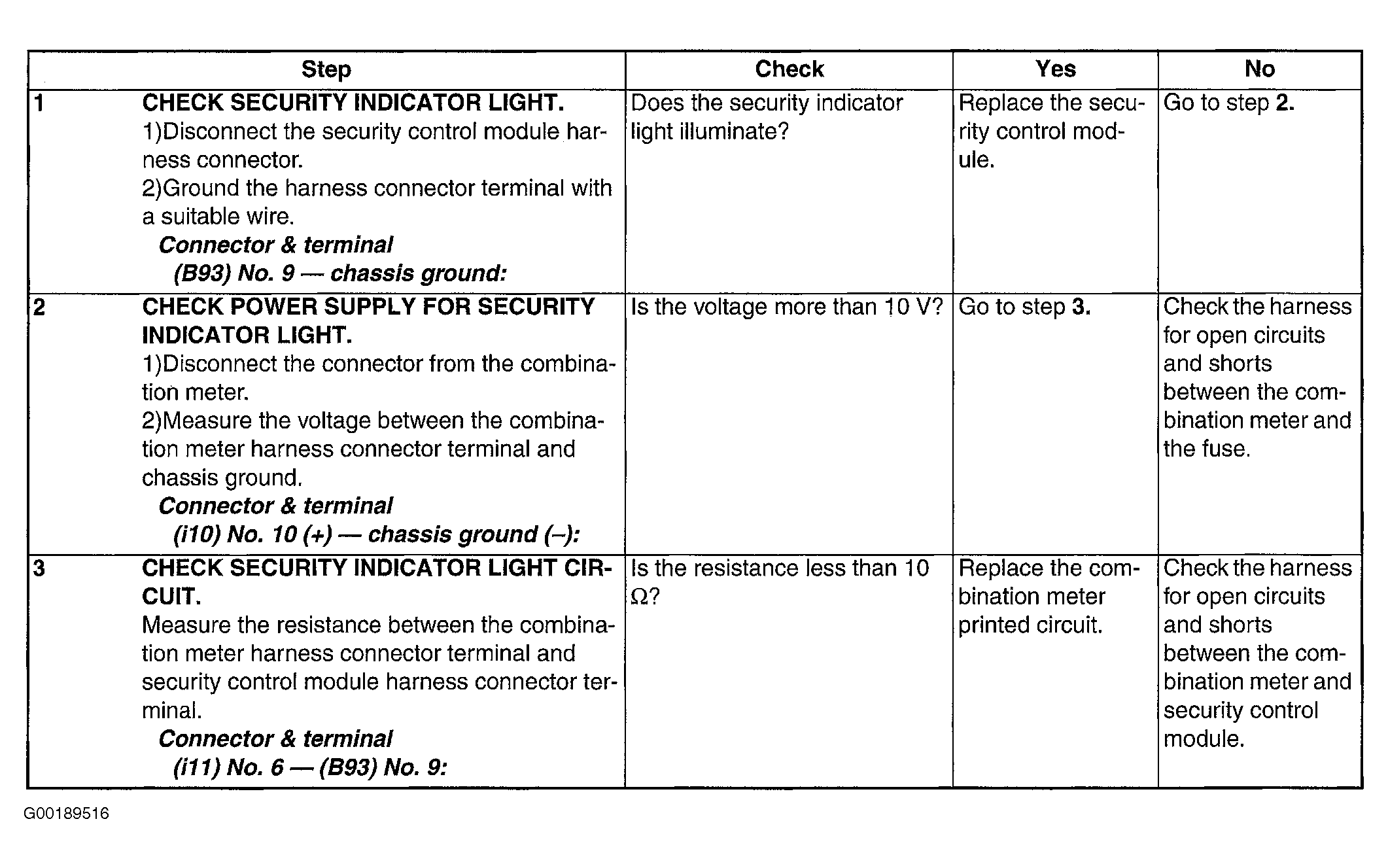

Fig 1: Check Security Indicator Light Circuit (Testing Procedure)

Courtesy of SUBARU OF AMERICA, INC.
