Symptom Chart
WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
When measuring voltage and resistance of the ECM, TCM, or each sensor, use a tapered pin with a diameter of less than .025" (.64 mm) in order to avoid poor contact. Do not insert the pin more than .08" (2 mm).
NOTE:

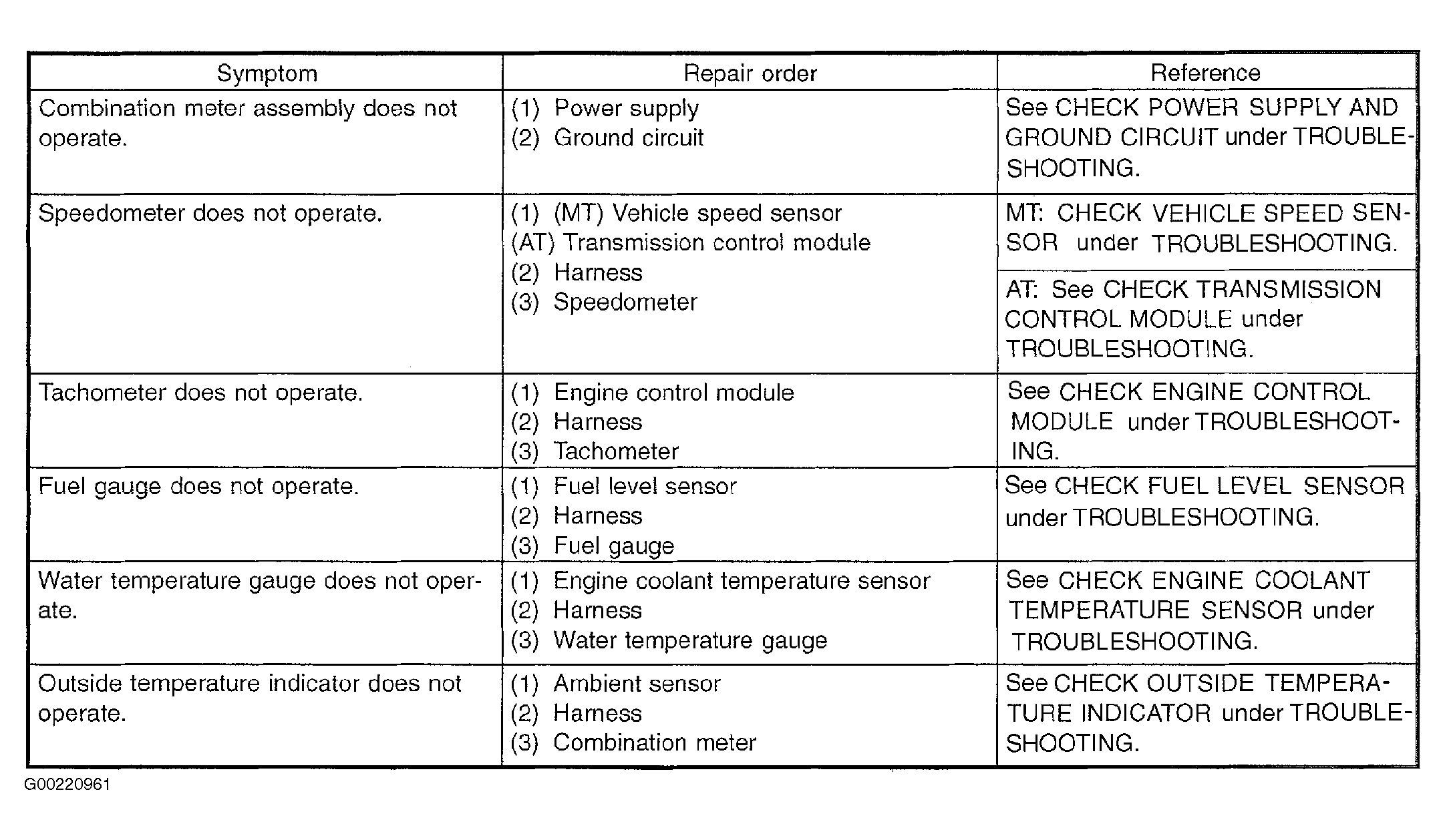

Use chart in Fig 1
with TROUBLE SHOOTING
procedures.
