Read Current Data

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. On the << Main Menu >> display screen, select the {Each System Check} and press the [YES] key.
  2. On the << System Selection Menu >> display screen, select the {Transmission Control System} and press the [YES] key.
  3. Press the [YES] key after the information of transmission type is displayed.
  4. On the << Transmission Diagnosi >> display screen, select the {Current Data Display & Save} and press the [YES] key.
  5. On the << Data Display Menu >> display screen, select the {Data Display} and press the [YES] key.
  6. Using the scroll key, move the display screen up or down until desired data is shown.

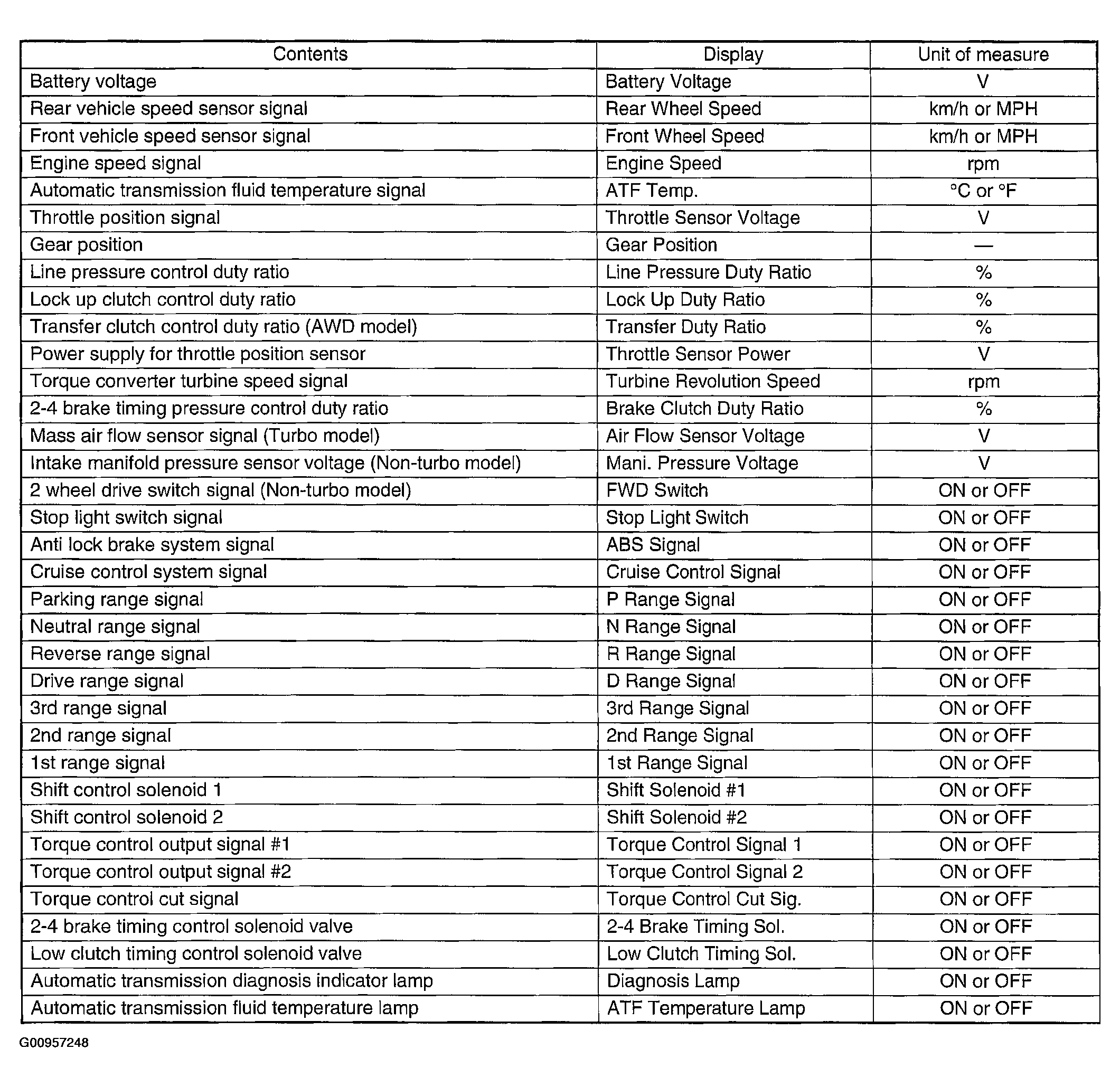

    • A list of the support data is shown in the following table.
Fig 1: Scan Tool Display Chart
G00957248Courtesy of SUBARU OF AMERICA, INC.
NOTE: For detailed operation procedure, refer to the OEM - GENERAL INFORMATION .
