Combination Meter Assembly: Removal

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.
Set the tilt steering at lowest position.
Remove the screws and detach the meter visor.

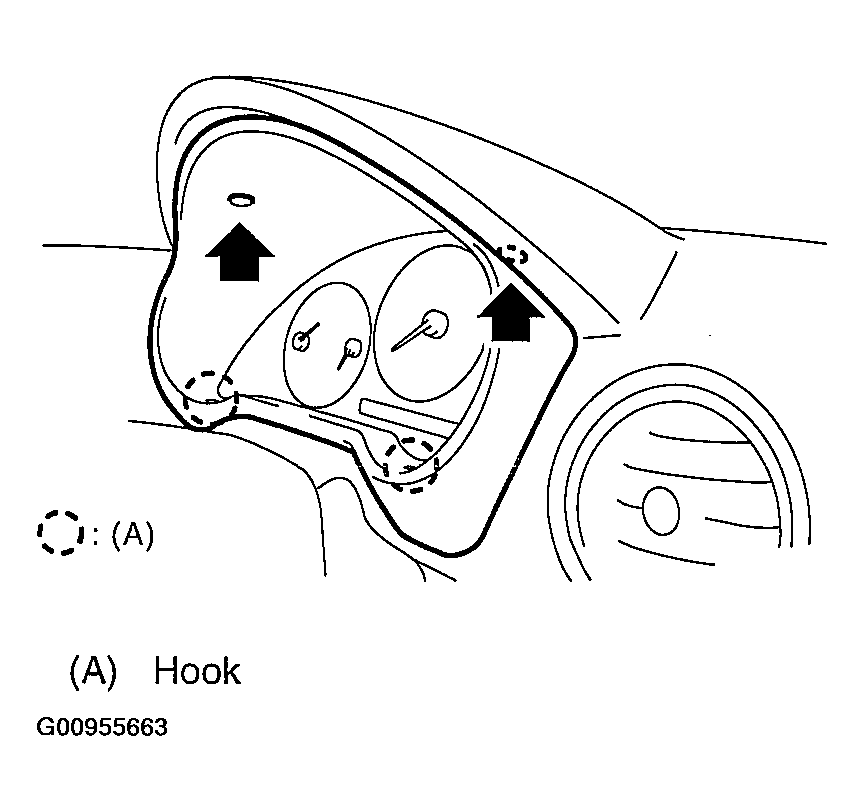

Fig 1: Removing Meter Visor
Courtesy of SUBARU OF AMERICA, INC.
Remove the screws of combination meter and pull out the meter toward you.

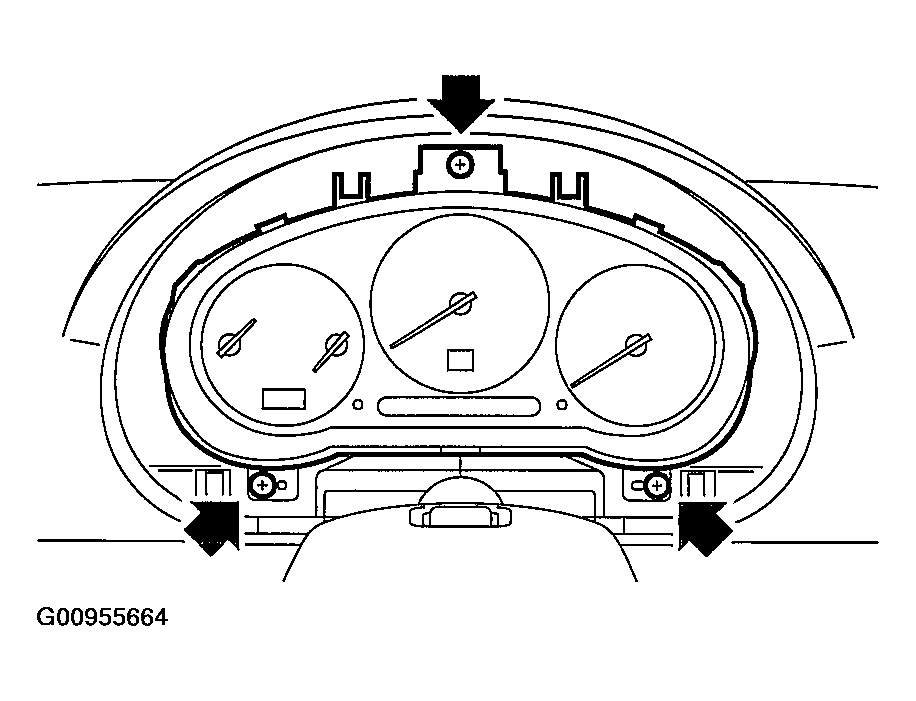

Fig 2: Removing Screws
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector in the upper area of combination meter to remove the meter.

CAUTION:

Be careful not to damage the meter or instrument panel.
Pay particular attention to avoid damaging the meter glass.
