Front Fog Light Bulb: Removal

WARNING: This page is about a different car, the 2004 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front fog light assembly. < Ref. to REMOVAL . >
Remove the back cover.

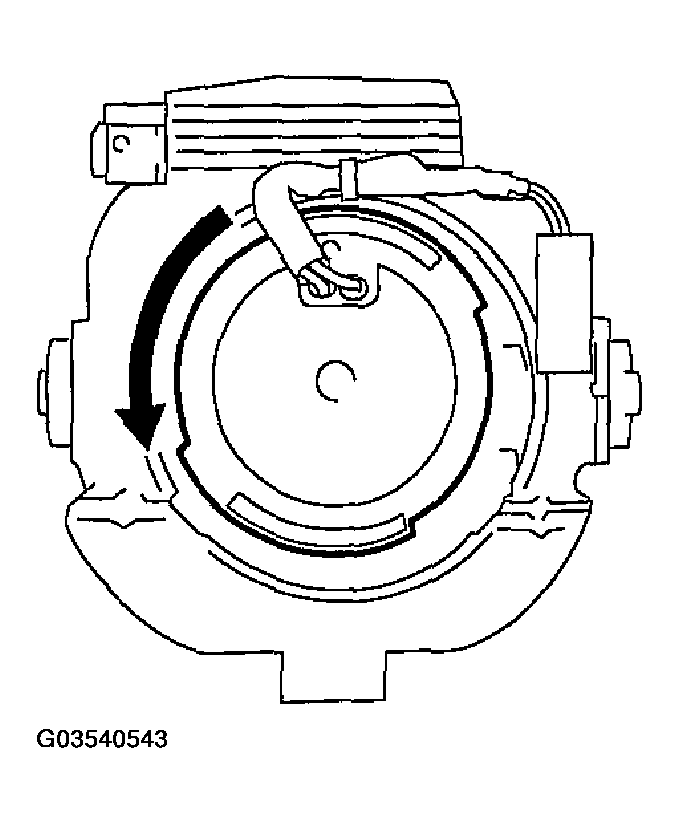

Fig 1: Identifying Back Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the spring retainer, and then detach the fog light bulb.

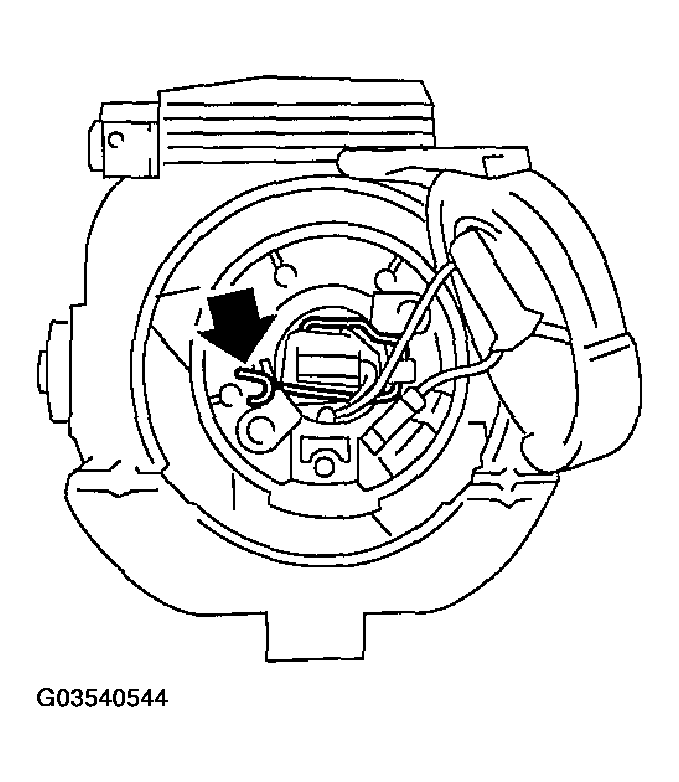

Fig 2: Identifying Spring Retainer
Courtesy of SUBARU OF AMERICA, INC.
