Rear Combination Light Assembly: Removal

WARNING: This page is about a different car, the 2004 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the two bolts, and then turn the socket and disconnect cord assembly to remove rear combination light.

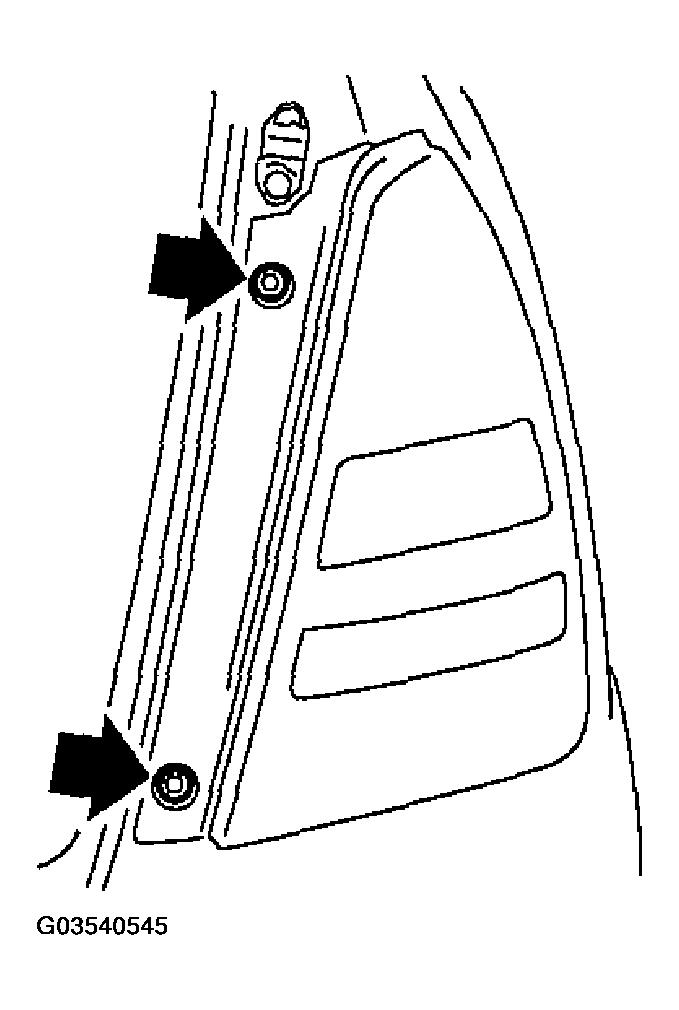

    Fig 1: Identifying Bolts (1 Of 2)
    G03540545Courtesy of SUBARU OF AMERICA, INC.

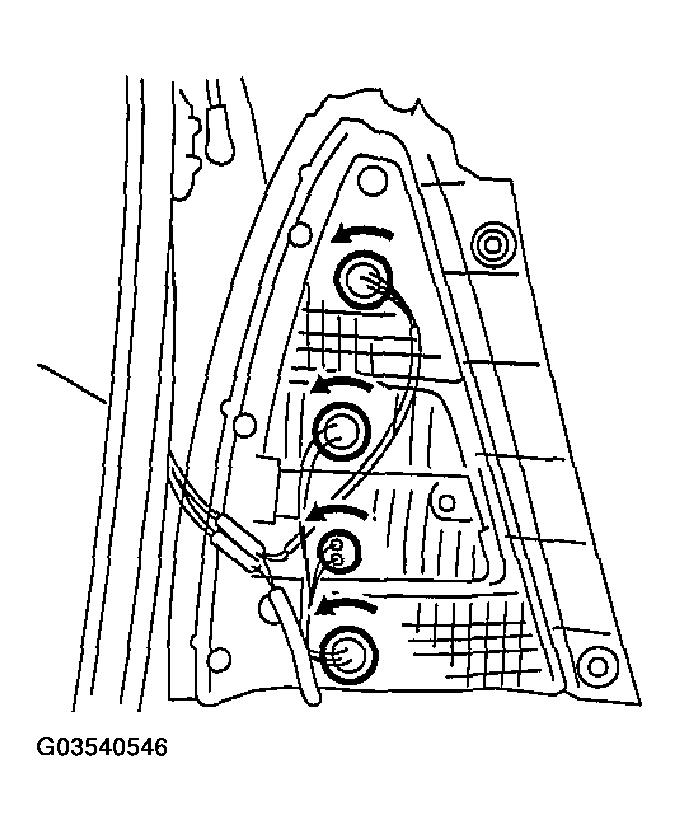

    Fig 2: Identifying Bolts (2 Of 2)
    G03540546Courtesy of SUBARU OF AMERICA, INC.
