MPT Model

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Set the range select lever to "P".
Using a plastic hammer, install reduction driven gear assembly and new washer, and tighten new drive pinion lock nut.
1. Tightening torque: 100 N.m (10.2 kgf-m, 73.8 ft-lb)

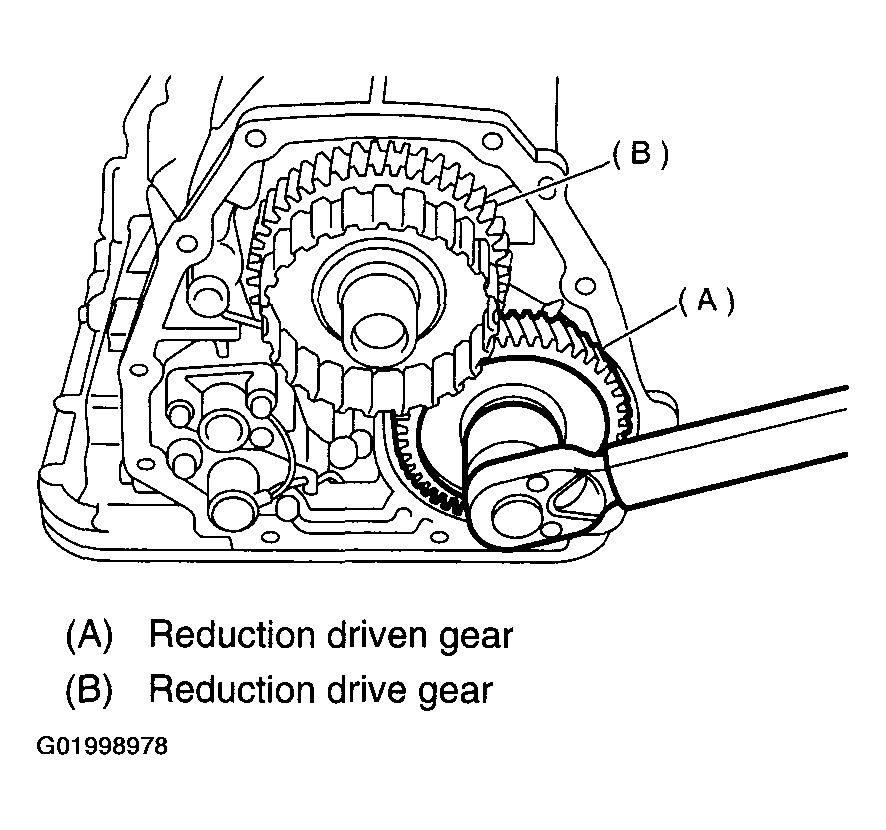

Fig 1: Installing Reduction Driven Gear Assembly & New Washer
Courtesy of SUBARU OF AMERICA, INC.
After tightening, stake the lock nut securely.
Combine the transmission case with the extension case, and install rear wheel speed sensor. See INSTALLATION , Extension Case.
Install the transmission assembly to the vehicle. See INSTALLATION , Automatic Transmission Assembly.
