Section 70 (Clutch System): Flywheel: Installation

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the flywheel and ST.

    ST 498497100 CRANKSHAFT STOPPER

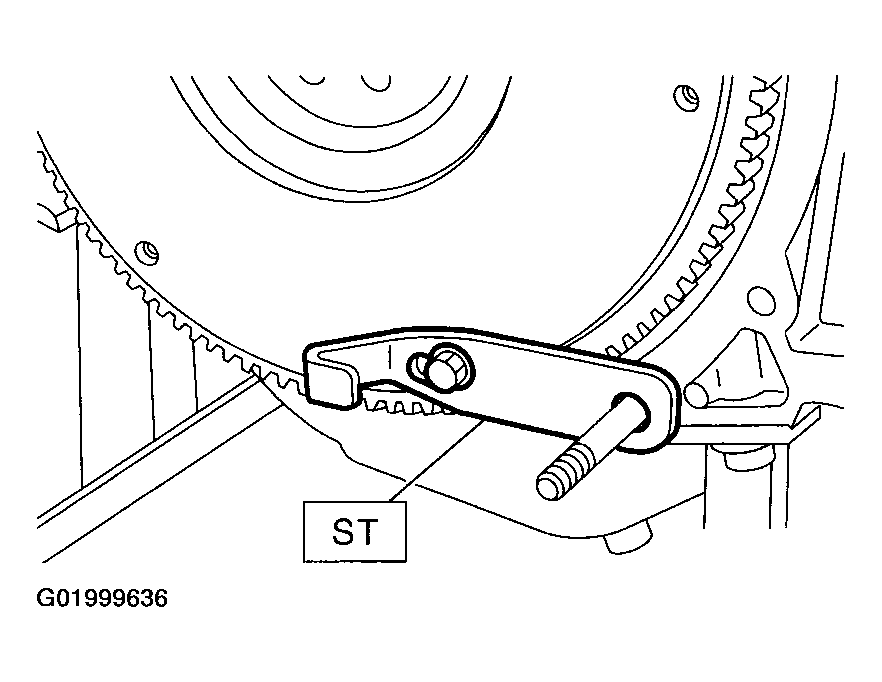

    Fig 1: Installing Flywheel & ST
    G01999636Courtesy of SUBARU OF AMERICA, INC.
  2. Tighten the flywheel attaching bolts to the specified torque.
    NOTE: Tighten the flywheel installing bolts gradually. Each bolt should be tightened to the specified torque in a crisscross method.
    1. Tightening torque:  72 N.m (7.3 kgf-m, 52.8 ft-lb)

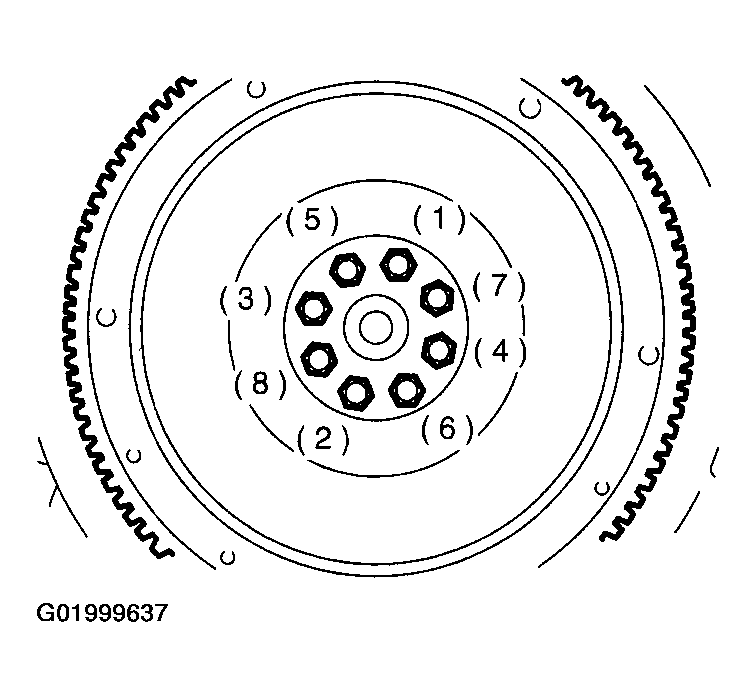

    Fig 2: Tightening Flywheel Attaching Bolts To Specified Torque
    G01999637Courtesy of SUBARU OF AMERICA, INC.
  3. Install the clutch disc and cover. See INSTALLATION  , Clutch Disc and Cover.
  4. Install the transmission assembly. See INSTALLATION , Manual Transmission Assembly.
