Section 70 (Clutch System): Flywheel: Removal
WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the transmission assembly. See REMOVAL , Manual Transmission Assembly.
- Remove the clutch cover and clutch disc. See REMOVAL
, Clutch Disc and Cover.CAUTION:
- Take care not to allow oil on the clutch disc facing.
- Do not disassemble either the clutch cover or clutch disc.

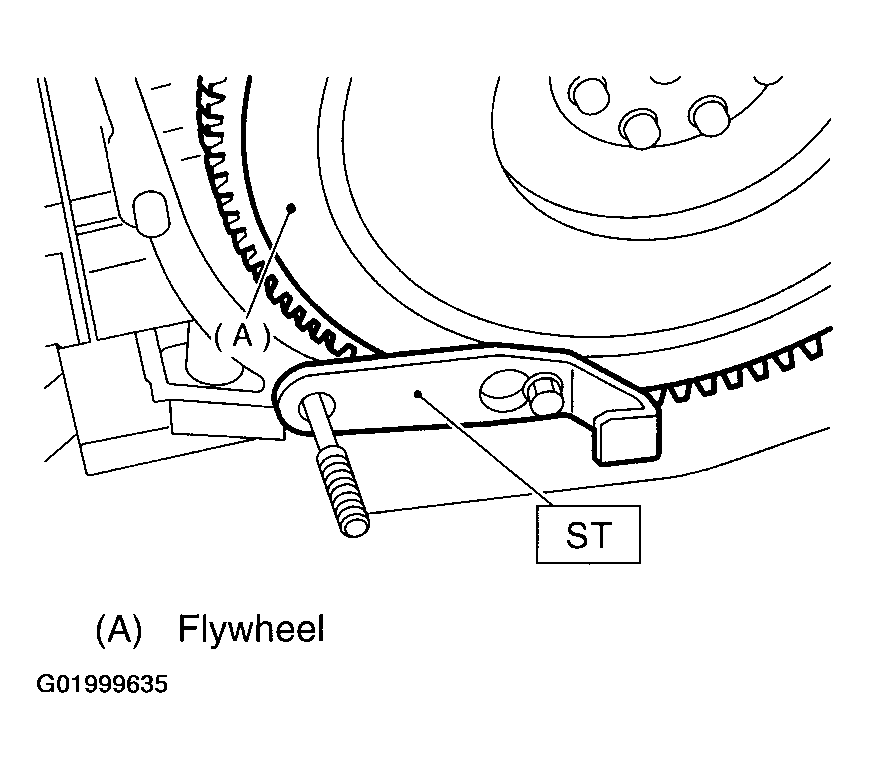

- Using ST, remove the flywheel.
ST 498497100 CRANKSHAFT STOPPER
