Operating Cylinder: Installation

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.
NOTE: Before installing the operating cylinder, apply grease (SUNLIGHT 2: P/N 003602010) to the contact point of release lever and operating cylinder.

Tightening torque:
1. T1: 18 N.m (1.8 kgf-m, 13.0 ft-lb)
2. T2: 37 N.m (3.8 kgf-m, 27.5 ft-lb)

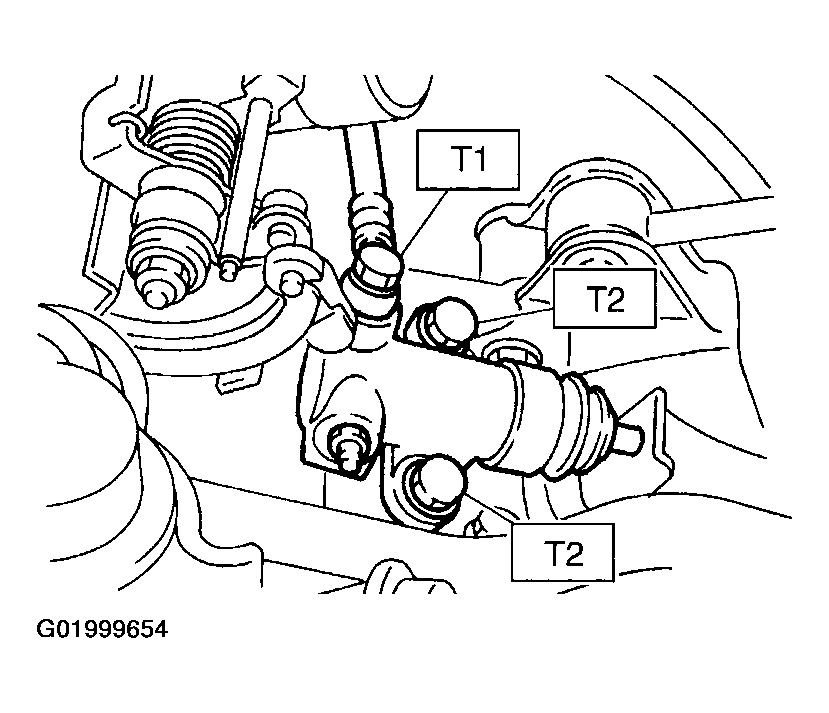

Fig 1: Removing Operating Cylinder From Transmission (Non-Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.

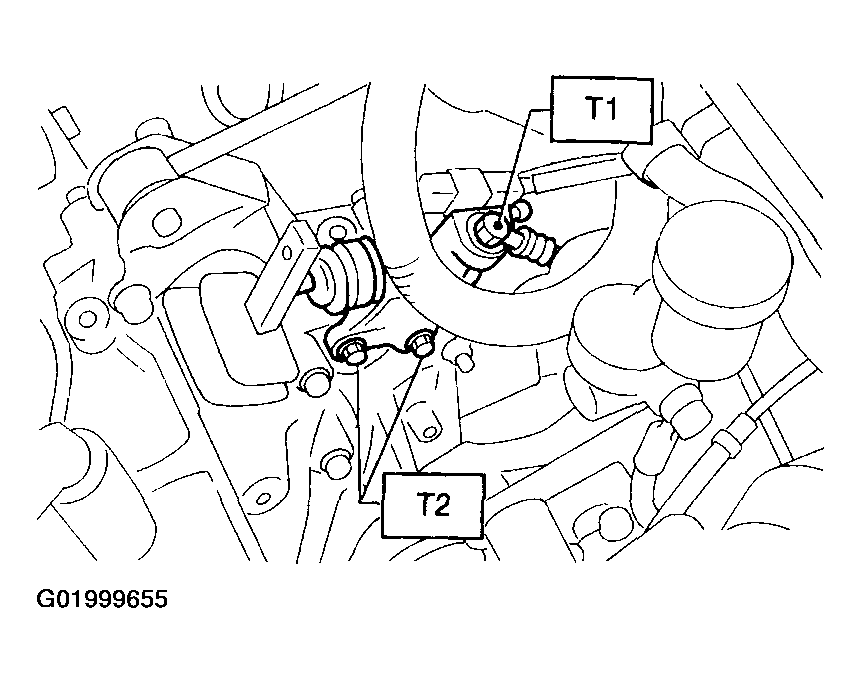

Fig 2: Removing Operating Cylinder From Transmission (Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
- Be sure to install the clutch hose with the mark side facing upward.
- Be careful not to twist the clutch hose during installation.

  Fig 3: Installing Clutch Hose
  Courtesy of SUBARU OF AMERICA, INC.
After bleeding air from the operating cylinder, ensure that the clutch operates properly. See CLUTCH FLUID AIR BLEEDING .
