Operating Cylinder: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner case and air intake duct (Non-turbo model). See REMOVAL , Air Cleaner Case and REMOVAL , Air Intake Duct.
Remove the intercooler (Turbo model). See REMOVAL , Intercooler.
Remove the clutch hose from operating cylinder.
CAUTION: Cover the hose joint to prevent clutch fluid from flowing out.

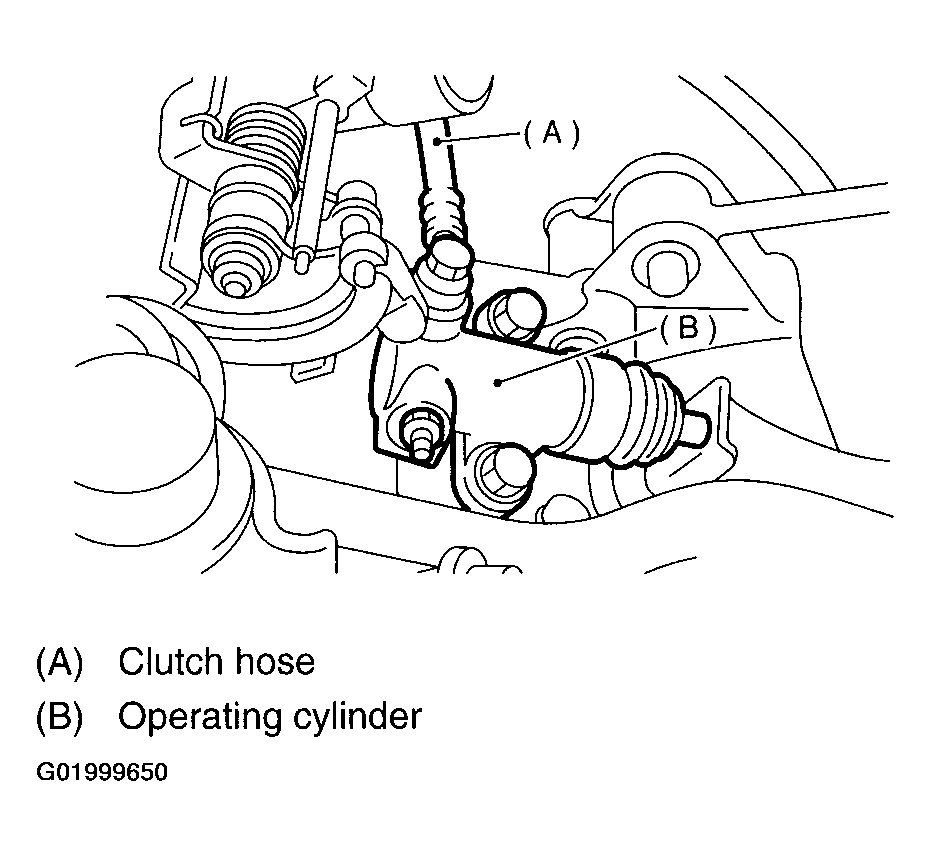

Fig 1: Removing Clutch Hose From Operating Cylinder (Non-Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.

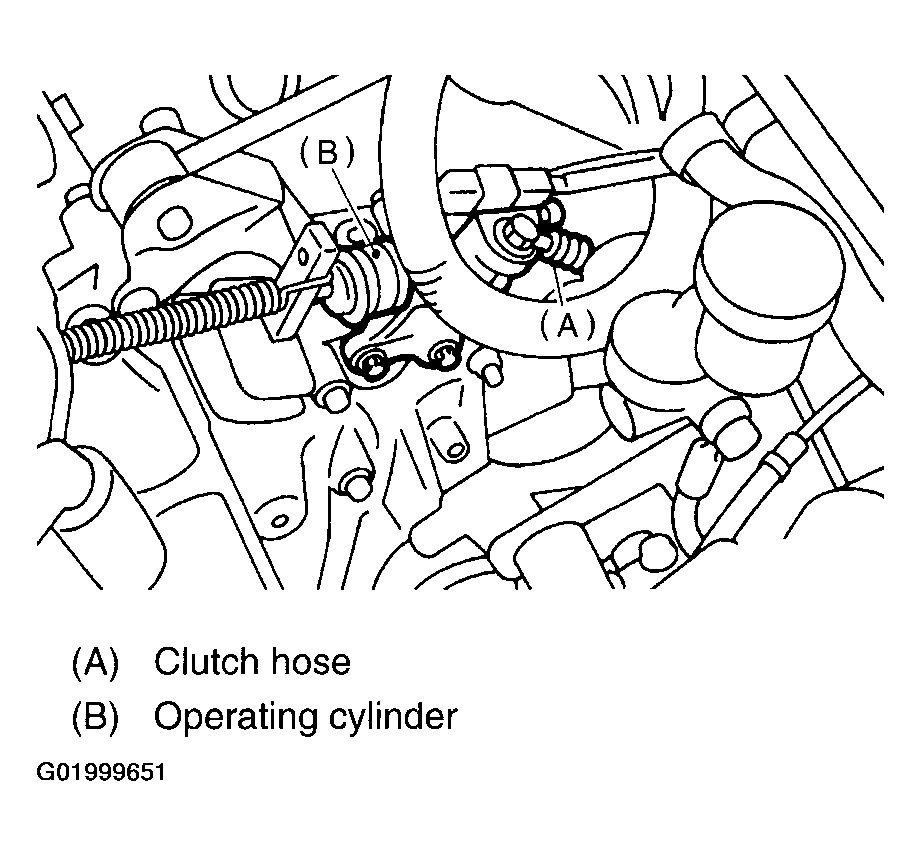

Fig 2: Removing Clutch Hose From Operating Cylinder (Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
Remove the operating cylinder from transmission.

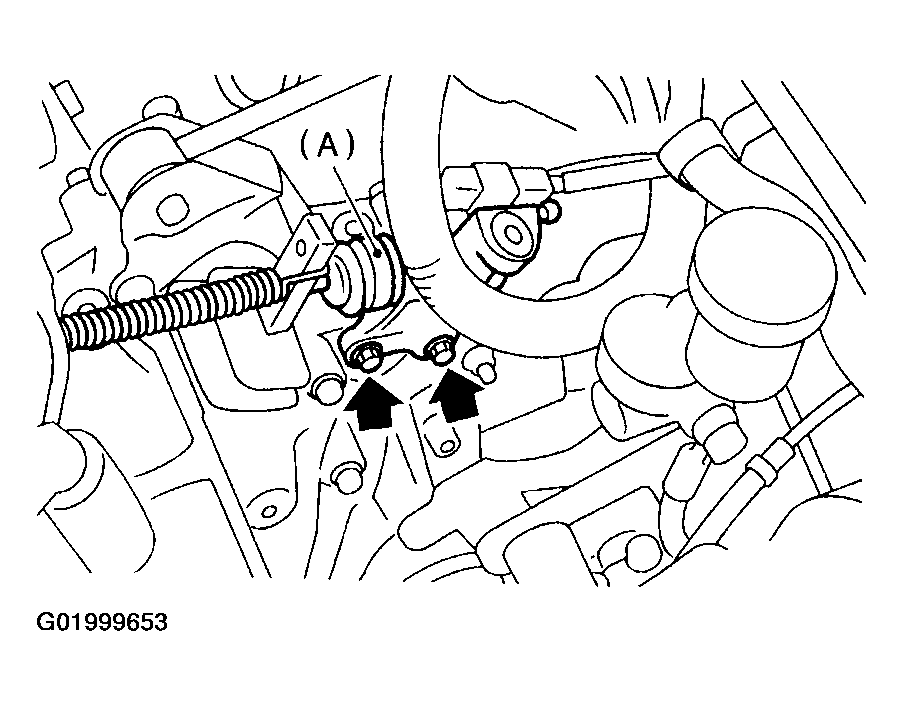

Fig 3: Removing Operating Cylinder From Transmission (Non-Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.

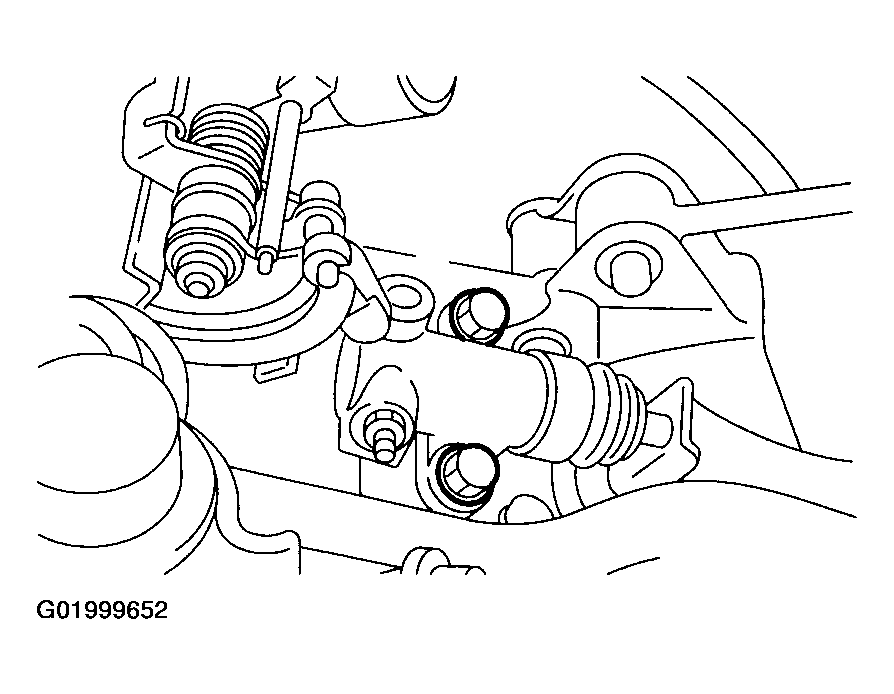

Fig 4: Removing Operating Cylinder From Transmission (Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
