Turbo Model

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Install the release bearing on transmission.
Insert the release fork into release bearing tab.

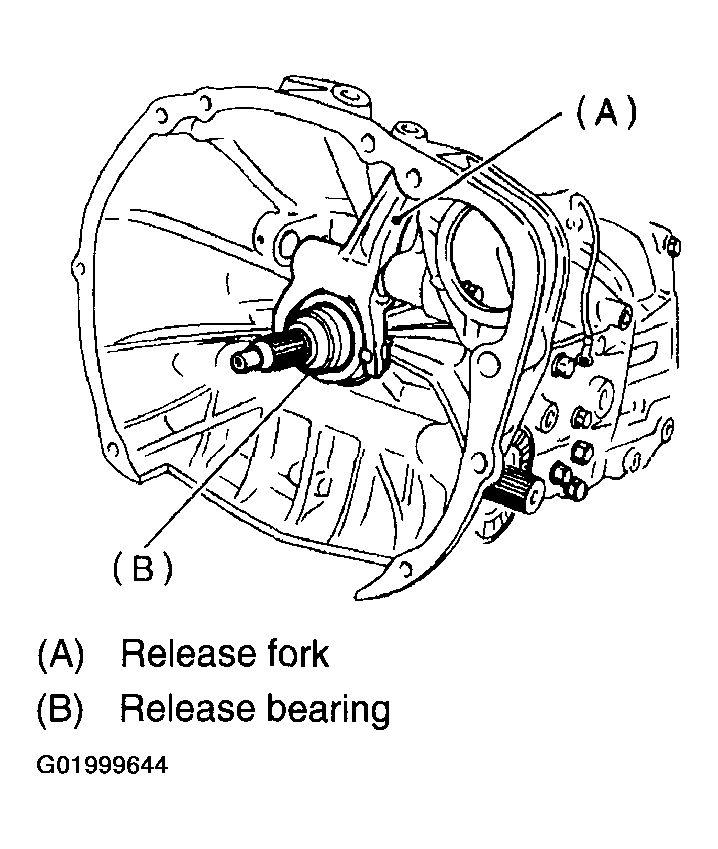

Fig 1: Inserting Release Fork Into Release Bearing Tab
Courtesy of SUBARU OF AMERICA, INC.
Apply grease to the specified points:
- Spline FX2200
- Shaft SUNLIGHT 2

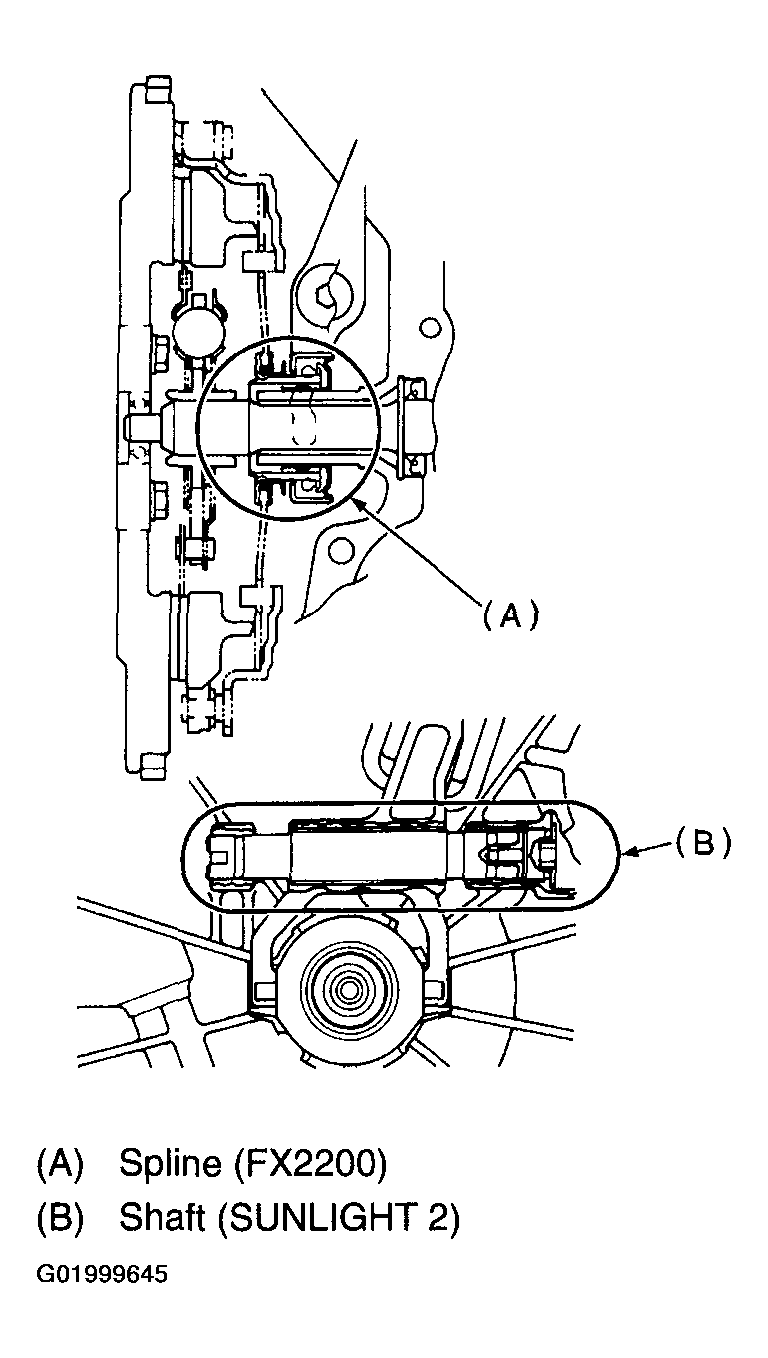

Fig 2: Applying Grease To Spline & Shaft
Courtesy of SUBARU OF AMERICA, INC.
Insert the release fork shaft into release fork.
CAUTION: Make sure the cutout portion of the release fork shaft contacts spring pin.

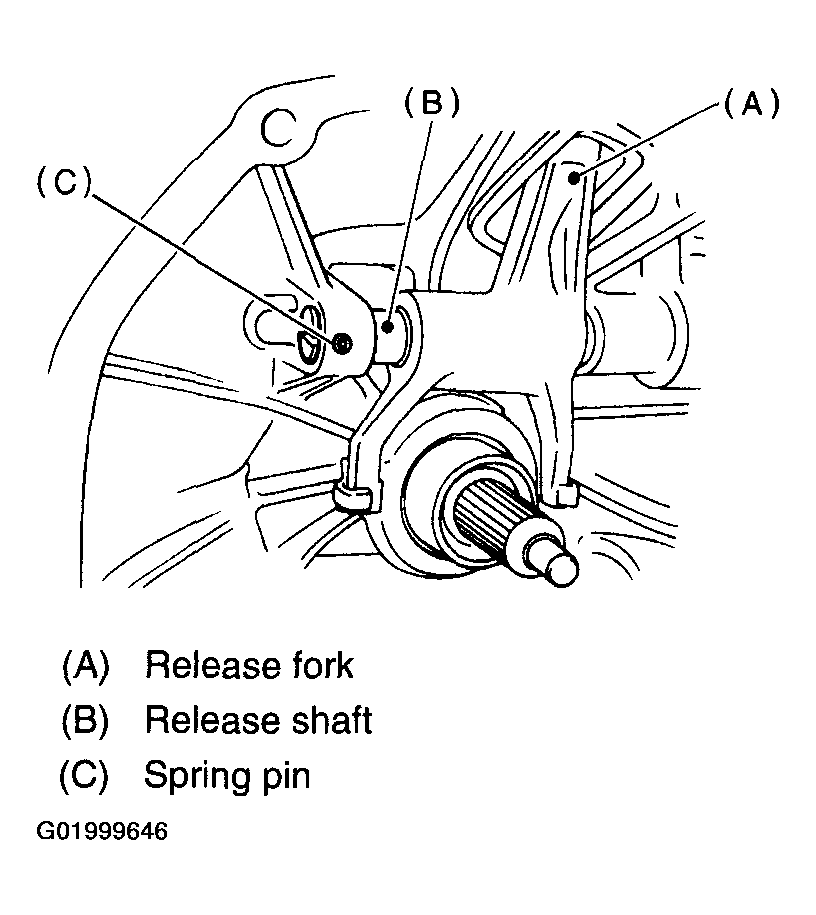

Fig 3: Inserting Release Fork Shaft Into Release Fork
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly. See INSTALLATION , Manual Transmission Assembly.
