Transfer Case

WARNING: This page is about a different variant/trim than selected.

Neutral position adjustment

TRANSFER CASE ADJUSTING SHIM THICKNESS SPECIFICATIONS

Part No.	Thickness mm (in)
32190AA000	0.15 (0.0059)
32190AA010	0.30 (0.0118)

Fig 1: Reverse Accent Shaft Part No. And Remarks Chart

Courtesy of SUBARU OF AMERICA, INC.

Reverse check plate adjustment

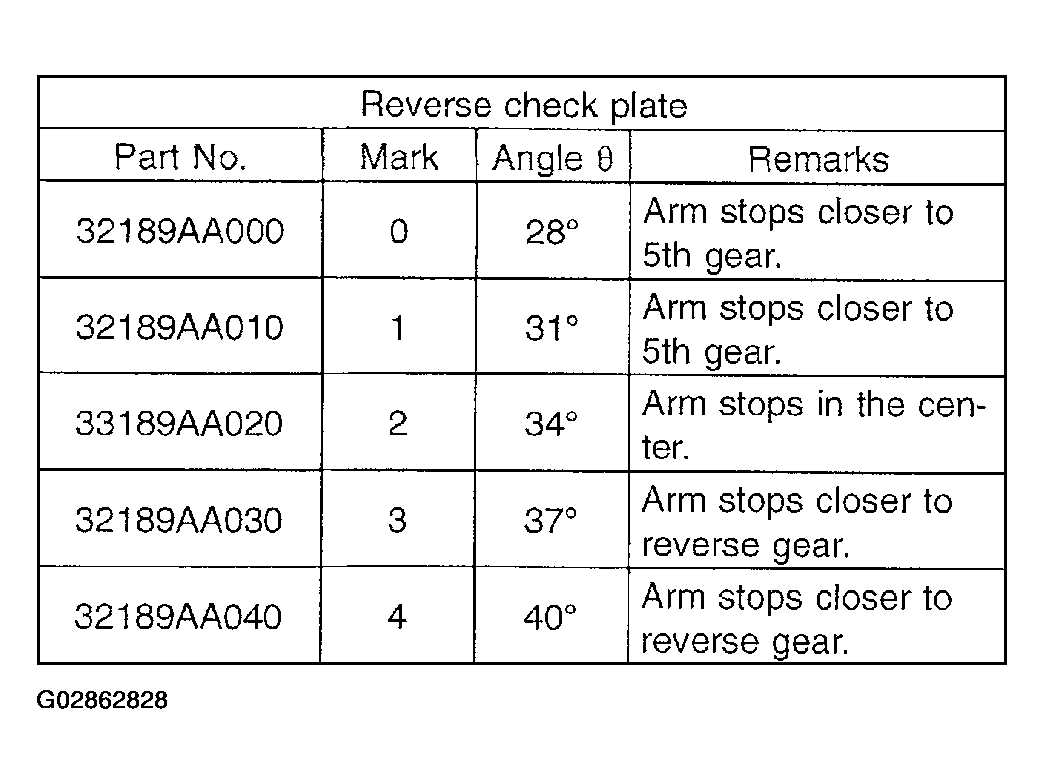

Fig 2: Reverse Check Plate Part No. And Remarks Chart

Courtesy of SUBARU OF AMERICA, INC.
