Transmission Case Assembly

WARNING: This page is about a different variant/trim than selected.

Drive pinion shim adjustment

Hypoid gear backlash: 0.13-0.18 mm (0.0051-0.0071 in)

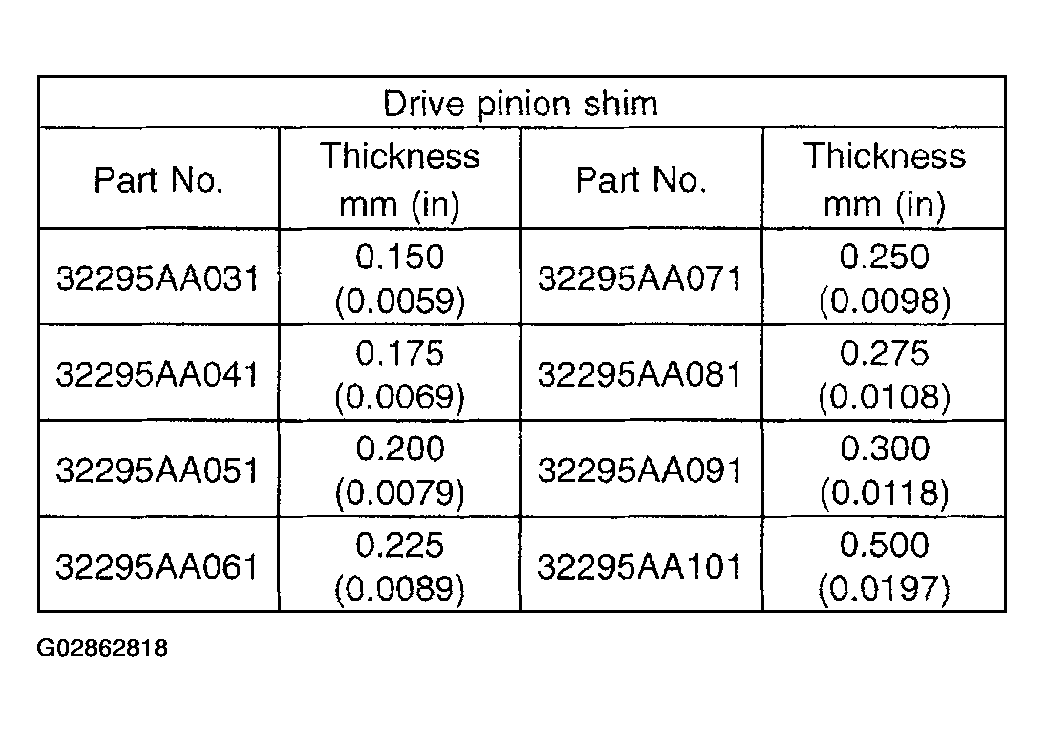

Fig 1: Drive Pinion Shim Thickness Specifications Chart

Courtesy of SUBARU OF AMERICA, INC.

Selection of main shaft rear plate

Fig 2: Main Shaft Rear Plate Dimension Specification Chart

Courtesy of SUBARU OF AMERICA, INC.

Input shaft holder adjustment

Fig 3: Input Shaft Holder Dimension Specification Chart

Courtesy of SUBARU OF AMERICA, INC.
