Extension Case

WARNING: This page is about a different variant/trim than selected.
  1. Using ST, install oil seal to extension case. Refer to REMOVAL under OIL SEAL  .
    CAUTION: Use new oil seal.
  2. Install shift bracket to extension case.

    Tightening torque:  25 N.m (2.5 kgf-m, 18.1 ft-lb)

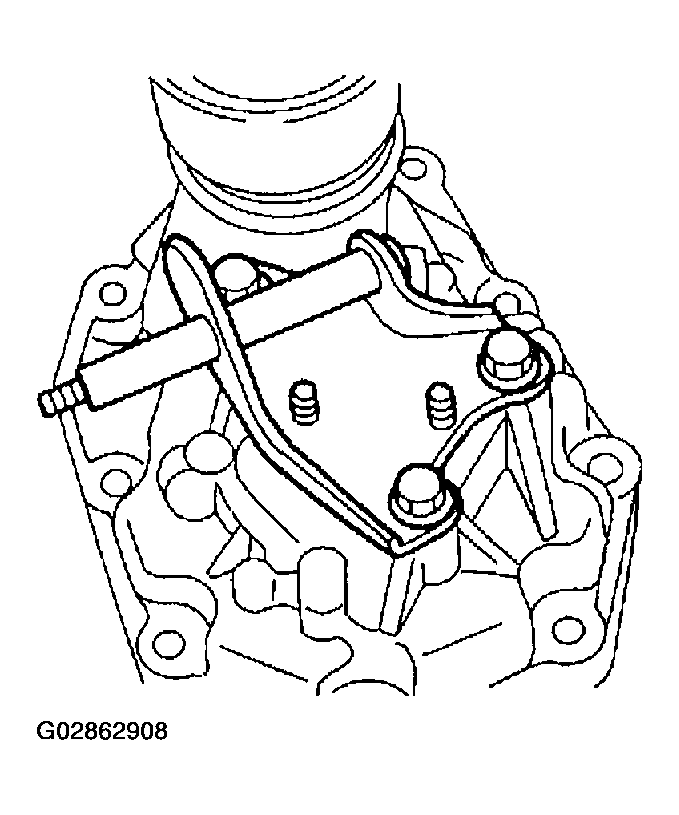

    Fig 1: Installing Shift Bracket To Extension Case
    G02862908Courtesy of SUBARU OF AMERICA, INC.
  3. Install transfer drive gear to extension case. Refer to INSTALLATION under TRANSFER DRIVE GEAR  .
