Extension Case

WARNING: This page is about a different variant/trim than selected.
  1. Remove transfer drive gear assembly. Refer to REMOVAL under TRANSFER DRIVE GEAR  .
  2. Remove shift bracket.

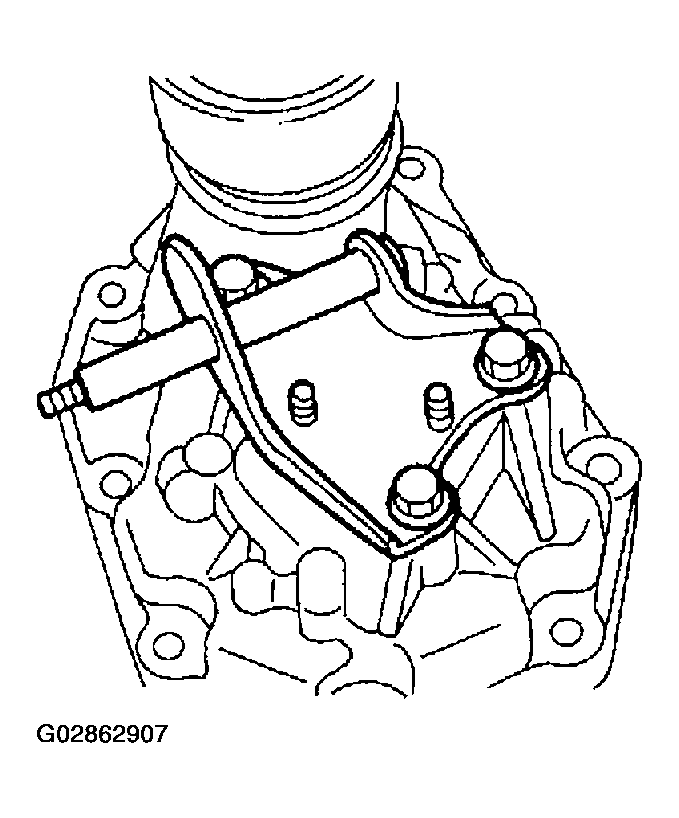

    Fig 1: Removing Shift Bracket
    G02862907Courtesy of SUBARU OF AMERICA, INC.
  3. Remove oil seal from extension case. Refer to REMOVAL under OIL SEAL  .
