Clutch Disc and Cover: Installation

WARNING: This page is about a different variant/trim than selected.

Install flywheel and ST.
ST 498497100: CRANKSHAFT STOPPER

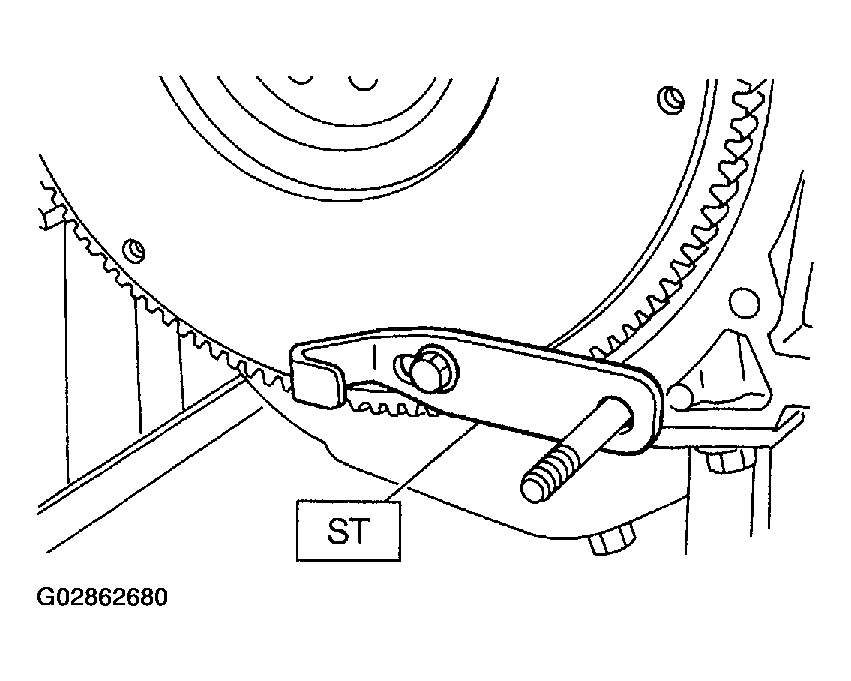

Fig 1: Installing Flywheel And ST
Courtesy of SUBARU OF AMERICA, INC.
Insert ST into the clutch disc and install them on the flywheel by inserting the ST end into the pilot bearing.
ST 499747100: CLUTCH DISC GUIDE

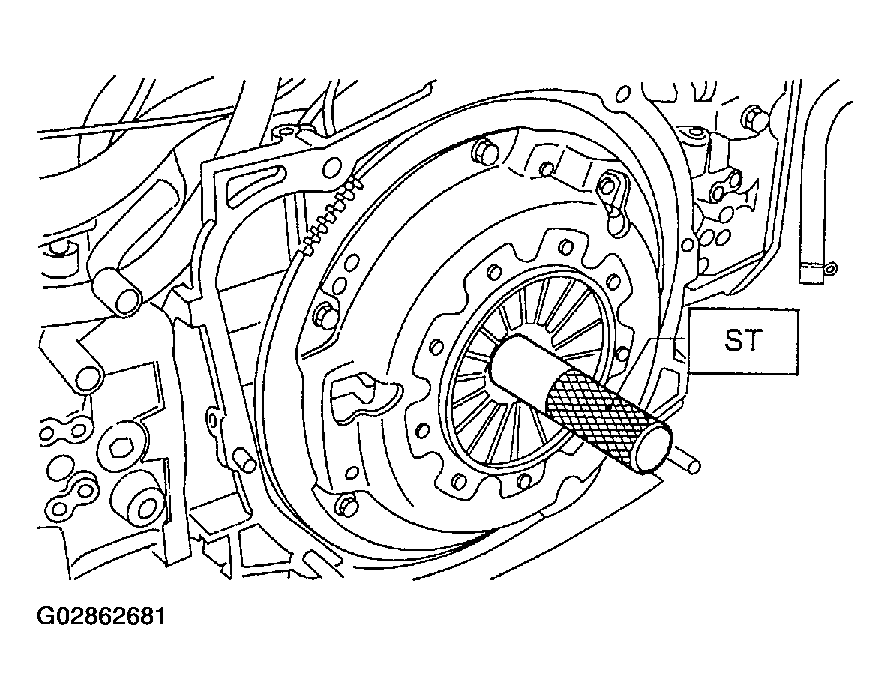

Fig 2: Installing Clutch Cover On Flywheel And Tightening Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install clutch cover on flywheel and tighten bolts to the specified torque.
NOTE:
- When installing the clutch cover on the flywheel, position the clutch cover so that there is a gap of 120° or more between "0" marks on the flywheel and clutch cover. ("0" marks indicate the directions of residual unbalance.)
- Note the front and rear of the clutch disc when installing.
- Temporarily tighten bolts by hand. Each bolt should be tightened to the specified torque in a crisscross fashion.
Tightening torque: 15.7 N.m (1.6 kgf-m, 11.6 ft-lb)

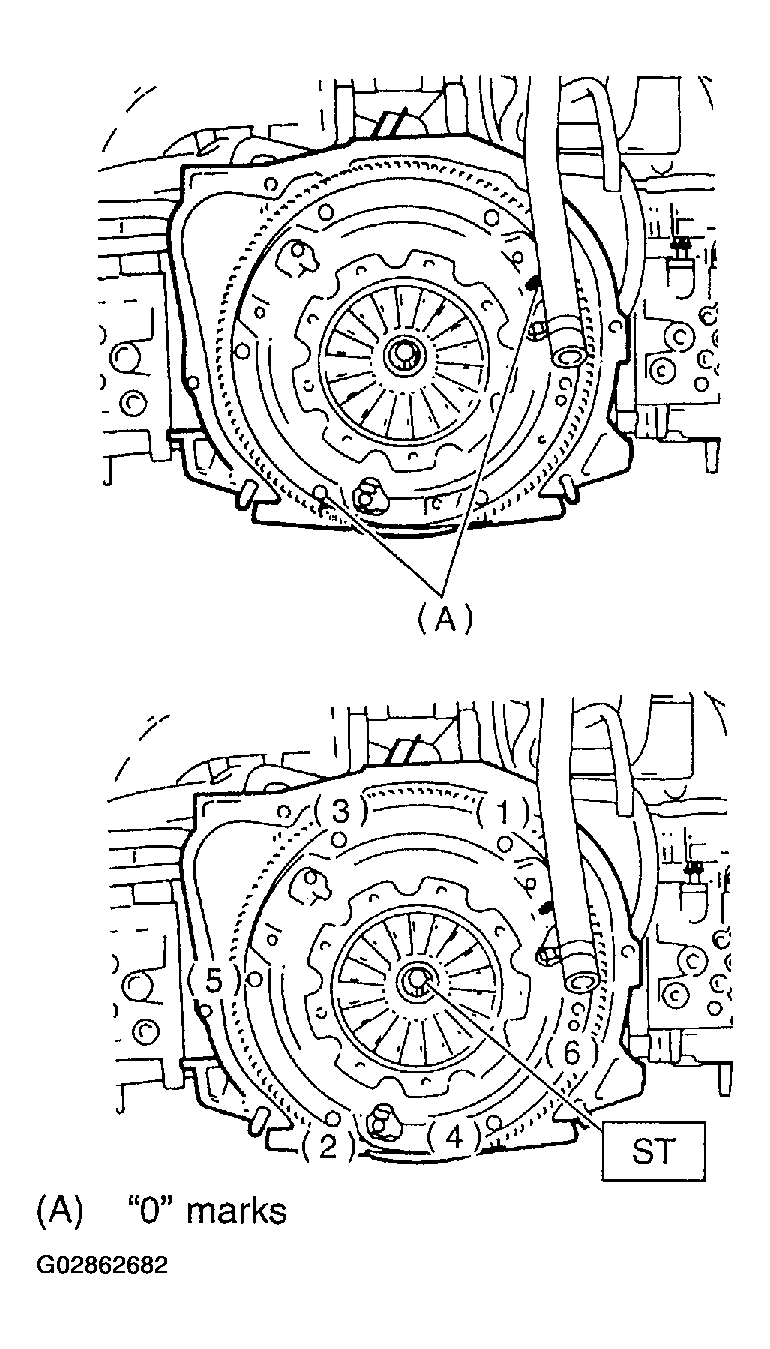

Fig 3: Aligning Correct Position Of Clutch Cover With Flywheel
Courtesy of SUBARU OF AMERICA, INC.
Remove ST.
ST 499747100: CLUTCH DISC GUIDE
Install transmission assembly. Refer to INSTALLATION under MANUAL TRANSMISSION ASSEMBLY .
