Clutch Pedal: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove clutch switches.
Remove clips, assist spring, rod and bushing.

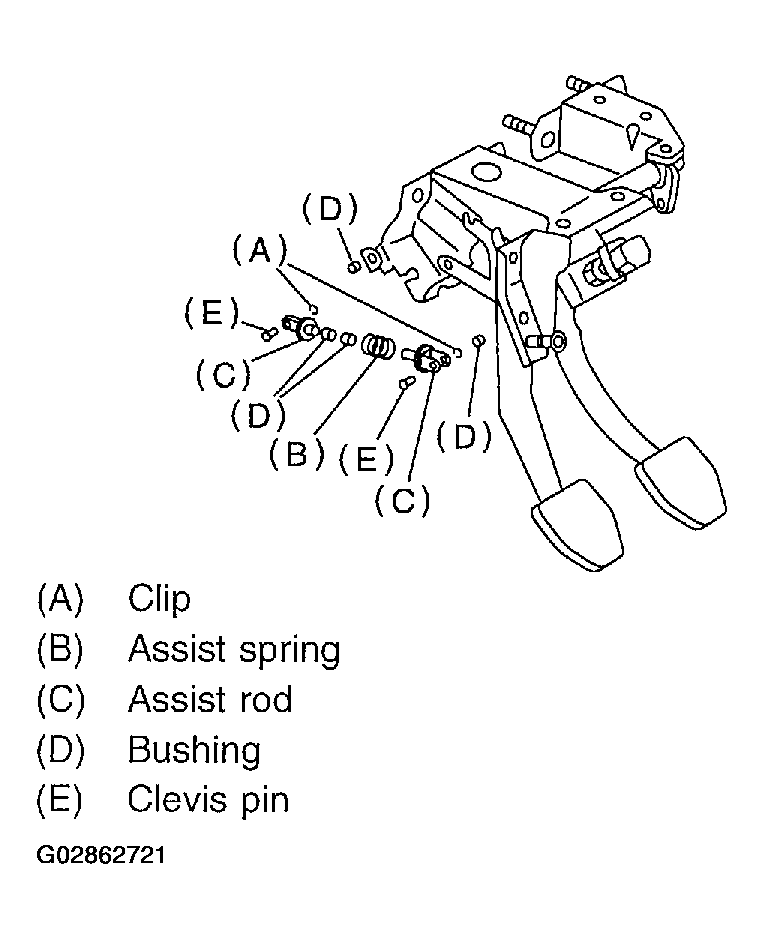

Fig 1: Removing Clips, Assist Spring, Rod And Bushing
Courtesy of SUBARU OF AMERICA, INC.
Remove spring pin and lever.

Fig 2: Removing Spring Pin And Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove clutch pedal and bushings.

Fig 3: Removing Clutch Pedal And Bushings
Courtesy of SUBARU OF AMERICA, INC.
Remove stopper, clip, O-ring, rod S, and then remove spring and bushing S.

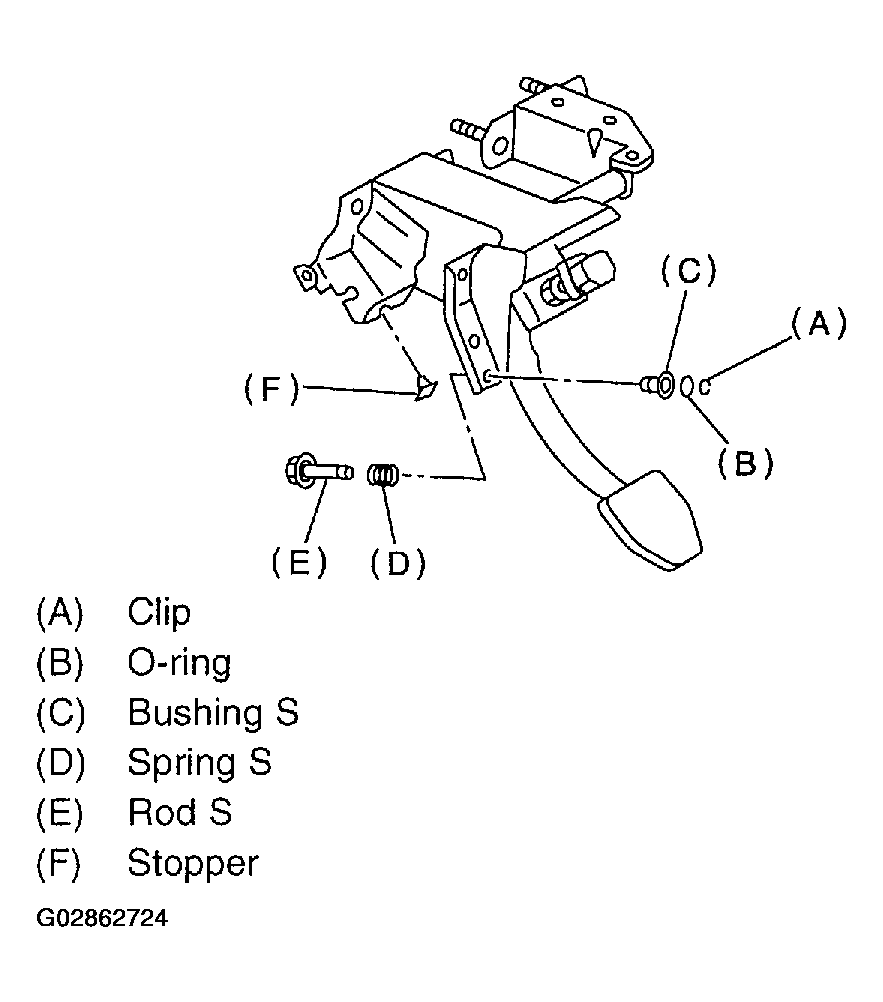

Fig 4: Removing Stopper, Clip, O-Ring, Rod S, Spring And Bushing S
Courtesy of SUBARU OF AMERICA, INC.
Remove stoppers from clutch pedal.
Remove clutch pedal pad.
