Clutch Assembly

WARNING: This page is about a different variant/trim than selected.

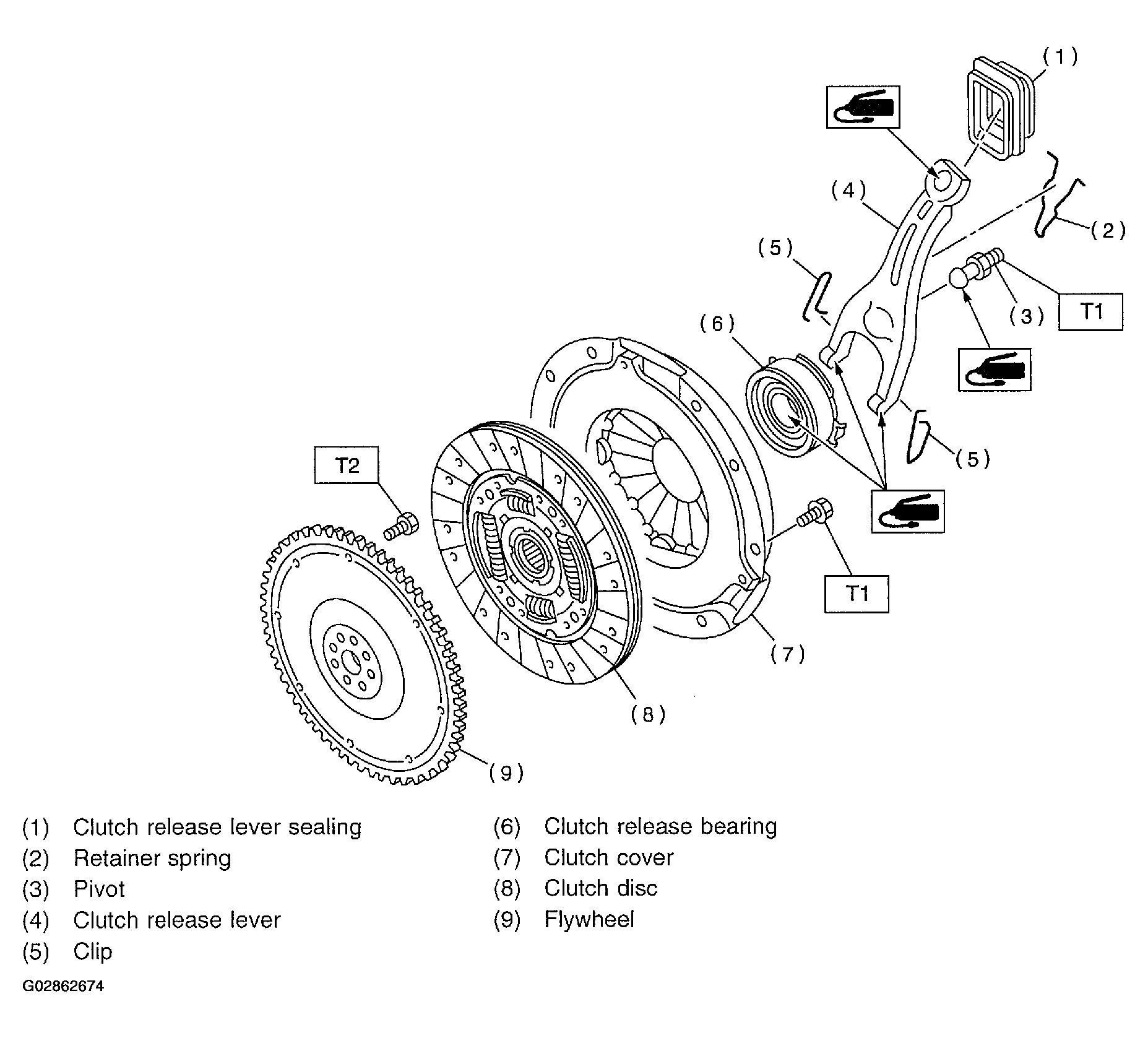

Fig 1: Identifying Clutch Assembly Components
G02862674Courtesy of SUBARU OF AMERICA, INC.
