General Diagnostic Table: Inspection: Clutch
WARNING:
This page is about a different variant/trim than selected.

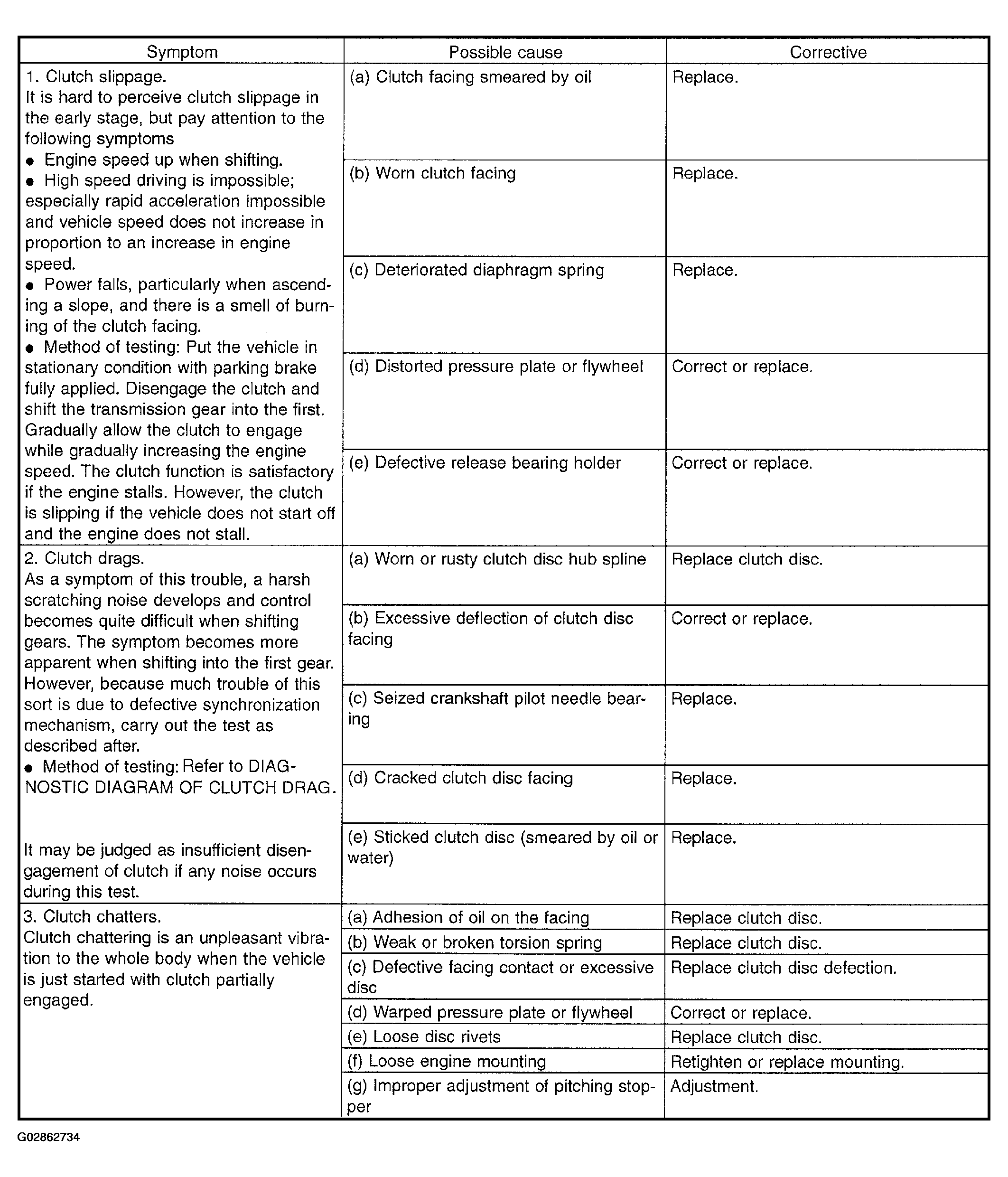

Fig 1: Clutch Problem Symptom Diagnostic Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

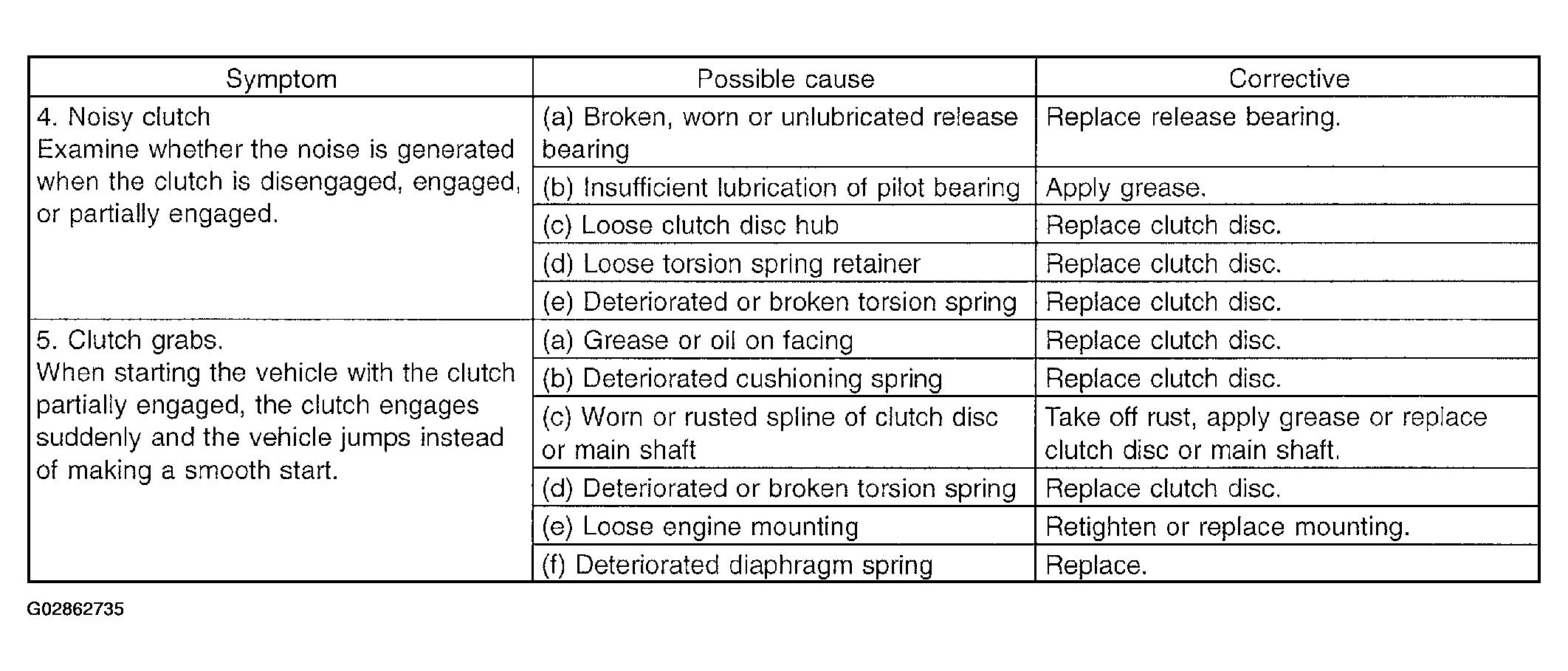

Fig 2: Clutch Problem Symptom Diagnostic Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
