Release Bearing and Lever: Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before or during assembling, lubricate the following points with a light coat of grease.
  • Contact surface of lever and pivot
  • Contact surface of lever and bearing
  • Transmission main shaft spline (Use grease containing molybdenum disulfide).
  • Contact surface of lever and operating cylinder
  1. While pushing release lever to pivot and twisting it to both sides, fit retainer spring onto the constricted portion of pivot.
    NOTE:
    • Apply grease (SUNLIGHT 2: P/N 003602010) to contact point of release lever and operating cylinder. Refer to COMPONENT under GENERAL DESCRIPTION .
    • Confirm that retainer spring is securely fitted by observing it through the main case hole.

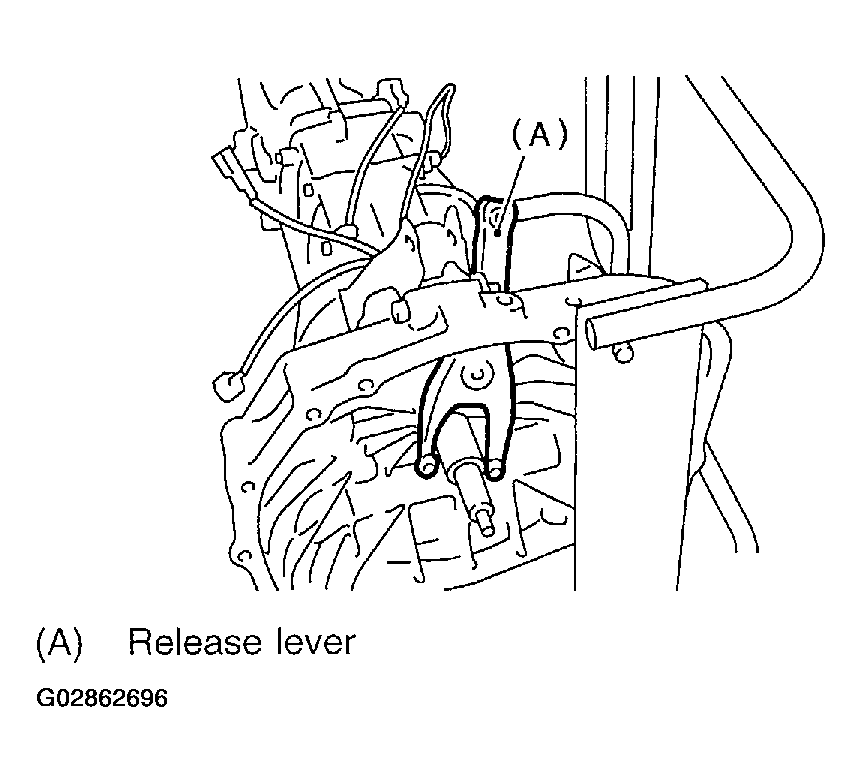

    Fig 1: Installing Release Lever
    G02862696Courtesy of SUBARU OF AMERICA, INC.
  2. Install release bearing and fasten it with two clips.
  3. Install release lever seal.

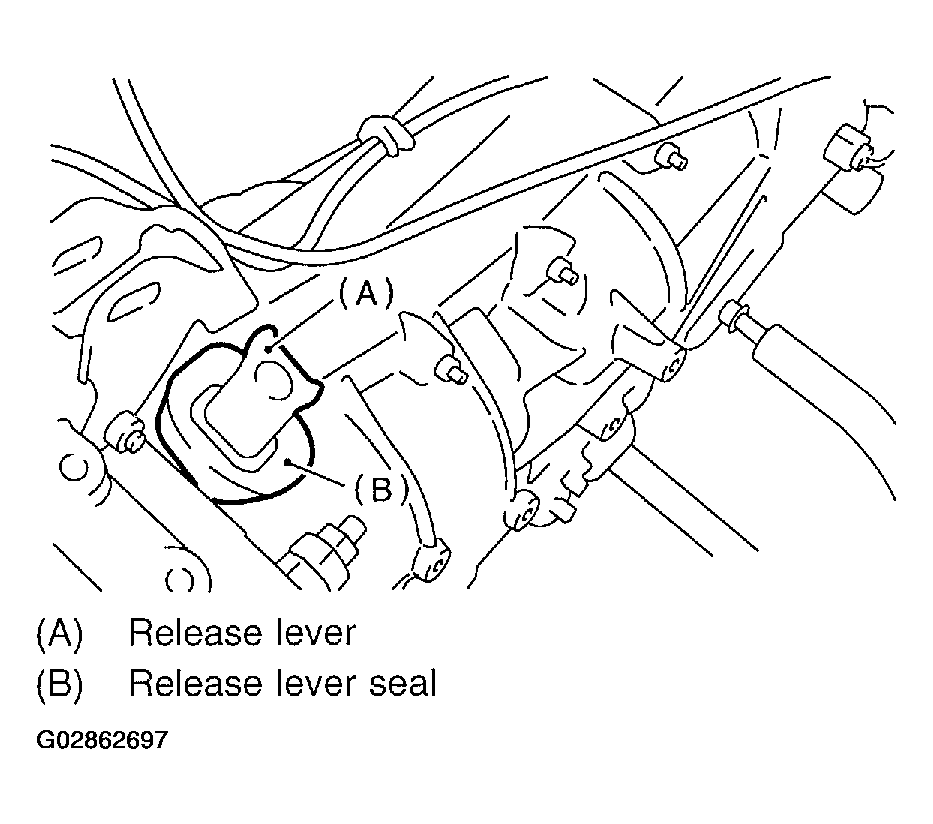

    Fig 2: Installing Release Lever Seal
    G02862697Courtesy of SUBARU OF AMERICA, INC.
  4. Install transmission assembly. Refer to INSTALLATION under MANUAL TRANSMISSION ASSEMBLY .
