Identification & Specifications: Specifications: Dimensions

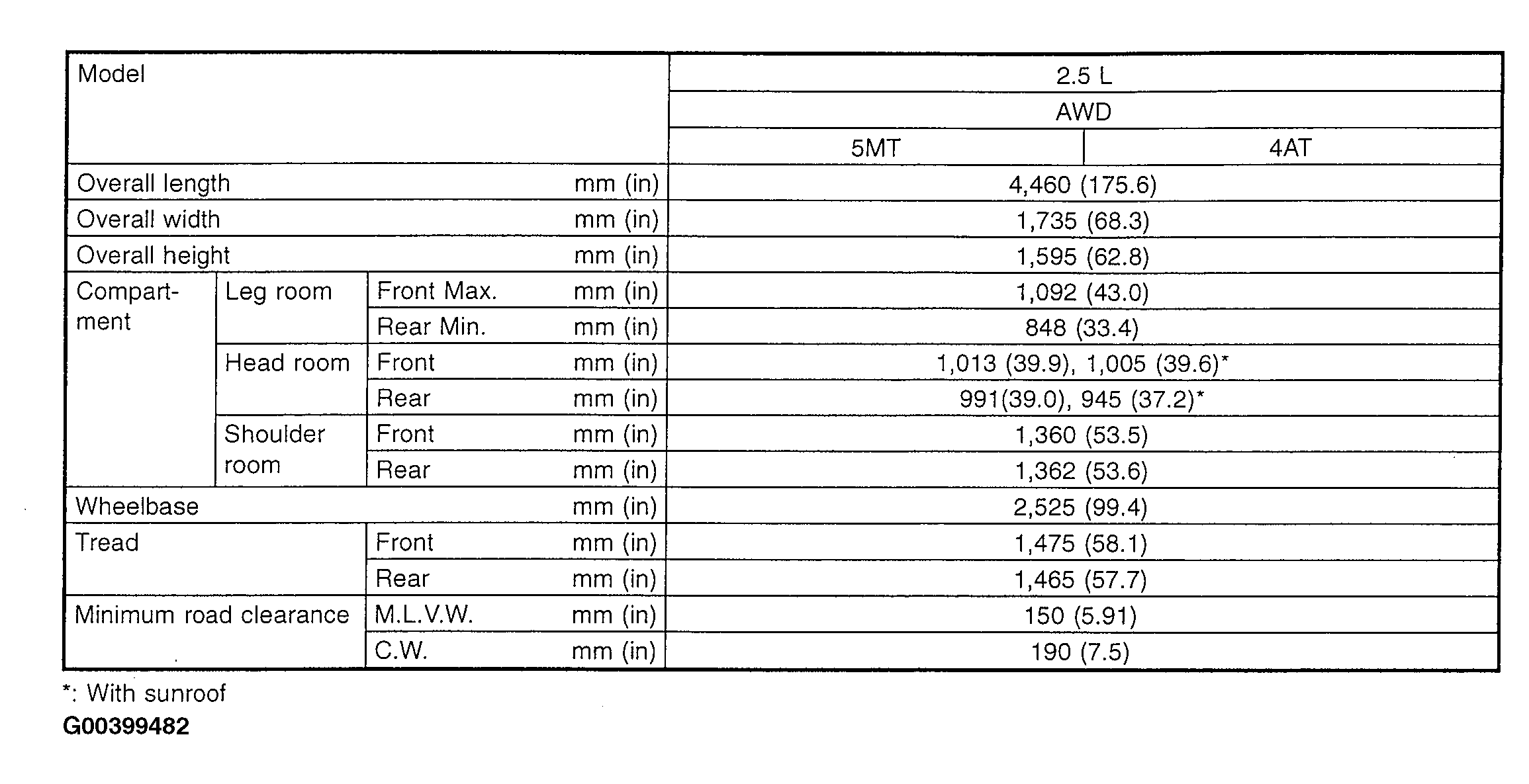

Fig 1: Dimension Specifications Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
