Identification & Specifications: Specifications: Electrical

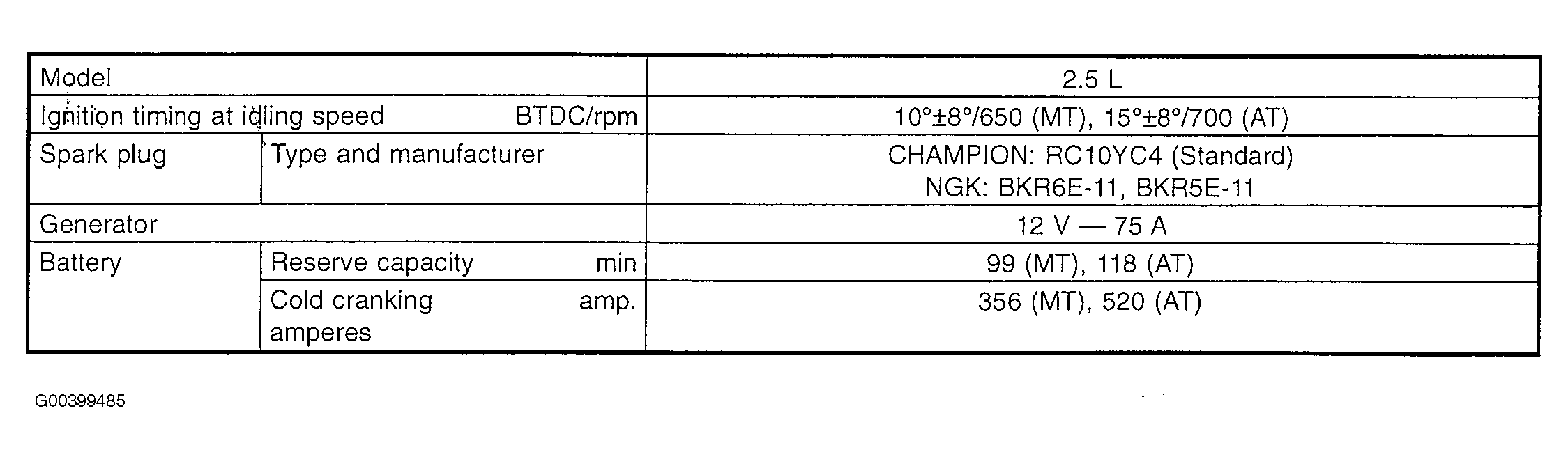

Fig 1: Electrical Specifications Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
