General Diagnostic Table: Inspection: Notes

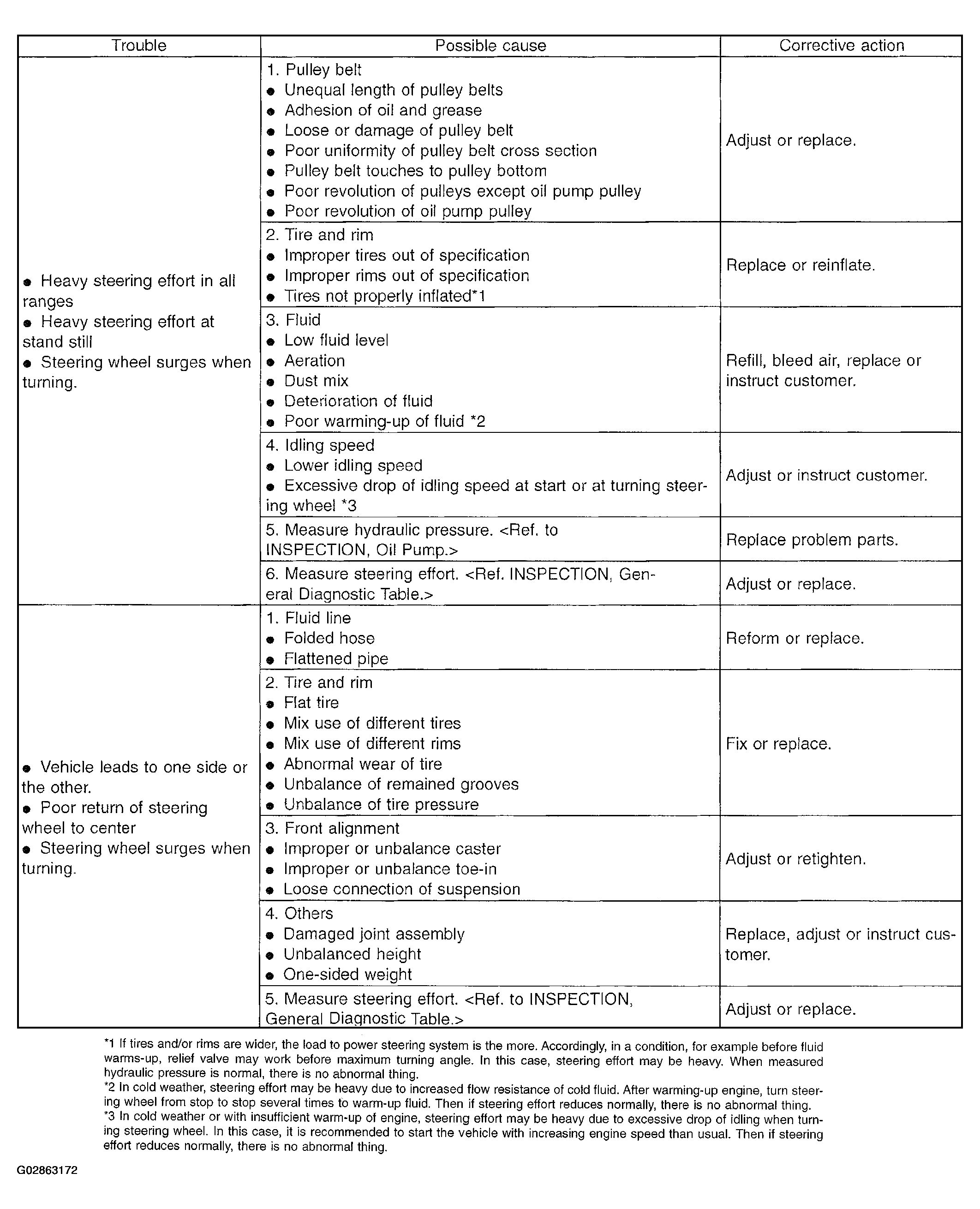

Fig 1: Inspecting General Diagnostic Table
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
