Front Bushing

CAUTION: When install bushing, turn installer and remover set plunger upside down and press it until the plunger end surface contacts the trailing link end surface.

Using installer and remover set, press bushing into trailing link. See Fig 1

CAUTION: Install front bushing in the proper direction, as shown in Fig 2.

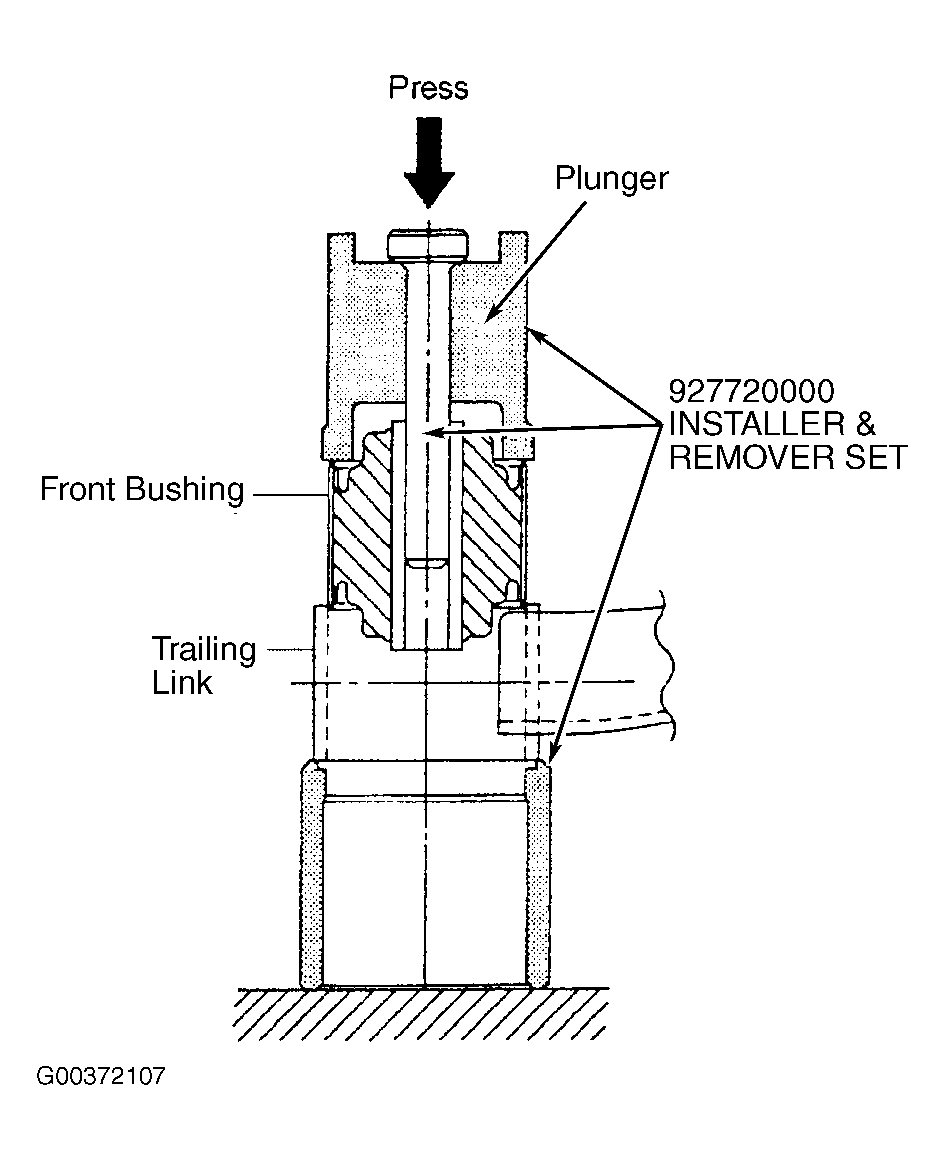

Fig 1: Pressing Bushing Into Trailing Link

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Installing Front Bushing In Proper Direction

Courtesy of SUBARU OF AMERICA, INC.
