Select Lever Cannot Be Shift Locked

WIRING DIAGRAM:

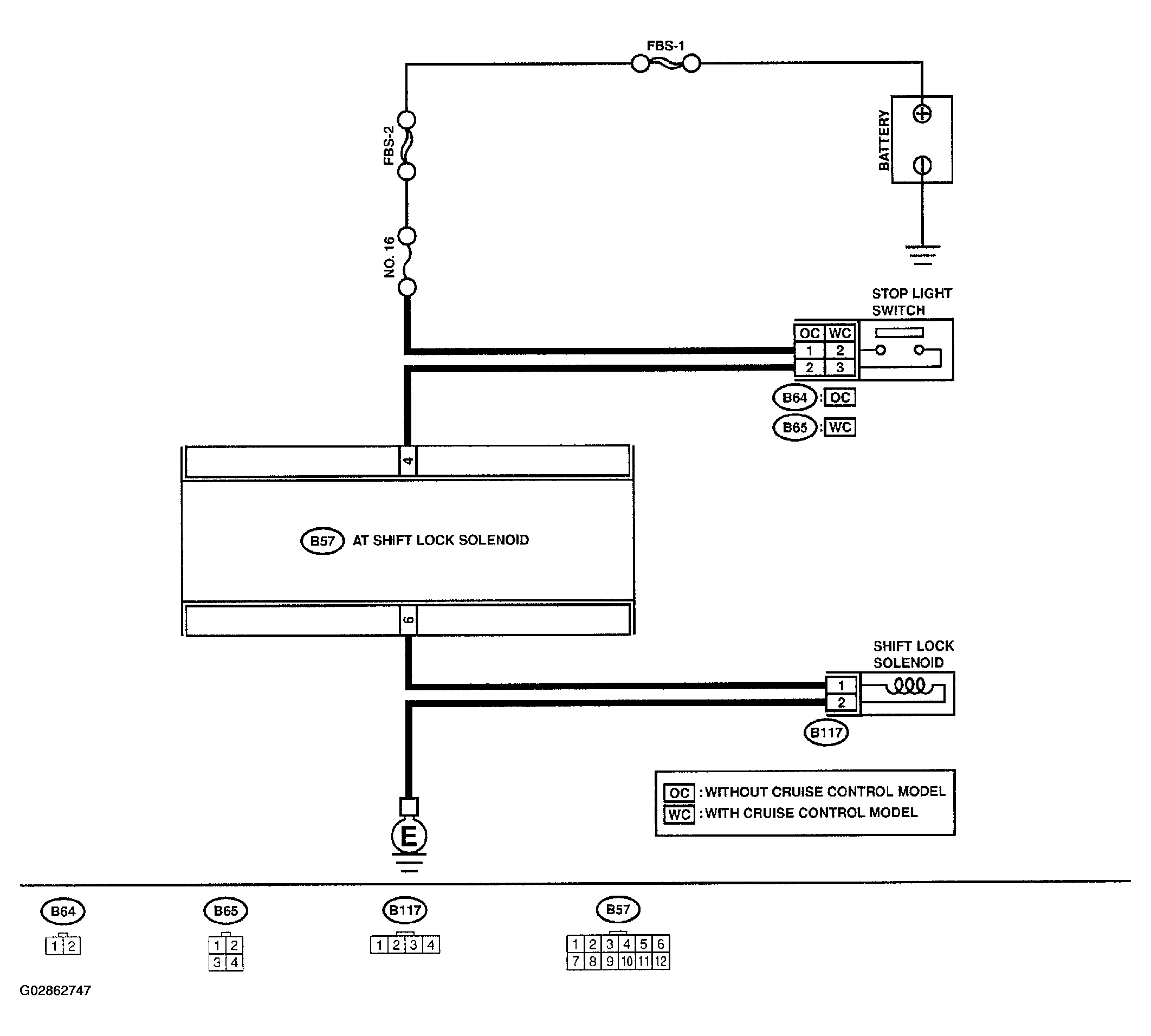

Fig 1: AT Shift Lock Solenoid Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

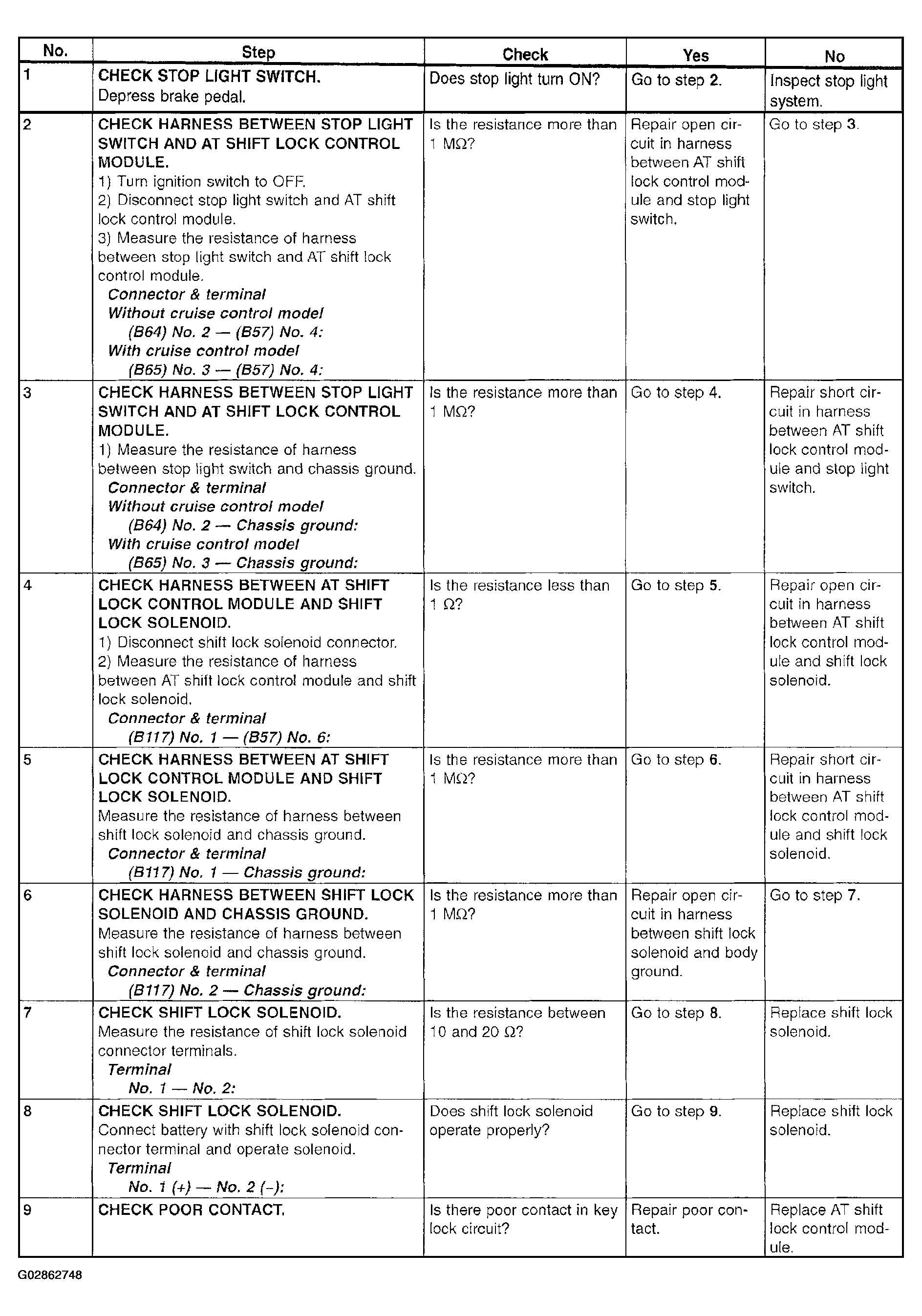

Fig 2: AT Shift Lock Solenoid Inspection Procedure Chart

Courtesy of SUBARU OF AMERICA, INC.
