Automatic Transmission (Diagnostics)
›
Diagnostic Procedure for Select Monitor Communication
›
Communication For Initializing Impossible
›
Diagnostic Procedures:
Diagnostic Procedures:

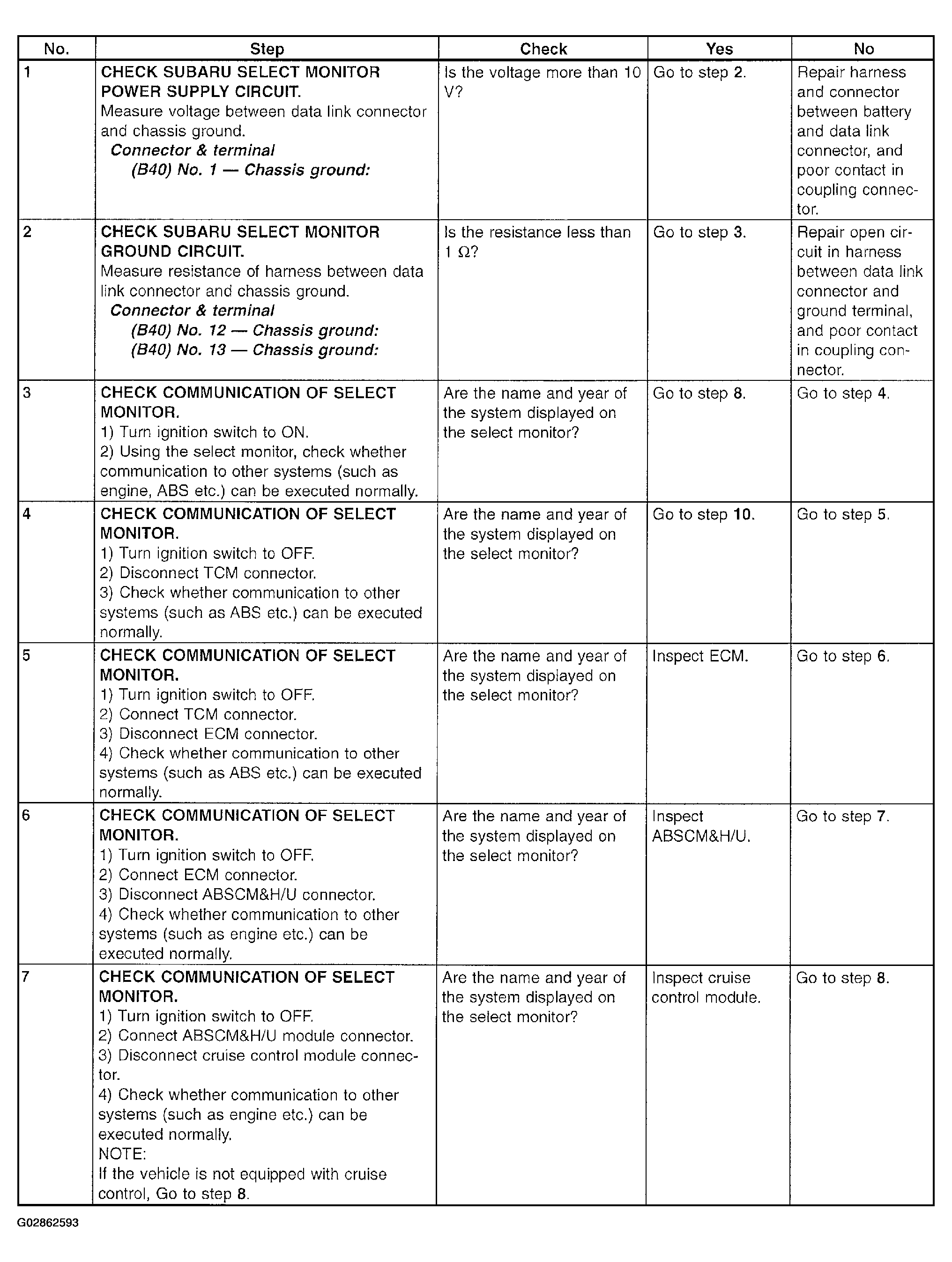

Fig 1: Communication For Initializing Impossible Diagnostic Procedure Chart (Steps 1-7)
Courtesy of SUBARU OF AMERICA, INC.

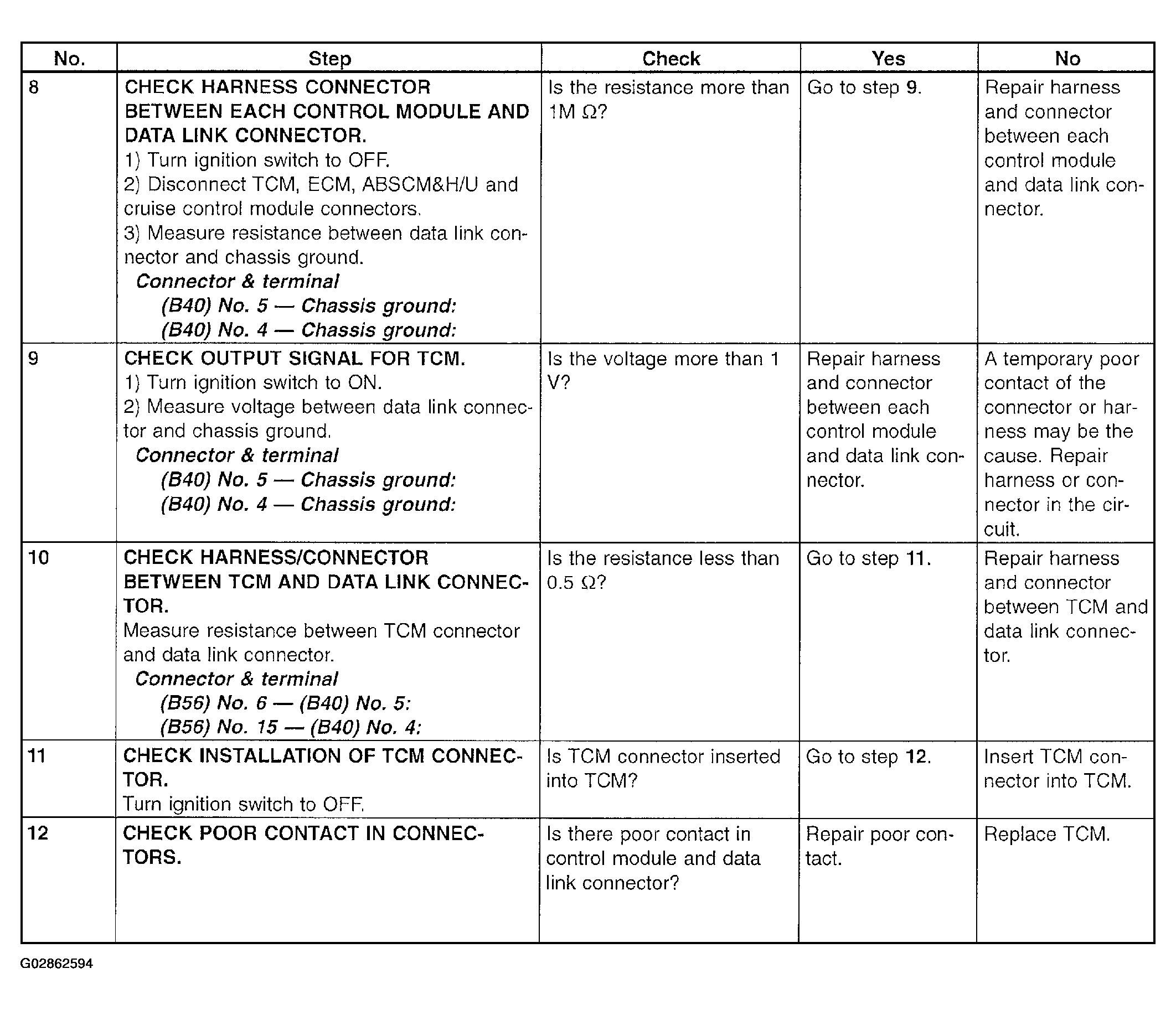

Fig 2: Communication For Initializing Impossible Diagnostic Procedure Chart (Steps 8-12)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
