Automatic Transmission (Diagnostics)
›
Transmission Control Module (TCM) I/O Signal
›
Electrical Specification
Electrical Specification

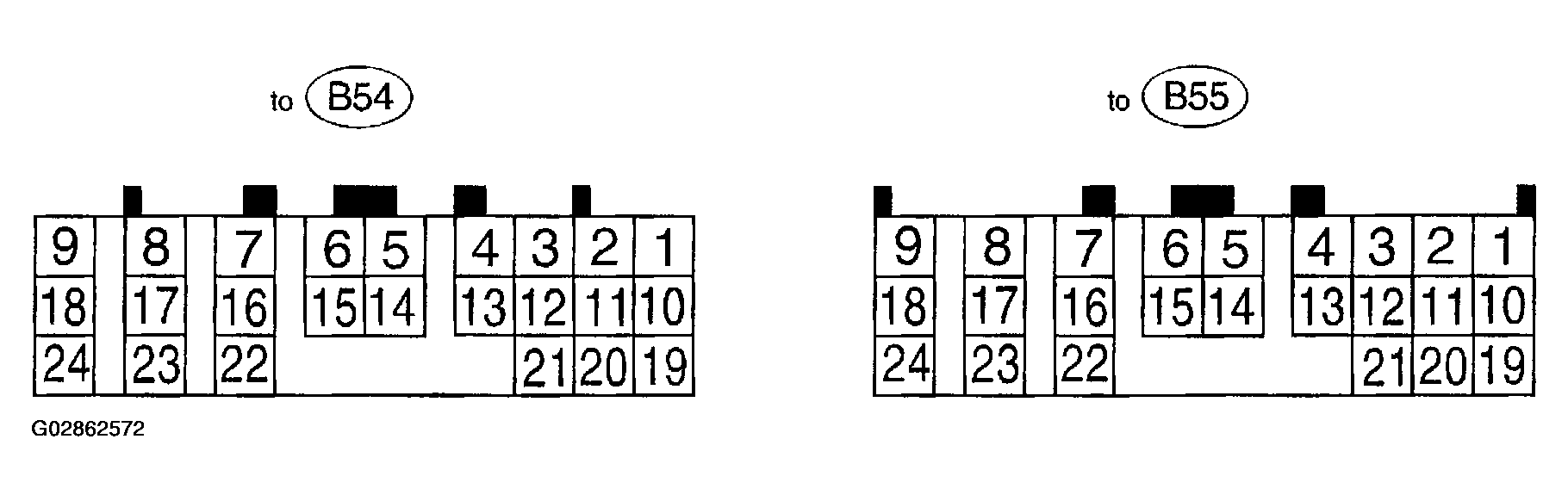

Fig 1: Identifying Transmission Control Module (TCM) I/O Signal Connector Terminals
Courtesy of SUBARU OF AMERICA, INC.

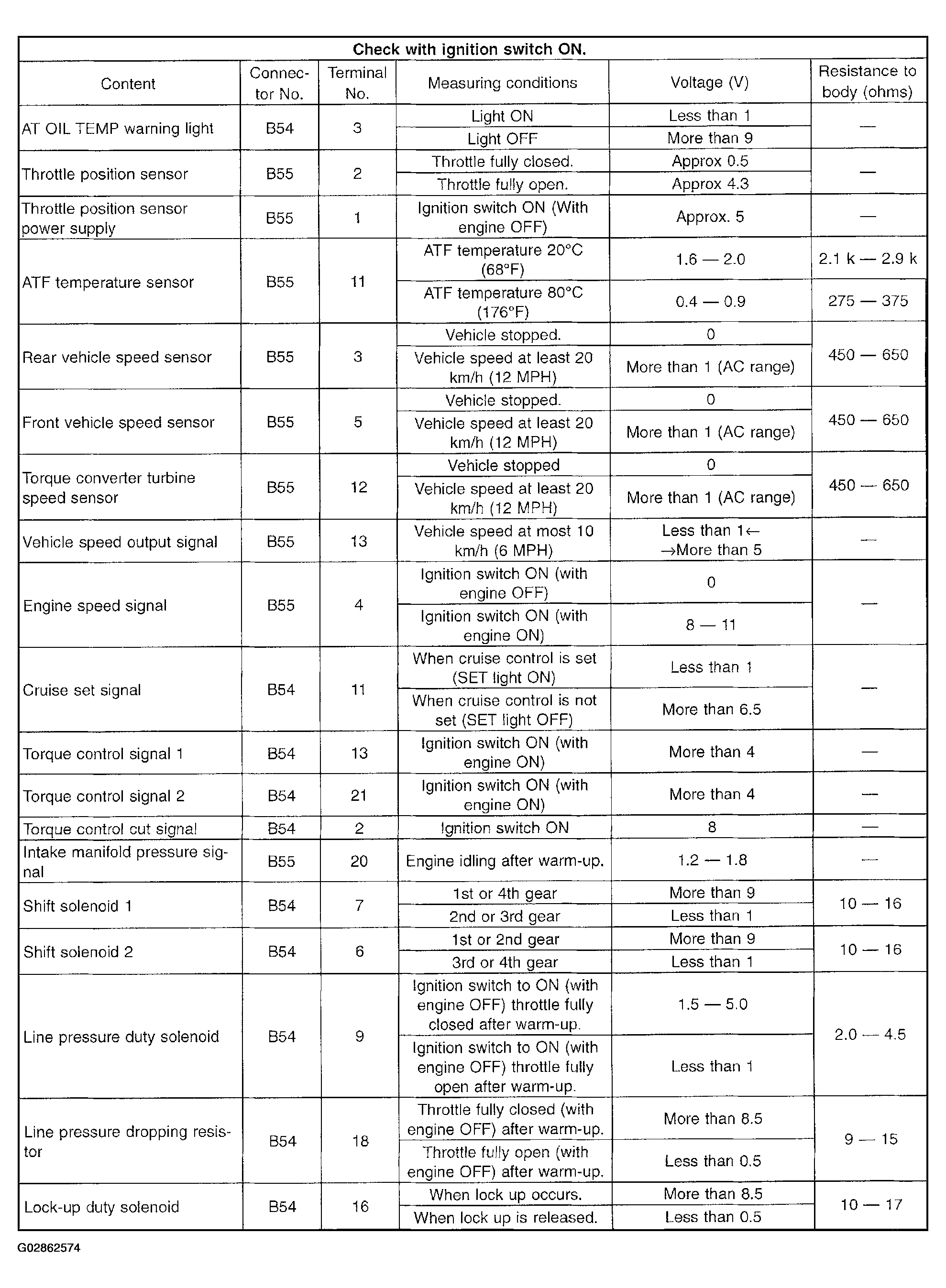

Fig 2: Transmission Control Module (TCM) I/O Signal Electrical Specification Chart (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

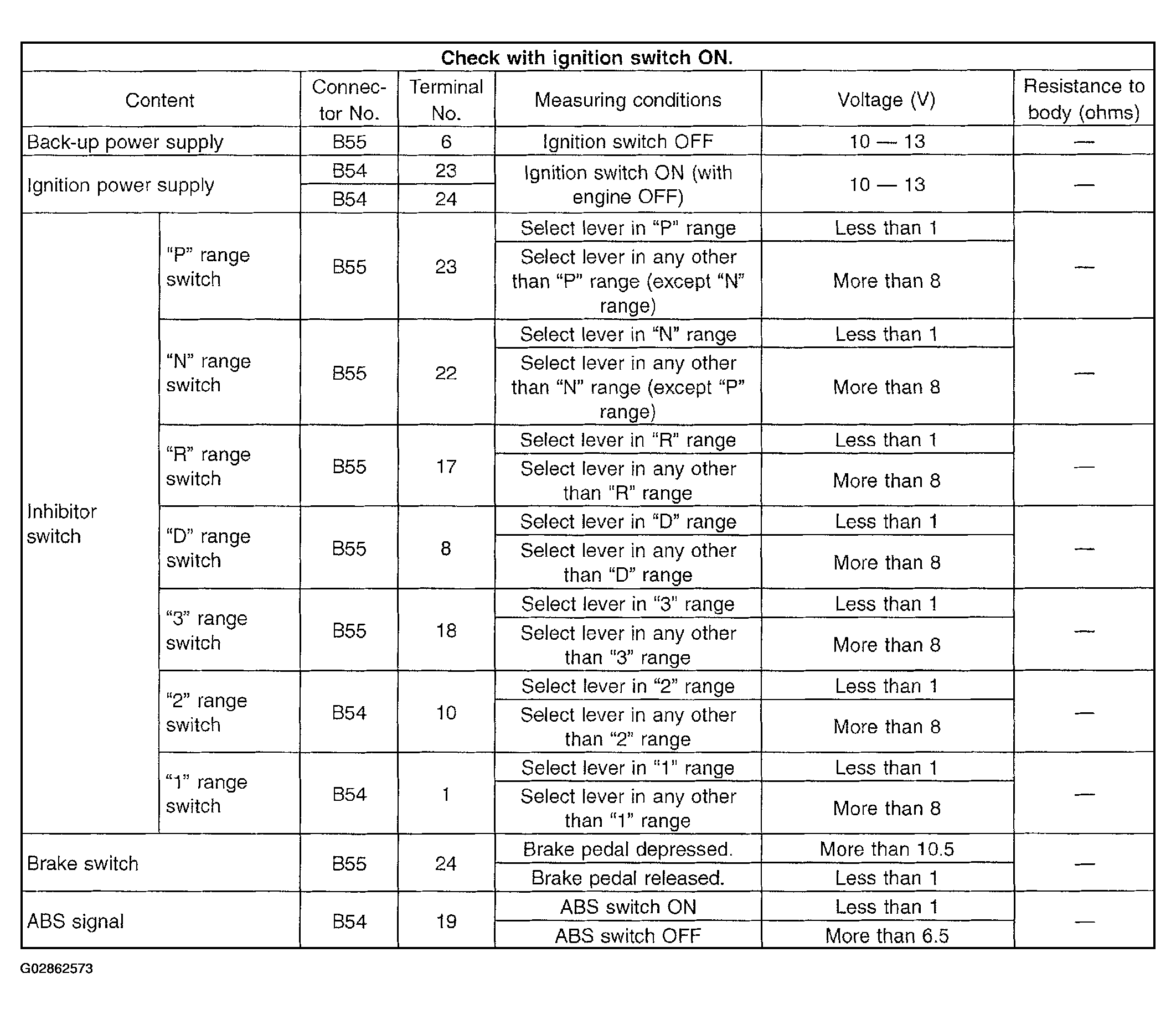

Fig 3: Transmission Control Module (TCM) I/O Signal Electrical Specification Chart (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

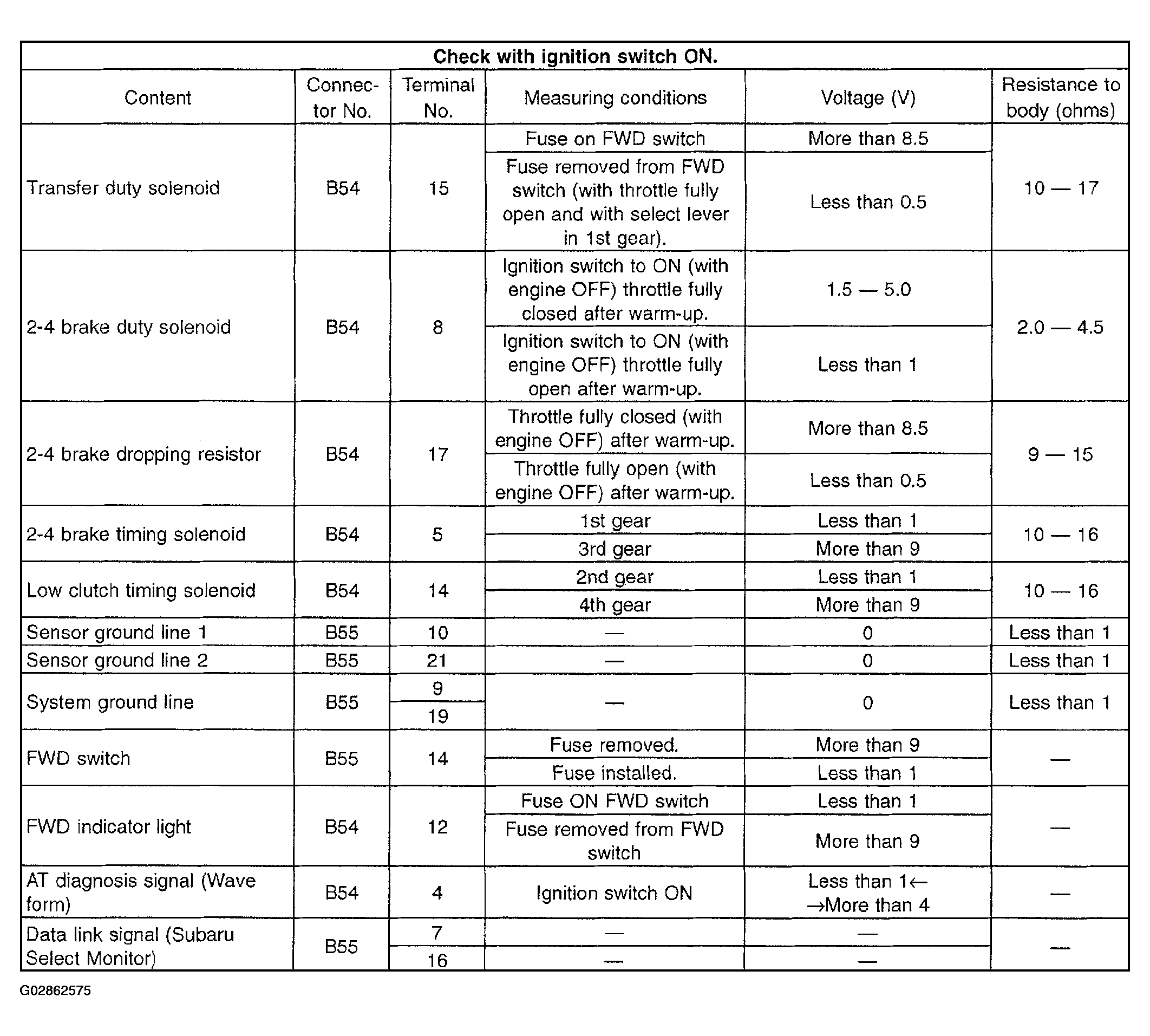

Fig 4: Transmission Control Module (TCM) I/O Signal Electrical Specification Chart (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
