Automatic Transmission (Diagnostics)
›
Transmission Control Module (TCM) I/O Signal
›
Schematic
Transmission Control Module (TCM) I/O Signal: Schematic

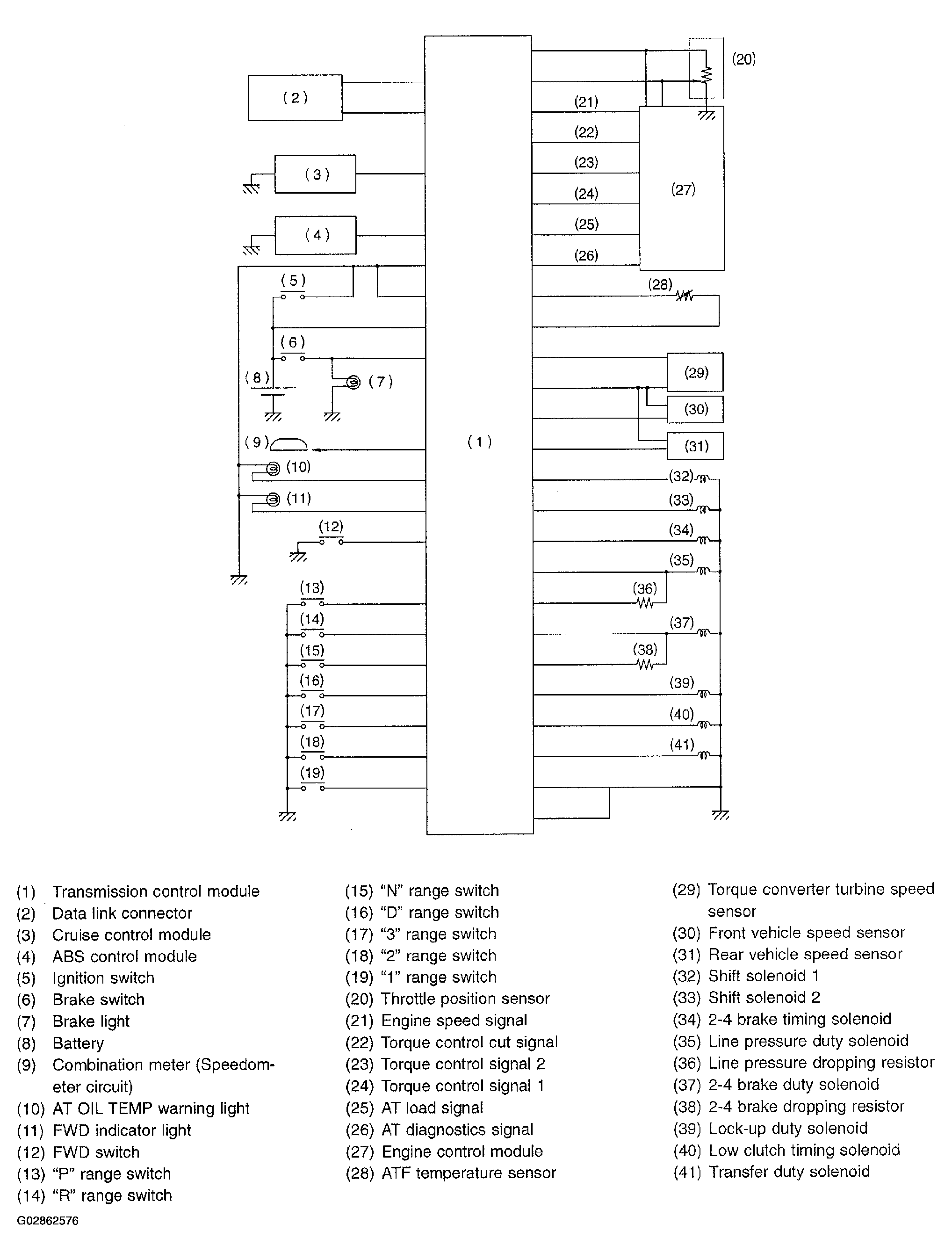

Fig 1: Transmission Control Module (TCM) I/O Signal Schematic Diagram
