AWD Transfer Clutch Control

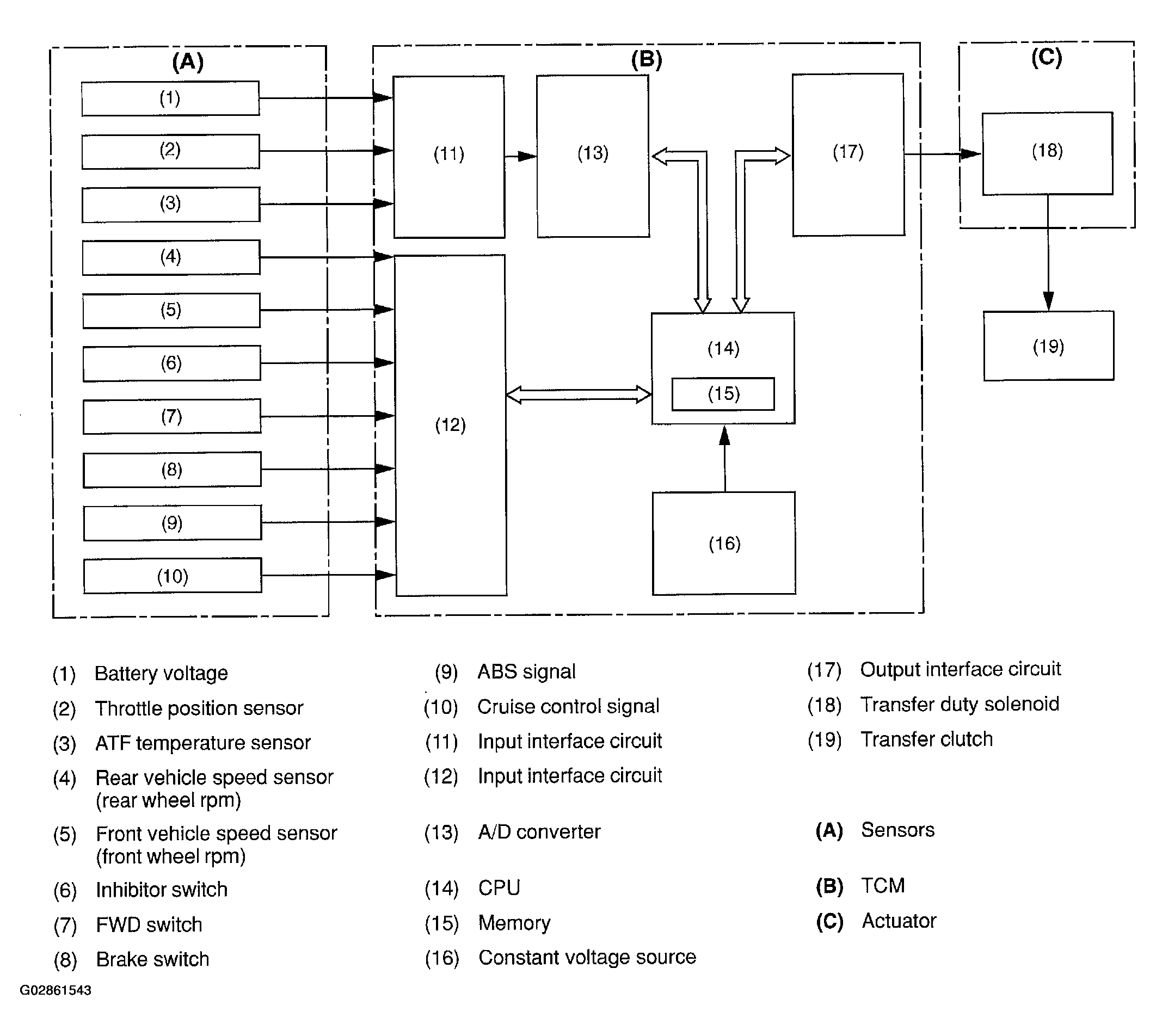

Fig 1: AWD Transfer Clutch Control Function (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

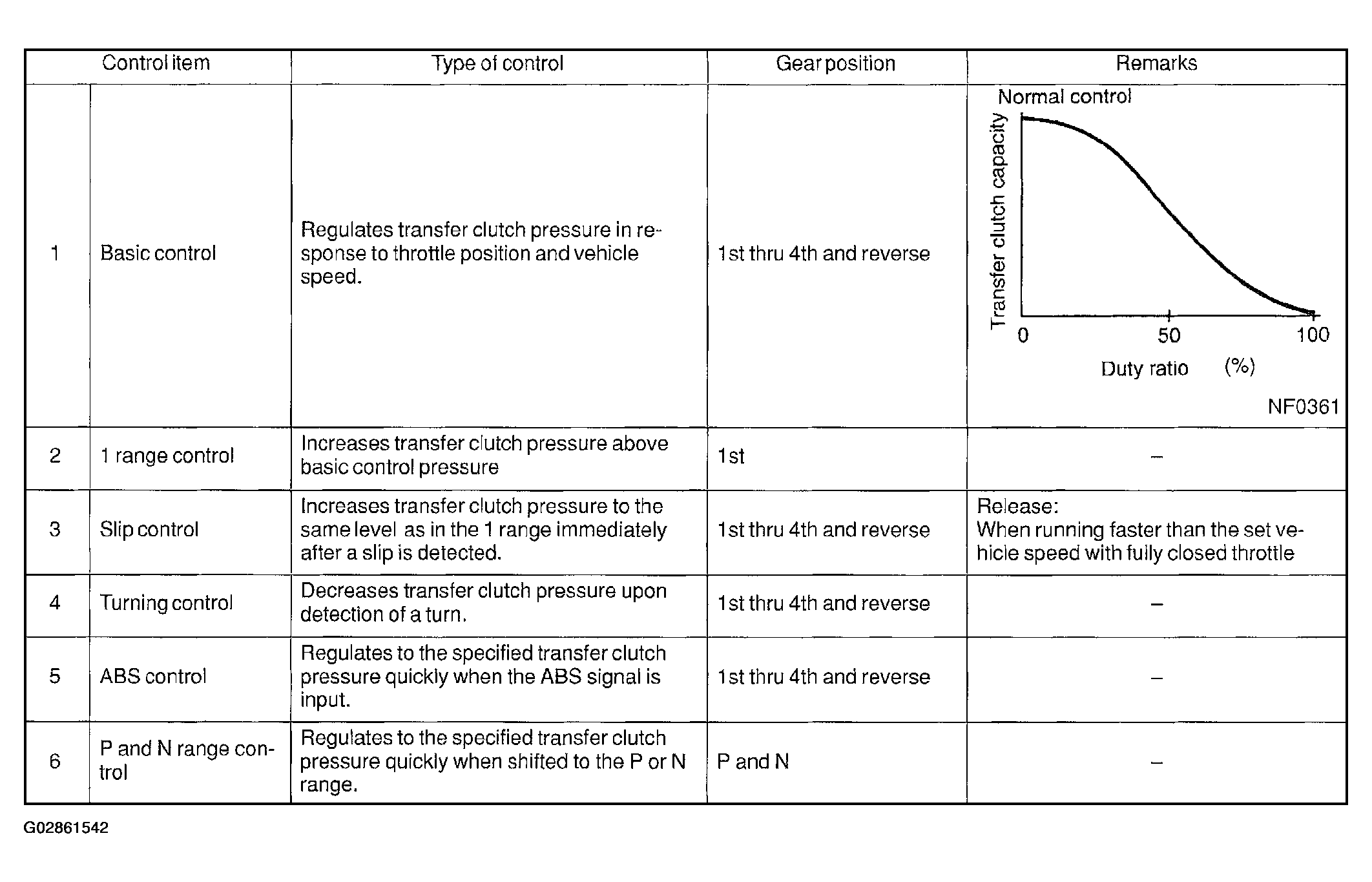

Fig 2: AWD Transfer Clutch Control Function (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
