Dropping Resistor: Removal

  1. Disconnect battery ground cable.

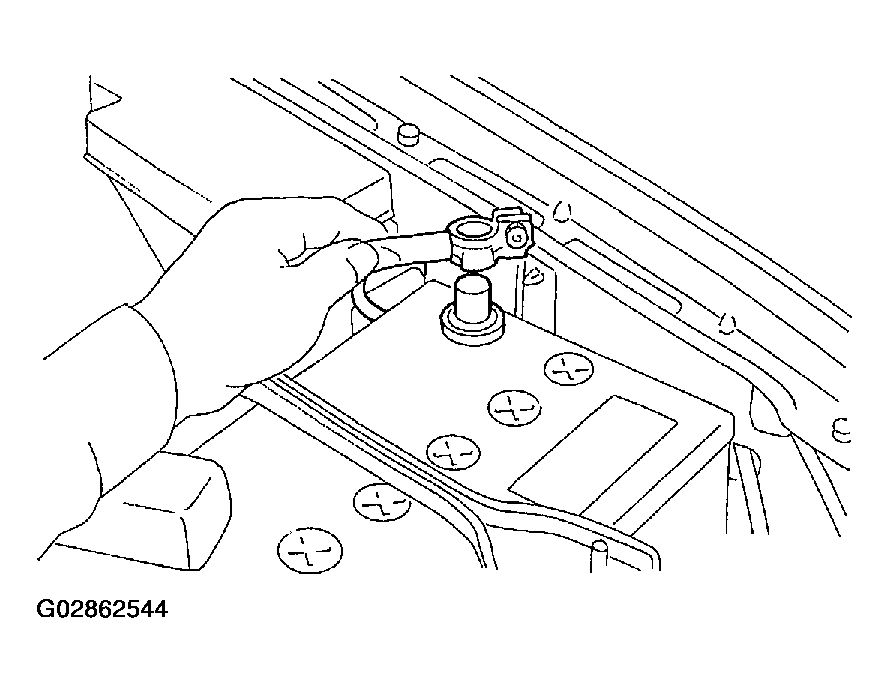

    Fig 1: Disconnecting Battery Ground Cable
    G02862544Courtesy of SUBARU OF AMERICA, INC.
  2. Remove air intake duct. Refer to REMOVAL under AIR INTAKE DUCT .
  3. Disconnect connector from dropping resistor.
  4. Remove dropping resistor.

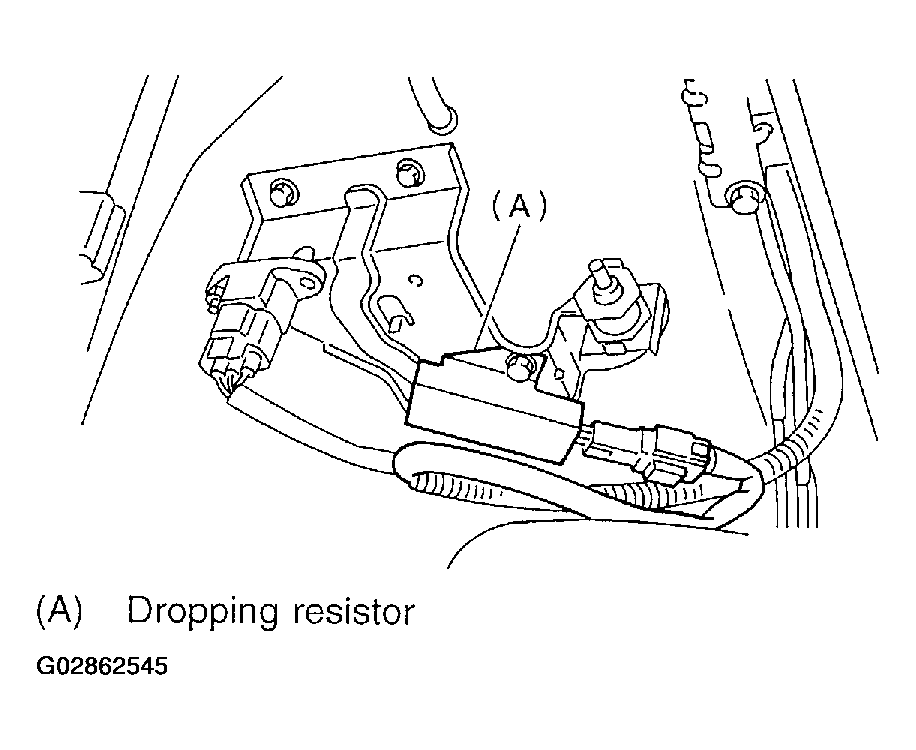

    Fig 2: Removing Dropping Resistor
    G02862545Courtesy of SUBARU OF AMERICA, INC.
