Test Methods

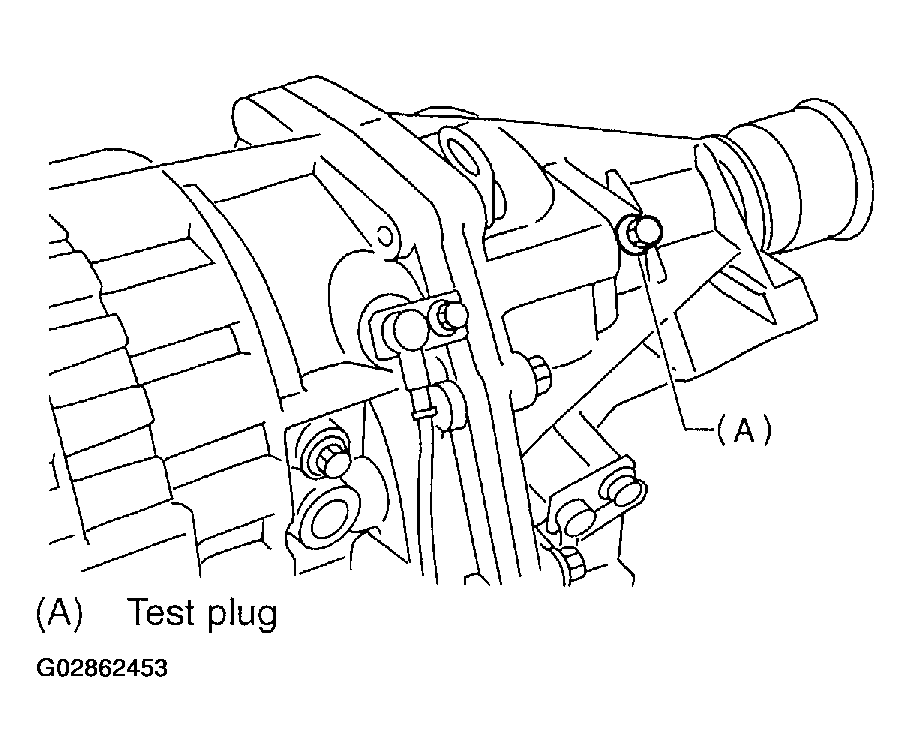

Check transfer clutch pressure in accordance with the following chart in the same manner as with line pressure. Refer toLINE PRESSURE TEST .
ST 498897700: OIL PRESSURE ADAPTER
SET ST 498575400: OIL PRESSURE GAUGE ASSEMBLY
AWD mode: "D" range
FWD mode: "P" range, engine speed 2,000 rpm
CAUTION:
Before setting in FWD mode, install spare fuse on FWD mode switch.
